Micro Coaxial Cable Applications in High-Speed Wiring for MIPI Cameras

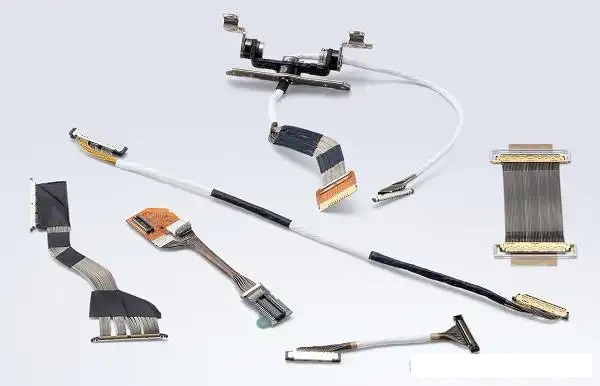

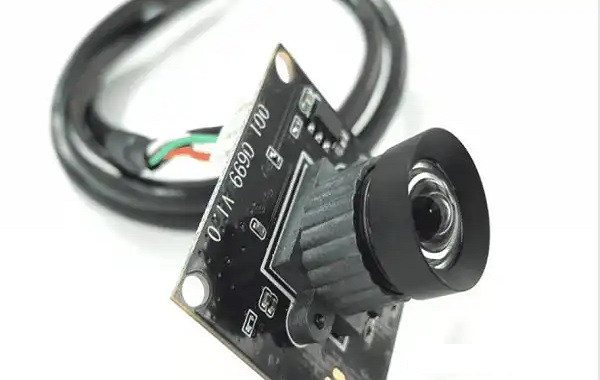

In the field of high-speed image transmission, the OmniVision OV9281 MIPI camera module has become a popular choice for applications such as machine vision, AR/VR equipment, and industrial testing, thanks to its global shutter technology and high-speed output at 1280×800 resolution. However, high-speed data transmission places extremely high requirements on wiring methods. Ensuring signal stability and clear images is a problem that design engineers must consider. In this scenario, extremely fine coaxial cable束 (Micro Coaxial Cable) has become a reliable solution with its excellent anti-interference performance and high-speed transmission capabilities.

---

Advantages of High-Speed Transmission of Ultra-Fine Coaxial Beam

Compared to traditional flexible ribbon cables, micro coaxial cable performs excellently in high-speed signal transmission. It has excellent shielding performance and anti-interference capability, which can effectively suppress signal attenuation and crosstalk, ensuring stable and clear image output under the MIPI interface for the OV9281. At the same time, the cable bundle is soft and the wiring is flexible, which can support long-distance data transmission and provide more design freedom for device layout. Reasonable selection of wire diameter, length, and interface coordination can give full play to the module performance.

---

Second, the wire length and interface design key points

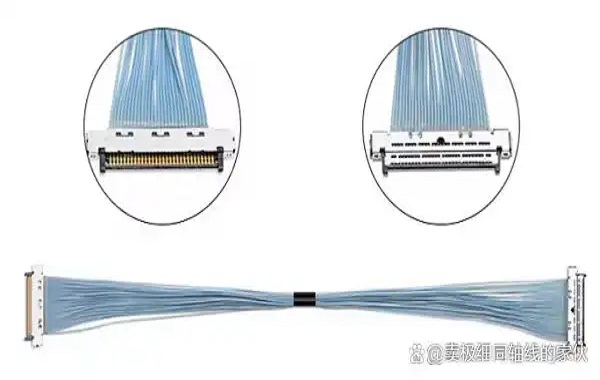

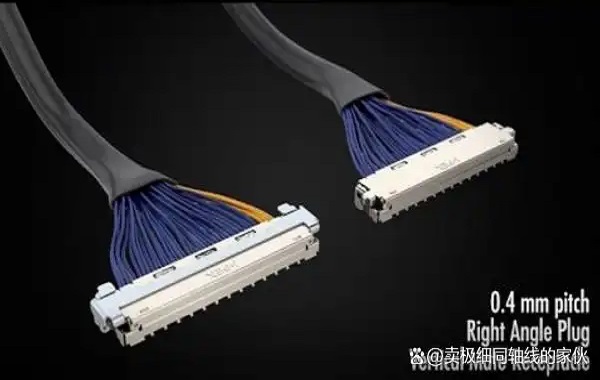

The OV9281 can achieve a bandwidth of several Gbps in MIPI 2-lane mode. Overly long wiring can easily lead to signal distortion, so the transmission distance of extremely thin coaxial cable bundles is usually recommended to be controlled within 750mm. For longer distances, relay boards or signal amplifiers can be used to extend the transmission while maintaining signal quality. In interface design, extremely thin coaxial cables are often used with micro I-PEX connectors. When installing, it is necessary to confirm that the module end and the motherboard end are aligned in the same direction to avoid reversal or damage to the device. In addition, reasonable shielding and grounding design is particularly crucial in complex environments, which can significantly reduce electromagnetic interference and ensure image stability in multi-module parallel applications.

---

Three, Mechanical Reliability and Long-Distance Application Strategies

micro coaxial cable The outer diameter is extremely small, soft but relatively fragile, so it needs to be avoided when routing to sharp angle bends and excessive pressure, maintaining sufficient bending radius and using flexible mounting clamps can effectively extend the service life of the cable assembly. In projects with long-distance transmission requirements, MIPI repeater (repeater module) can be used to extend the transmission distance to 1.5 meters or even further, especially suitable for large equipment volume or complex wiring scenarios. This strategy ensures the performance stability and reliability of the OV9281 module in high-speed image transmission.

---

The OmniVision OV9281 camera module performs excellently in high-speed image transmission, and the application of extremely thin coaxial cables provides a stable and reliable wiring guarantee. By reasonably controlling the wiring length, correctly installing the interfaces, optimizing the shielding grounding design, and paying attention to mechanical protection, engineers can maximize the performance of the module and ensure that the equipment outputs clear and stable images.
