As consumer electronic products develop towards thinness and portability, the design of tablet LCD display modules is constantly being optimized. The extremely thin coaxial cable束, as the core of signal transmission, is gradually replacing traditional ribbon cables and flat cables, becoming an important support for lightweight and ultra-thin design. It provides a guarantee for high-speed and stable display signal transmission.
The inevitable demand for lightweighting and ultra-thin design
Tablet LCD device design needs to take into account the screen display effect, battery life, and overall weight. Traditional signal lines have limitations in terms of thickness, flexibility, and anti-interference performance. On the other hand, ultra-fine coaxial cable bundles have small diameters, small bending radii, and excellent shielding performance. They can ensure signal integrity while significantly reducing the weight of the device, saving installation space, and providing reliable support for thin and light design.

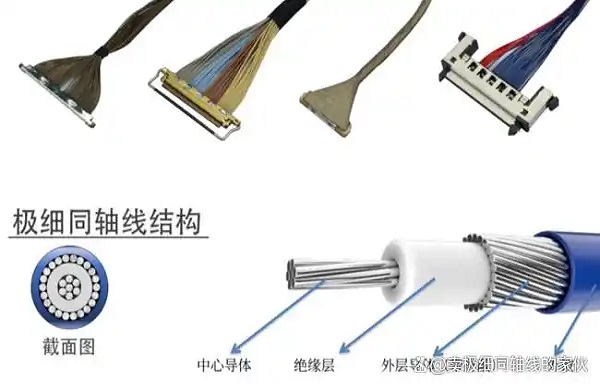

The core advantages of ultra-fine coaxial cable束
1. Strong high-speed transmission capability: Supports high-speed differential signal interfaces such as MIPI D-PHY and eDP, ensuring complete transmission of display data.
2. Flexible and reliable: Adaptable for wiring in confined spaces, while also boasting excellent mechanical strength and durability.
Effective electromagnetic interference reduction, enhancing display signal stability.
Ultra-thin features are prominent: the diameter of a single-core wire can reach the level of 0.2mm, significantly reducing the overall thickness of the machine.
Three, industry development trends facing the future
With the improvement of tablet display resolution and refresh rate, LCD modules have increasingly high requirements for signal transmission. In the future, ultra-fine coaxial cable bundles will focus on:
Smaller wire diameter and higher bandwidth coexist
Stable transmission of multi-channel high-speed signals
Environmental protection materials and recyclable design
Compatibility with flexible display and foldable structures
Extremely thin coaxial cable束 is not only a tool for thinning, but also the core technology support for signal transmission in future tablets and new display devices.
The LCD signal line束 is rapidly evolving in the direction of lightweighting and ultra-thinness, and the micro coaxial cable has become the core solution. With its high-speed transmission, excellent flexibility, excellent shielding, and ultra-thin characteristics, it provides a solid guarantee for the lightweight and high-performance of flat panels and new display products.
