I-PEX 83019-100B-01-D 32P high-speed signal transmission extremely thin coaxial cable replacement

How to achieve a "dual differential + power" combination for extremely thin coaxial cable束 from high-speed signal to power supply?

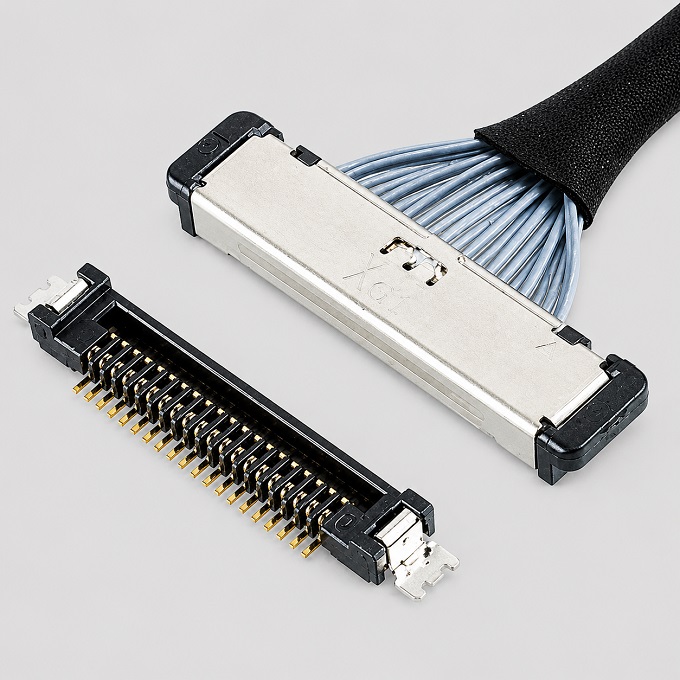

In laptops, tablets, ultra-thin display devices, camera modules, and high-integration consumer electronics, cables not only need to transmit high-speed data but also need to ensure power supply within limited structural spaces. Therefore, the composite cable design of "high-speed signal + power" is increasingly attracting engineers' attention. The so-called "dual differential + power combination" essentially involves, within the cable, a reasonable pin allocation of high-speed differential signal channels and power channels according to system interface definitions, and achieving good electrical isolation and stable transmission between signal channels through extremely fine coaxial structures. For high-speed differential signals, it is usually necessary to arrange positive and negative signals in pairs to better suppress external interference, while controlling cable impedance, insertion loss, return loss, crosstalk, and length consistency; the power channel, on the other hand, focuses more on current carrying capacity, temperature rise, voltage drop, and the rated current capacity of connector terminals. The I-PEX CABLINE-SS series adopts a 0.4 mm pitch, narrow structure, and can be matched with AWG40 Micro-Coaxial Cable. The official materials also list differential Signal Integrity test items, reflecting its design direction for high-speed signal applications. For devices that need to complete the combination of high-speed data and power supply in narrow spaces, such ultra-fine coaxial cables can help engineers achieve a balance between "space, signal integrity, reliable connection, and manufacturing feasibility."

I-PEX 83019-100B-01-D: Engineering Application Value of AWG40 Ultra-Fine Coaxial Cable Assembly

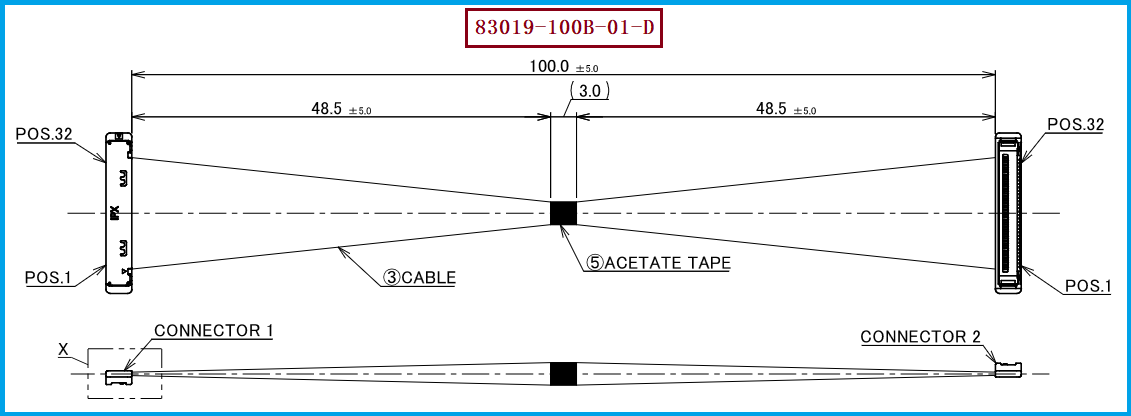

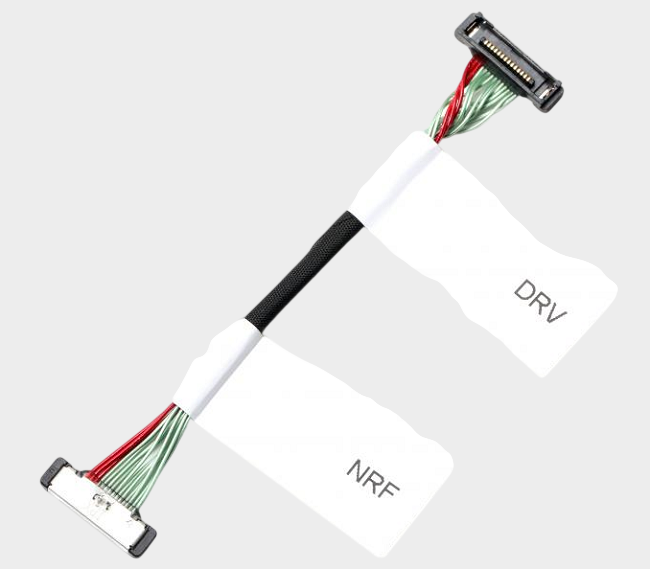

The product model introduced this time is I-PEX 83019-100B-01-D, which belongs to the CABLINE-SS 32Pin ultra-thin coaxial cable solution, with a cable length of 100MM. The cable material uses Micro-Coaxial Cable AWG #40, and the cable end connector model is 20373-R32T-06. From the perspective of engineering applications, AWG #40 is a very thin coaxial cable specification, which can help to further compress the cable space occupied by the whole machine design while meeting the requirements of high-speed signal transmission, making it particularly suitable for electronic products that are sensitive to thickness, pivot space, internal routing space, and weight. The high-speed test conditions recorded in the uploaded materials use 40Pin, AWG #40, 45Ω, and 100mm cables, and are tested in the GSSGSSG mode; while the specific PDF drawings of the target product 83019-100B-01-D mark the cable material as AWG #40, 50Ω. Therefore, engineers should use the specific cable structure, system interface impedance, and complete link SI test results as the final judgment basis when importing actual projects, rather than judging whether it meets the system requirements solely based on the "4K" or "high-speed" labels. At the same time, when purchasing personnel are carrying out alternative selection, they should also focus on confirming key conditions such as the 32Pin structure, 20373-R32T-06 connector, AWG #40 cable material, 100MM length, Pin-to-Pin definition, and termination process, in order to avoid compatibility risks caused by purchasing solely based on appearance or connector model. The official materials of I-PEX also explicitly list 20373-R32T-06 as the CABLINE-SS 32Pin Plug Housing, and explain that this model can correspond to Micro-Coaxial Cable AWG40, AWG36, and other specifications.

Section 3: Selection, Compatibility, and Alternative Solutions Reference and Recommendations

For engineers, the replacement of extremely fine coaxial cable assemblies is not simply about achieving "the connector can be plugged in," but requires considering mechanical dimensions, electrical performance, and termination reliability simultaneously. When referring to the I-PEX 83019-100B-01-D for compatibility replacement, it is recommended to prioritize locking the 32Pin architecture and confirming each item, including the 20373-R32T-06 connector, AWG #40 Micro-Coaxial Cable, 100MM cable length, Pin definition, impedance, differential pair arrangement, and power Pin configuration; if the "dual differential + power" in the project belongs to a specific interface definition, it should also be further confirmed according to the customer's motherboard terminal Pin Map whether the differential pairs are continuous, the P/N polarity is correct, and whether the power channel meets the actual working current and temperature rise requirements. The I-PEX official data shows that the CABLINE-SS series provides a variety of Pin numbers such as 10, 14, 20, 30, 32, 35, 40, 50 Pins, and simultaneously supports AWG40 Micro-Coaxial Cable, and provides different specifications of Plug Housing, Metal Cover, and Receptacle options. Therefore, when making changes to projects, domestic replacement, or supply chain optimization, customization matching can be carried out around Pin numbers, wire diameter, cable length, wire direction, and connector matching. Our company can provide: I-PEX 83019-100B-01-D compatible replacement cable assembly solutions. According to the customer's actual product structure and technical requirements, we can match the AWG #40 ultra-fine coaxial wire material, 100MM cable length, 32Pin termination scheme, and the combination of high-speed differential signals and power. We can also further cooperate with engineering verification, sample production, and mass production to provide engineers with feasible compatibility replacement options and offer more flexible supply chain solutions for purchasing personnel.

How to judge whether the ultra-fine coaxial cable bundle alternative solution is truly available from sample verification to bulk procurement?

For high-speed electronic devices, determining whether a very fine coaxial cable assembly can replace the target product ultimately returns to "actual system verification." Especially when the cable assembly is responsible for dual differential high-speed signals and power combination, it is recommended to verify the connector mechanical fit, cable assembly size, and bending path during the sample stage. Use TDR, Insertion Loss, Return Loss, and Crosstalk, etc., to confirm the performance of the high-speed channel, and combine this with the current, temperature rise, and voltage drop of the power channel for a comprehensive evaluation. It should be particularly noted that 4K itself is just an image resolution and does not correspond to a unique cable speed requirement. The actual demand depends on the specific transmission interface, refresh rate, color depth, encoding method, and system architecture. Therefore, engineers should not simply understand "4K must use a certain AWG specification" when selecting cables. For purchasers, it is recommended to use I-PEX 83019-100B-01-D, 20373-R32T-06, AWG #40, 100MM, 32Pin, pin definition, and key electrical specifications as the basic confirmation conditions for alternative solutions during the quotation and supplier introduction stage. Then, combine this with the sample test results for final selection. This can both reduce the risk of alternative material introduction and facilitate the formation of a stable bulk supply in the future. The I-PEX official CABLINE-SS documentation currently provides high-speed transmission and differential Signal Integrity related information, and lists V-by-One US, HDMI 2.1, USB 3.2 Gen 2, eDP, etc., as reference application standards. However, these are the reference capabilities of the connector series, and actual projects should still be confirmed based on specific cables, systems, and test results.

The value of extremely thin coaxial cable assemblies lies not only in "being thinner" but also in the ability to simultaneously achieve high-speed differential signal transmission, stable power supply, reliable connection, and manufacturability within limited space. Referring to the I-PEX 83019-100B-01-D, a 32-pin, AWG #40, 100MM extremely thin coaxial cable assembly solution is suitable for electronic product designs with high requirements for space, high-speed signals, and cable assembly integration. For customers who are engaged in domestic substitution, second supplier introduction, cost optimization, or supply chain risk control, our company can provide compatible alternative cable assembly solutions for I-PEX 83019-100B-01-D, matching development around the 20373-R32T-06 connector and AWG #40 extremely thin coaxial cable material, and provide sample verification and mass production support according to the actual application needs of customers, helping engineers to complete the solution verification faster, and also helping purchasers establish a more stable and flexible supply channel for extremely thin coaxial cable assemblies.

I am[7A Electronic Network]If you need to select, purchase, develop, or find alternative solutions for extremely fine coaxial cable assemblies, please feel free to contact Manager Zhang at any time:18913228573 (WeChat number).
