Medical-grade ultra-fine coaxial cable assembly: Ensuring high-speed and stable transmission

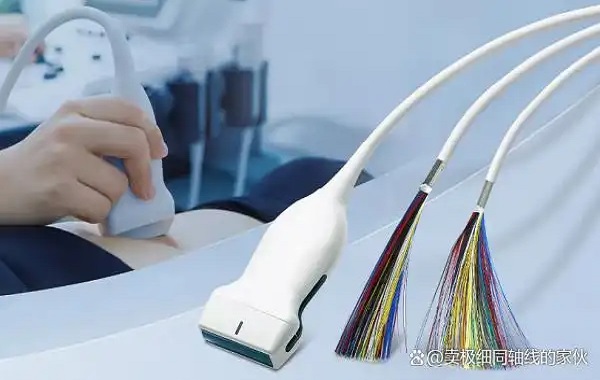

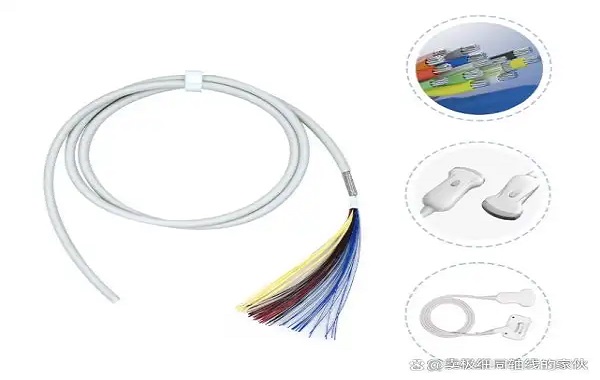

In medical imaging equipment, minimally invasive surgical instruments, and portable monitoring devices, the speed and reliability of data transmission directly affect the accuracy of diagnosis and treatment. Medical-grade ultra-fine coaxial cable harnesses are specifically designed for high-frequency signal transmission, flexible wiring, and long-term reliability, and are the core components ensuring the stable operation of medical equipment.

---

One, high-quality materials ensure signal stability and durability.

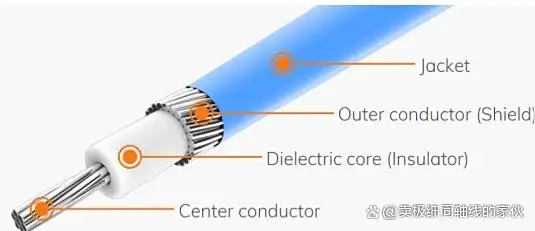

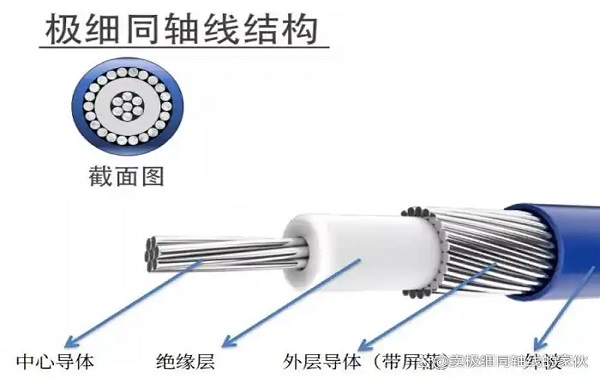

Medical-grade ultra-fine coaxial cable bundles usually use silver-plated or tin-plated copper conductors to ensure excellent conductivity and antioxidant capability. The insulation layer is made of low dielectric constant, low-loss FEP or PTFE materials, which not only reduces signal attenuation but also withstands sterilization and cleaning requirements in medical environments, providing a stable guarantee for high-frequency signal transmission.

---

Second, precision engineering enhances flexibility and bending resistance.

The inner conductor diameter is less than 0.1mm, which requires high-precision wire drawing and twisting processes to enhance flexibility and bending fatigue life. Medical-grade wires can withstand tens of thousands of bends without breaking, meeting the long-term use requirements of minimally invasive surgical instruments and wearable monitoring devices in complex environments.

---

III. Shielding and connection technology to ensure reliable transmission

The multi-layer shielding design (silver-plated copper woven layer + aluminum foil composite layer) effectively reduces electromagnetic interference, ensuring clear and stable image and data transmission. The harness shaping and port connection use high-precision miniature connectors, and stability is enhanced through welding, crimping, or laser welding technology. In addition, the entire production process is completed in a clean room, and it undergoes bending resistance, tensile resistance, shielding performance, and insulation withstand voltage tests to ensure long-term reliability.

---

Medical-grade ultra-fine coaxial cable bundles are not only "channels" for high-frequency signal transmission, but also a crucial guarantee for the clarity of images and stability of signals in medical equipment. The integration of materials science, precise craftsmanship, and strict quality control ensures that each cable bundle can operate stably for a long time in high-demand medical environments.

I amSuzhou Huichengyuan Electronic TechnologyLong-term focus on the design and customization of high-speed signal cables and ultra-fine coaxial cables, committed to providing stable and reliable high-speed interconnect solutions. For more information or customization, please contact us.Manager Yin: 18913280527 (WeChat number same)。
