 | Manufacturer | JAE |
| Manufacturer Part Number | MA01F120VABBR300 | |

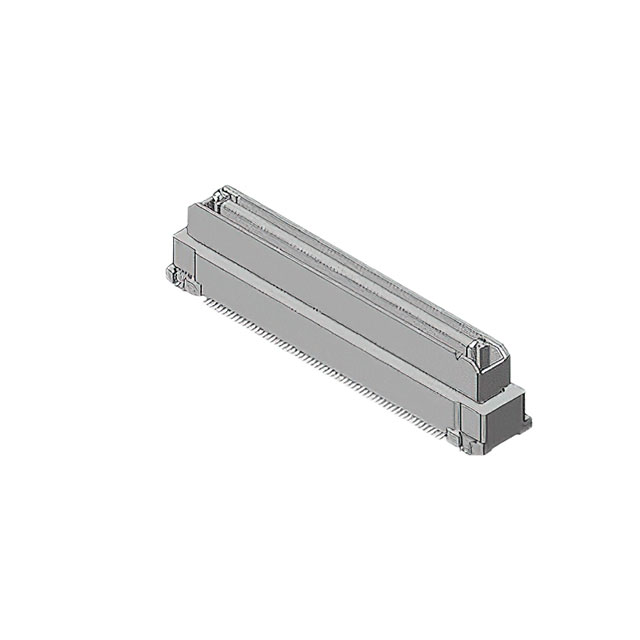

| Product Description | CONN FLOATING SIDE STR 120 POS,120 Position Connector Plug, Central Contact with Surface Mount Gold Plating |
JAE MA01F120VABBR300 connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (plate-to-plate) | |
| Manufacturer | JAE Electronics |
| Series | MA01 |
| Packaging | Coil (TR) |
| Cone Beam Computed Tomography (CBCT) | |
| Connector type | Plug, central contact with |
| Needle count | 120 |
| Spacing | 0.025"（0.64mm） |
| Row number | 2 |
| Installation Type | Surface Mount Technology |
| Characteristics | Guideway, fixed weld end |
| Touch head surface treatment | Gold plated |
| Touch surface treatment thickness | 4.00µin（0.100µm） |
| Combined stacking height | 14mm，16mm，24mm |
| Board height | 0.484"（12.29mm） |
Introduction to JAE MA01F120VABBR300 connector product (series):
The MA01 series from JAE Electronics is a high-performance rectangular board-to-board connector, designed specifically for compact electronic devices. The connector is of plug type, featuring a central contact with a structure, and has 120 pin positions in a double-row design with a pin pitch of 0.64mm, suitable for high-density PCB requirements. Its surface mount installation method, combined with board guide and fixed welding tail design, ensures stable and reliable connections. The MA01 series supports various mating stack heights, including 14mm, 16mm, and 24mm, with a board height of 12.29mm, suitable for efficient connections between multi-layer boards. The contact part is gold-plated with a thickness of 4.00µin (0.100µm), providing excellent conductivity and corrosion resistance, suitable for high-speed signal transmission applications. The product is available in reel (TR) or cut tape (CT) packaging, convenient for automated mounting, and is an ideal connection solution for communication equipment, industrial control, and consumer electronics fields.
