 | Manufacturer | JAE |
| Manufacturer Part Number | MA01R100VANBR200 | |

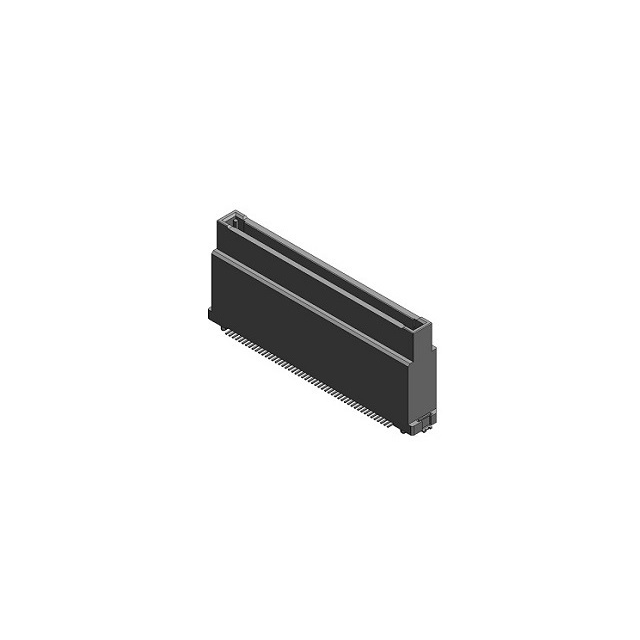

| Product Description | CONN RIGID SIDE STR 100 POS,100 Position Connector Socket, Shell Contact Surface Mounting Type Gold Plated |
JAE MA01R100VANBR200 connector product attributes:
| Type | describe |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (board-to-board) | |
| Manufacturer | JAE Electronics |
| Series | MA01 |
| Packaging | Coil (TR) |
| Cutter Tape (CT) | |
| Digi-Reel® Get-eagle Custom Coils | |
| Connector type | Socket, outer contact point |
| Needle count | 100 |
| Spacing | 0.025"（0.64mm） |
| row number | 2 |
| Installation Type | Surface Mount Technology |
| Feature | Bearing guide rail |
| Touch head surface treatment | Gilded |
| Contact surface treatment thickness | 4.00µin（0.100µm） |
| Combined stacking height | 24mm |
| board height | 0.654"（16.60mm） |
JAE MA01R100VANBR200 connector product (series) introduction:
JAE Electronics' MA01 series is a high-density rectangular board-to-board connector suitable for various high-performance electronic devices. The product is of socket type, featuring an outer shell contact design, with 100 pins, double-row layout, pin spacing of 0.64mm, and supports surface mount installation methods, suitable for high-density circuit board connection requirements. Its board guide structure enhances the stability and positioning accuracy of the connection, ensuring reliable assembly. The mating stack height is 24mm, and the board height is 16.60mm, suitable for multi-layer circuit designs with limited structural space. The contact part is gold plated with a thickness of 4.00µin (0.100µm), providing excellent electrical conductivity and corrosion resistance, suitable for high-speed signal transmission environments. This series of products offers reel (TR), cut tape (CT), and Digi-Reel® customized reel packaging, facilitating automated production and is an ideal connector solution for communication equipment, industrial control systems, and consumer electronics fields.
