Categorization：Brand Connector
 | Manufacturer | JAE |
| Manufacturer Part Number | MA01F090VACBR150 | |

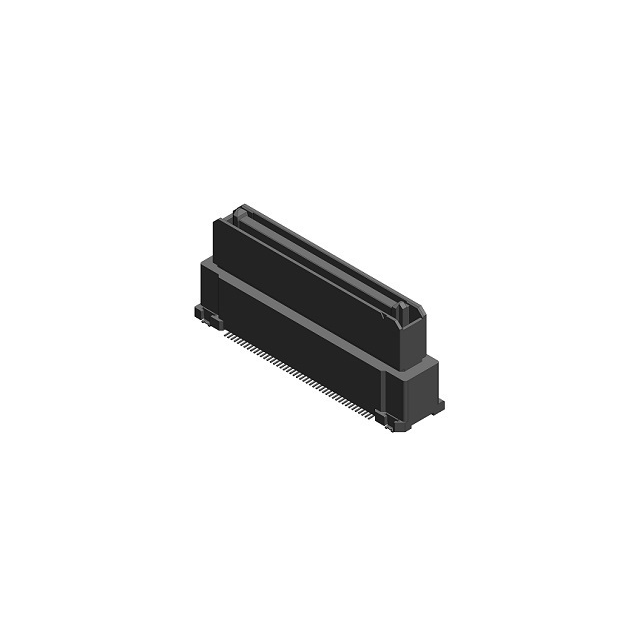

| Product Description | CONN FLOATING SIDE STR 90 POS,90 LOCATOR CONNECTOR PLUG, CENTRAL CONTACT WITH SURFACE MOUNT GOLD PLATING |
JAE MA01F090VACBR150 connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (board-to-board) | |
| Manufacturer | JAE Electronics |
| Series | MA01 |
| Packaging | Coil (TR) |
| Shear Test (CT) | |
| Digi-Reel® Get Reel Custom Reel | |
| Connector type | Plug, central contact with |
| Needle count | 90 |
| Spacing | 0.025"（0.64mm） |
| Number of rows | 2 |
| Installation type | Surface Mount Technology |
| Feature | Guide rail |
| Touch surface treatment | Gold plated |
| Touch point surface treatment thickness | 4.00µin（0.100µm） |
| Combined stacking height | 30mm |
| Board height | 0.720"（18.30mm） |
JAE MA01F090VACBR150 connector product (series) introduction:
JAE Electronics' MA01 series is a rectangular board-to-board connector designed for high-density, high-performance applications. This model is a plug type with a central contact with structure, featuring 90 pin positions, a double-row design, and a pin pitch of 0.64mm. It is suitable for electronic devices with limited space and high requirements for signal integrity. The connector supports surface mount installation and is equipped with a board guide design, effectively improving assembly accuracy and connection stability. The product's mating stack height is 30mm, and the board height is 18.30mm, making it suitable for multi-layer circuit board structures. The contact part is gold plated with a thickness of 4.00µin (0.100µm), enhancing conductivity and corrosion resistance, and meeting the requirements for high-speed data transmission. This series offers various packaging forms including reel (TR), cut tape (CT), and Digi-Reel custom reels, adapting to automated production processes and being an ideal connection solution for communication, industrial control, medical equipment, and other fields.
JAE MA01F090VACBR150 Connector Documentation and Media:
| Resource type | Link |
| Specification sheet | Please contact the person listed at the bottom of the article for more information. |
JAE MA01F090VACBR150 connector genuine | alternative product related information:
We focus on the现货 supply of (JAE) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine and high-performance alternatives, rigorously tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
