Categorization：Brand Connector

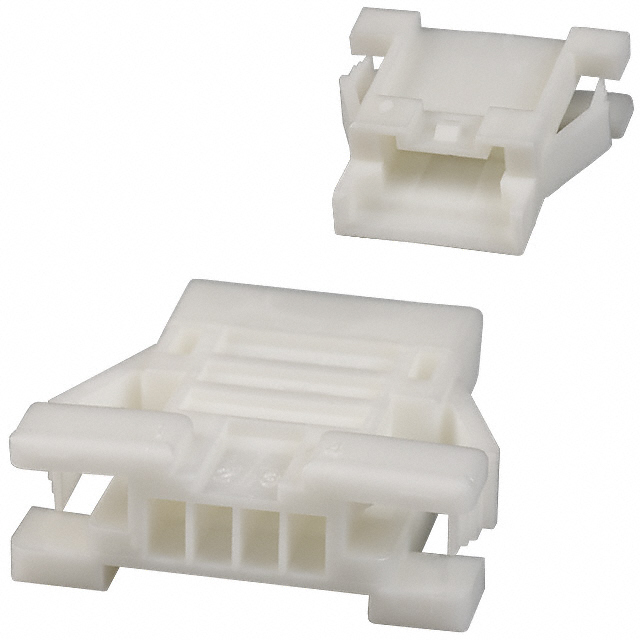

JST connector - providing product overview of JST PALR-04V connector
 | Manufacturer | JST |
| Manufacturer Part Number | PALR-04V | |
| Product Description | CONN PLUG HSG 4POS 2.00MM, 4 rectangular connector - Shell plug natural 0.079" (2.00mm) |
JST Connector - Provide product attributes of JST PALR-04V connector
| Type | Describe |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | JST Sales America Inc. |
| Series | PA |
| Connector type | Plug |
| Contact type | Public shape pin |
| Needle count | 4 |
| Spacing | 0.079"（2.00mm） |
| Row number | 1 |
| Spacing | - |
| Installation Type | Panel installation, snap-in type |
| Touch end connector | Pressing |
| Type of fastener | Lock bolt slider track |
| Color | Natural |
| Feature | - |
| Insulating material | Polyamide (PA66), Nylon 6/6 |
| Operating temperature | -25°C ~ 85°C |
| Please provide the text you would like to be translated. | Without contact tips |
JST connector - Provide JST PALR-04V connector product (series) introduction:
JST PALR-04V is a rectangular connector housing introduced by JST Sales America Inc., belonging to the PA series, and is designed for high-density, compact connection applications. The connector is a 4-position single row plug type with a pitch of 2.00mm (0.079"), using a male pin configuration, and is suitable for signal transmission in precision electronic equipment.
PALR-04V supports crimp terminal connections, facilitating rapid assembly. It employs a panel-mounted, snap-in design, combined with a locking pin slide structure to ensure a firm and reliable connection, suitable for frequent plugging and unplugging. The housing is made of natural-colored polyamide (nylon 6/6) material, offering excellent insulation and heat resistance, and can operate stably within a working temperature range of -25°C to 85°C. This product is available without contacts, allowing users to flexibly select and match contacts according to application requirements. PALR-04V is widely used in industrial control, household appliances, communication equipment, and other fields, providing a high-reliability and high-efficiency connection solution.
JST connector - Providing JST PALR-04V connector documentation and media:
| Resource type | Link |
| Specification Sheet | PA-F Series Datasheet |
JST connector - Provides genuine JST PALR-04V connector and alternative product related information:
We focus on the stock supply of (JST) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include genuine products and high-performance alternatives, which have been strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page.
