Categorization：Brand Connector

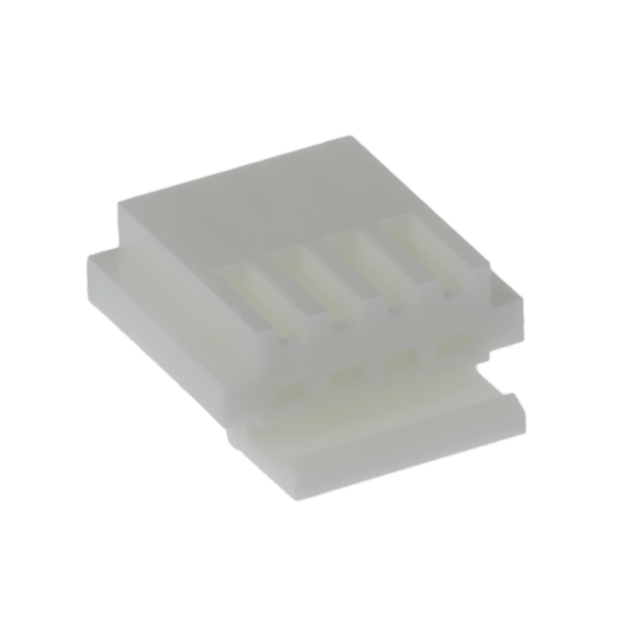

JST connector - Providing product overview of JST H4P-SHF-AA connector
 | Manufacturer | JST |
| Manufacturer Part Number | H4P-SHF-AA | |
| Product Description | CONN RCPT HSG 4POS 2.50MM, 4 rectangular connectors - shell receptacle natural 0.098" (2.50mm) |
JST Connector - Offering product attributes of JST H4P-SHF-AA connector
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | JST Sales America Inc. |
| Series | NH |
| Connector type | Power outlet |
| Touch head type | Mother mold socket |
| Needle count | 4 |
| spacing | 0.098"（2.50mm） |
| Row number | 1 |
| Spacing | - |
| Installation type | Free suspension |
| Touch terminal | Press fit |
| Fastening type | Unlock |
| Color | Natural |
| Characteristics | - |
| Insulating material | Polyamide (PA6), Nylon 6 |
| Operating Temperature | -25°C ~ 85°C |
| Please provide the text you would like to be translated. | Touchless |
JST Connector - Introduction to JST H4P-SHF-AA connector product series
JST H4P-SHF-AA is a rectangular connector housing from JST Sales America Inc., belonging to the NH series, and is suitable for reliable interconnection in various electronic devices. This socket-type connector features a 4-position single-row design with a pitch of 2.50mm (0.098"), supports crimp-type termination, and is suitable for free-hanging installation. Its female socket design facilitates mating with corresponding male terminals and has a pin lock structure to effectively enhance connection stability. The housing material is natural color polyamide (nylon 6), which has good insulation properties and temperature resistance characteristics, with an operating temperature range of -25°C to 85°C, suitable for stable use in various environments. This product is a contactless version, and users can select compatible contacts according to specific requirements. JST H4P-SHF-AA is an ideal low-power signal transmission solution, widely used in consumer electronics, industrial control, and automotive electronics, and has both high reliability and assembly flexibility.
JST connector - Provide JST H4P-SHF-AA connector documentation and media:
| Resource type | Link |
| Specification sheet | NH Connector |
JST connector - Providing genuine JST H4P-SHF-AA connector and alternative product specifications:
We focus on the spot supply of (JST) brand connectors and are committed to providing customers with high-quality and reliable connection solutions. Our products include genuine products and high-performance alternatives, which have been strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page.
