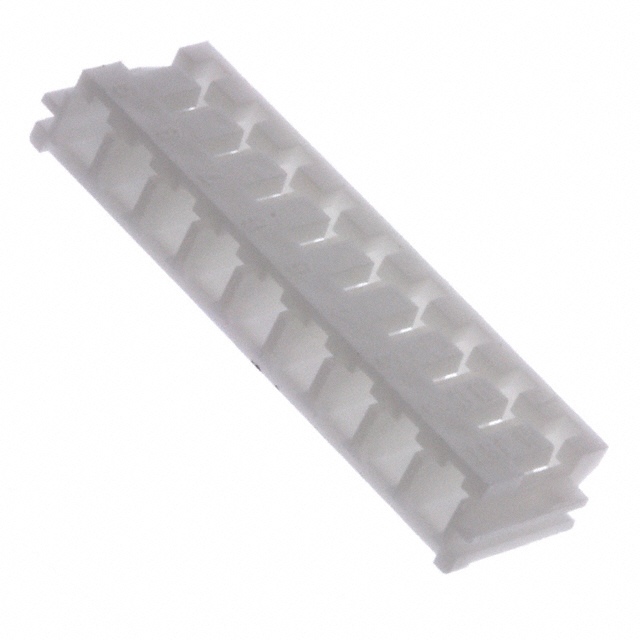

JST connector - Product overview of JST EHR-9 connector
 | Manufacturer | JST |
| Manufacturer Part Number | EHR-9 | |
| Product Description | CONN RCPT HSG 9POS 2.50MM, 9 rectangular connectors - shell receptacle natural 0.098" (2.50mm) |
JST Connector - Offering product specifications for JST EHR-9 Connector
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | JST Sales America Inc. |
| Series | EH |
| Connector type | Power outlet |
| Contact type | Maternal socket |
| Needle count | 9 |
| Spacing | 0.098"（2.50mm） |
| Row number | 1 |
| Arrangement spacing | - |
| Installation Type | Free hanging |
| Terminal connector | Soldering |
| Fastener type | - |
| Color | Natural |
| Characteristics | - |
| Insulating material | Polyamide (PA66), nylon 6/6 |
| Operating temperature | -25°C ~ 85°C |
JST connector - Providing an introduction to the JST EHR-9 connector product series
JST EHR-9 is a rectangular connector housing from JST Sales America Inc., belonging to the EH series, designed to provide a compact and reliable electrical connection solution. The product is of socket type, equipped with 9 female receptacle pins, a single-row structure, and a spacing of 2.50mm (0.098"), suitable for low current signal transmission applications.
EHR-9 supports crimp terminal connection method and adopts free-hanging installation for flexible wiring. Its housing is made of natural color polyamide (PA66, nylon 6/6), which has good insulation properties and heat resistance, and the applicable working temperature range is -25°C to 85°C, meeting the stable operation requirements in various environments. The product itself does not contain contacts, and users can flexibly select and match according to specific application scenarios. EHR-9 is suitable for consumer electronics, office equipment, communication terminals, and industrial control systems, and is a connector solution that combines performance and economy.
JST Connector - Providing JST EHR-9 Connector Documentation and Media:
| Resource type | Link |
| Specification Sheet | EH Series Datasheet |
