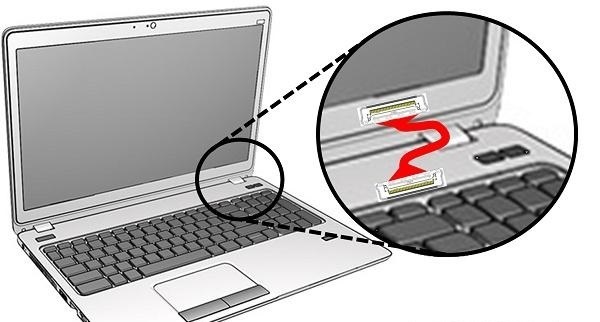

With the continuous miniaturization and high-performance development of electronic products, the ultra-thin coaxial cable assembly as a core signal transmission component is used more and more widely. However, in the design and procurement process, many engineers or purchasing personnel are prone to falling into some误区, which may affect the performance and stability of the product. This article will combine with the common misconceptions about ultra-thin coaxial cable assembly, and focus on introducing the advantages of I-PEX 20680-020T-01 connector to help you make a better choice.
Misconception one: Neglecting the shielding and anti-interference ability of wiring harnesses

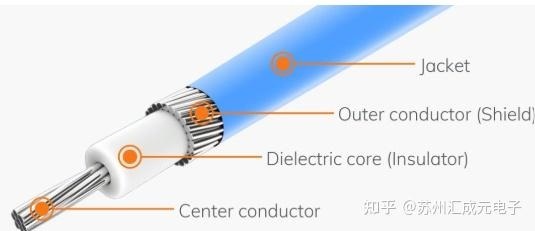

The core value of extremely thin coaxial cable束 lies in the stability of high-frequency signal transmission, and its shielding performance directly determines the anti-interference ability. Some customers mistakenly believe that the smaller the wire diameter, the better, but they ignore the importance of the shielding structure and connector matching, resulting in frequent signal attenuation or interference issues, affecting overall performance.
Misconception two: Connector selection mismatch affects overall performance
High-frequency signal transmission requires connectors to have high precision and low contact impedance characteristics. The I-PEX 20680-020T-01 connector is specifically designed for extremely thin coaxial cables, featuring ultra-small size, excellent electrical performance, and high reliability, which can effectively ensure signal integrity. If a common connector is used, it not only may result in unstable insertion and removal but may also cause signal distortion, affecting equipment performance.
Misconception 3: Neglecting harness processing technology and testing standards
The quality of wire harness processing directly relates to the reliability of the product. For wire harnesses using the I-PEX 20680-020T-01 connector, it requires precise processing technology and strict testing standards to ensure that each wire harness meets the design specifications, avoiding failure risks in subsequent use.
Why choose our I-PEX 20680-020T-01 ultra-fine coaxial cable assembly?

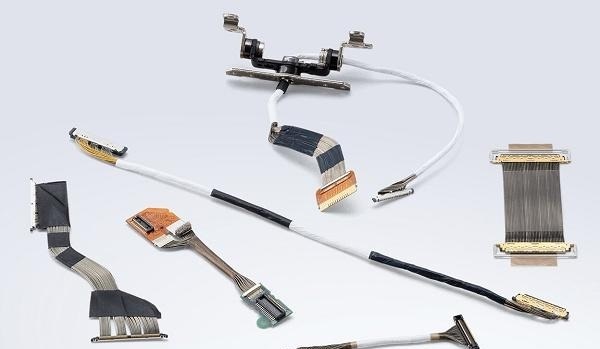

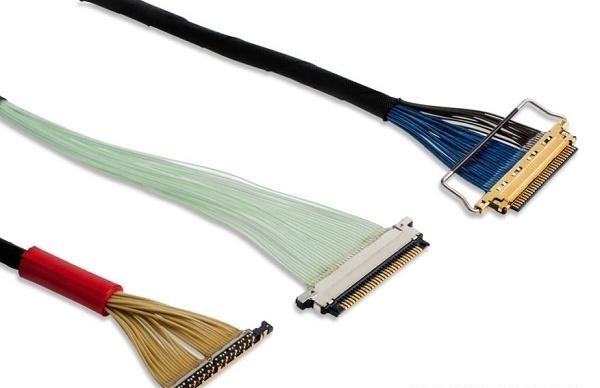

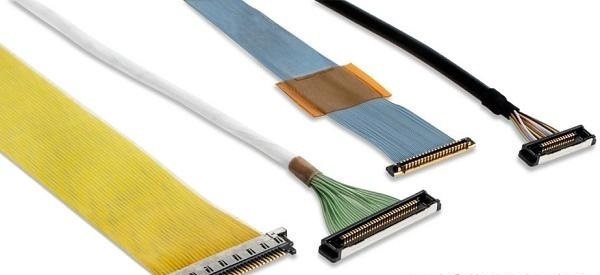

As a professional manufacturer of ultra-fine coaxial cable assemblies, we have been dedicated to the field of high-precision connectors for many years, with advanced production equipment and a complete quality management system. Our I-PEX 20680-020T-01 ultra-fine coaxial cable assembly perfectly combines the high performance of the connectors with high-quality cables, ensuring stable and high-speed transmission for each cable assembly within the extreme space.
Our advantages:
Precision machining technology ensures signal integrity
Strict testing standards to ensure excellent performance of each harness
• Provide multi-specification, multi-length, and multi-interface customization services
The key to avoiding common pitfalls with extremely thin coaxial cable assemblies lies in selecting connectors that match the performance and high-quality cable assembly processing. The I-PEX 20680-020T-01 connector, with its compact design and excellent performance, has become the preferred choice in the industry for extremely thin coaxial cable assemblies. Our company specializes in manufacturing I-PEX 20680-020T-01 thin coaxial cable assemblies, looking forward to providing strong technical support and quality assurance for your products.
I am[Suzhou Huichengyuan Electronic Technology]Long-term focus on the design and customization of high-speed cable harnesses and ultra-fine coaxial cables, committed to providing stable and reliable high-speed interconnect solutions. If you have related needs or want to learn more, please contact us:Manager Yin 18913280527 (WeChat same number)。
