Why are ultra-fine coaxial cables almost all designed as 50Ω?

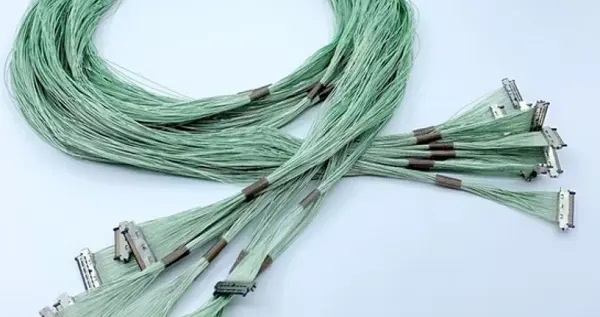

Today, with the continuous development of intelligent devices towards slimming and high-speed, the extremely fine coaxial cable assembly (Micro Coaxial Cable Assembly) has become an indispensable core component in high-end devices such as smartphones, medical imaging, drones, and vehicle electronics. However, have you ever noticed an industry consensus: almost all extremely fine coaxial cable assemblies have an impedance design unified at 50Ω? Today, let's take the JAE FI-J40C5-T3000 high-performance extremely fine coaxial connector as an example, to deeply understand the scientific basis behind this key parameter.

Why is the impedance 50Ω?

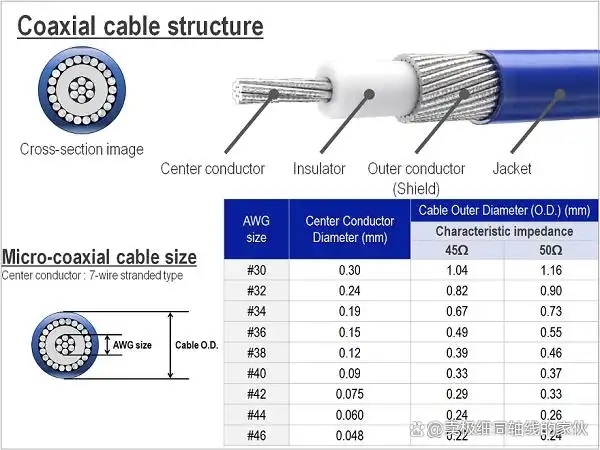

The characteristic impedance of coaxial cables determines whether signals can be transmitted efficiently and stably during transmission. If the impedance is not matched, signal energy will be reflected and attenuated, leading to increased transmission loss, decreased system performance, and even EMI interference and error codes. After long-term experimental verification and engineering practice, it has been found that: 50Ω is the optimal balance point between signal loss and power carrying capacity. In high-frequency signals, high-speed digital transmission, and radio frequency communication, 50Ω can effectively balance signal integrity (SI) and system energy efficiency, thus becoming an international standard. For this reason, from intelligent terminals to radio frequency communication modules, 50Ω impedance has become a golden parameter recognized by the industry.

JAE FI-J40C5-T3000 Connector Introduction

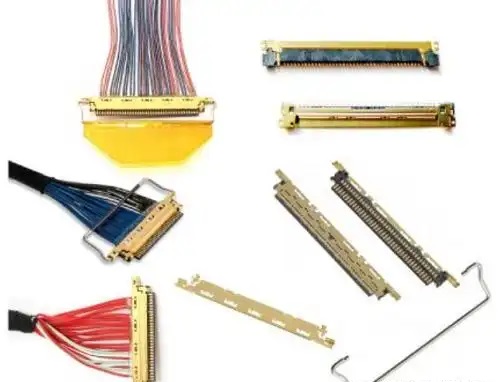

The FI-J40C5-T3000 under the JAE (Japan Avionics Electronics) brand is an extremely thin coaxial connector specifically designed for high-density and high-speed signal transmission equipment, supporting ultra-micro cables with a 0.3mm pitch. It is widely used in fields with extremely high requirements for space and signal integrity, such as smartphones, vehicle image systems, and industrial control equipment.
Core characteristics:
Supports 50Ω impedance cable design, ensuring stable high-speed signal transmission
Superminiature structure, compatible with compact equipment space
High reliability terminal structure, anti-loosening and anti-vibration design, enhancing connection durability
Wide range of application scenarios: intelligent devices, vehicle-mounted electronics, industrial image systems, etc.
The FI-J series represents JAE's leading technology in the field of miniature connections and high-speed transmission, with its performance stability and structural reliability deeply trusted by engineers.

III. 50Ω Impedance: The Key to Stable Signal Transmission

In high-speed signal applications, even a deviation of a few ohms in impedance can cause serious signal reflection and distortion. Many engineering projects encounter problems such as unstable signals, excessive EMI, and abnormal waveforms during debugging, and the root cause is often not design defects, but rather inaccurate control of harness impedance or substandard wire material quality.
Therefore, choosing a cable with high consistency and high precision impedance control, combined with a high-performance connector like FI-J40C5-T3000, is necessary to fully unleash the high-speed potential of the system. Impedance matching is not a detail, but the foundation of the stability of the entire signal chain.

Four, our harness customization and solutions

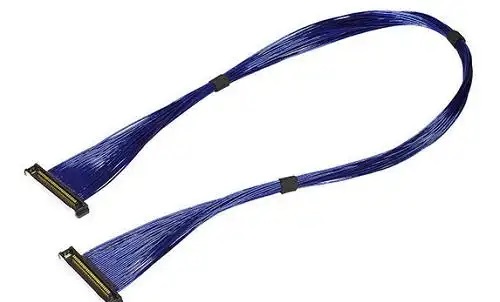

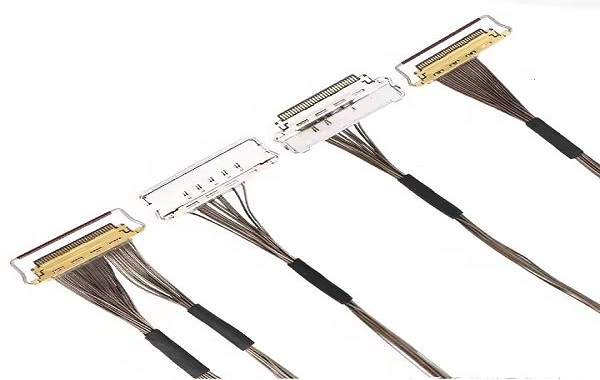

We focus on customizing JAE ultra-fine coaxial connector cables, ensuring 50Ω impedance consistency for each cable with rigorous impedance control technology and mature assembly processes.
We can provide you with:
Accurate impedance control and testing
Optimization Design of EMI Interference
• Multi-line harness customization
Provide test samples and technical support

If you are engaged in related high-speed cable harness projects, welcome to contact us via private message, or you can directly search for my nickname and obtain customized solutions and free sample tests.

The 50Ω impedance is not an arbitrary value but the optimal standard verified by global engineering practice. Connectors like JAE FI-J40C5-T3000, which are designed with this as the core, ensure the reliability and stability of high-speed signal transmission. In the era of high-speed interconnection, the combination of high-quality connectors and high-consistency cables determines the ultimate performance of signal transmission.

I amSuzhou Huichengyuan Electronic Technology, Focuses on the design and customization of high-speed cable harnesses and extremely thin coaxial cable harnesses for a long time, committed to providing stable and reliable high-speed interconnection solutions. If you have project needs or would like to learn more, please contact us:Manager Yin 18913280527 (WeChat same number)。
