Extremely thin coaxial cable and I-PEX 20847-020T-01: Miniaturized equipment high-speed transmission solution

In today's era where smart devices are becoming increasingly slim and data transmission speeds are continuously improving, ultra-thin coaxial cables (Micro Coaxial Cable) have become an indispensable "invisible hero" in many electronic products. They not only ensure high-speed signal transmission but also provide highly reliable connections within miniature devices. To fully utilize their performance, matching professional connectors such as I-PEX 20847-020T-01 is crucial. This article will provide a detailed analysis of ultra-thin coaxial cables and their connector applications.

A brief overview of ultra-fine coaxial cables

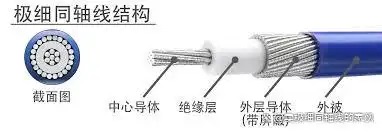

A super-fine coaxial cable is a coaxial cable with an ultra-fine diameter, compact structure, and excellent signal transmission performance.

It is similar to ordinary coaxial cable, consisting of an inner conductor, insulation layer, outer conductor (shielding layer), and sheath, but the diameter is usually less than 1mm, even reaching 0.3mm. It has high flexibility, making it very suitable for use in situations with extremely high space requirements, such as laptops, mobile phones, tablets, and medical equipment.
Advantages:
Support high-speed high-frequency signal transmission, ensuring stable and fast data transfer
High performance in blocking and strong anti-interference ability
Lightweight and soft, easy for internal wiring in miniature devices

I-PEX 20847-020T-01 connector features

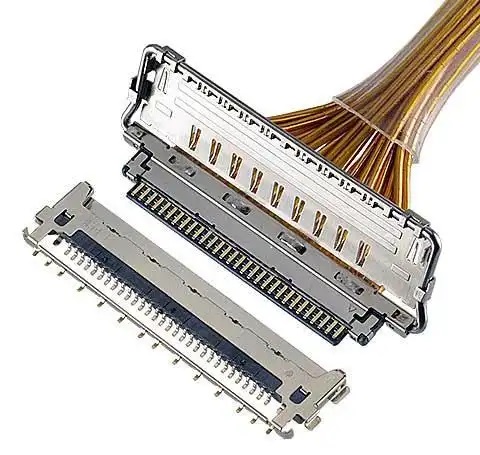

The I-PEX 20847-020T-01 connector is a star product of the CABLINE®-VS II series, specially designed for ultra-thin coaxial cable assemblies.

Main Features:
20Pin design, 0.5mm pitch, ultra-thin type
• Supports ultra-fine coaxial cables with AWG #36~#44
• ZenShield® full shielding design, excellent EMC performance
Multiple grounding + mechanical lock buckle structure, connection is stable and not easy to come loose
• Support PCIe Gen5 32 GT/s/lane high-speed data transmission
This connector is widely used in ultra-thin notebooks, industrial cameras, medical imaging equipment, and 5G communication modules, ensuring the stability and integrity of high-speed signal transmission.

Section 3: Advantages of Our Customized Service

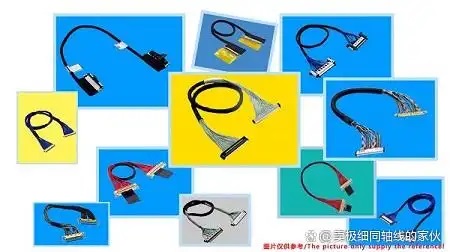

Our company has been focusing on the processing and customization of I-PEX 20847-020T-01 ultra-fine coaxial cable assemblies for a long time, with mature technology and extensive experience, and can provide customers with customized high-speed cable solutions.

Our strengths:
High-precision peeling, welding, and crimping technology ensures signal integrity
Full inspection and testing to ensure excellent high-frequency transmission performance of each harness
Multi-specification, multi-length, multi-interface customization service, to meet the needs of different equipment

The ultra-fine coaxial cable paired with the I-PEX 20847-020T-01 connector is an important guarantee for high-speed and stable signal transmission behind modern high-end equipment. If you are looking for a high-frequency high-speed cable harness customization solution, we can provide professional selection advice and high-quality cable harness products.
