Bellwether(贝尔威勒)-3.0PH line board connector (Micro-Hi™ - Right Angle Header) is what and what are its features: The Bellwether-3.0PH line board connector, also known as the Micro-Hi™ Right Angle Header, is a type of electrical connector used for connecting printed circuit boards (PCBs) to other components or PCBs. Here are some of its features: 1. Right-angle design: The connector features a right-angle configuration, which is suitable for applications where space is limited and a vertical connection is required. 2. Micro-Hi™ interface: The connector is designed with the Micro-Hi™ interface, which is a compact and high-density PCB connector series. It offers a high connection density, allowing for more connections in a smaller space. 3. High-quality materials: The connector is made of high-quality materials, ensuring durability and reliable performance. 4. Gold-plated contacts: The contacts of the connector are gold-plated, providing excellent electrical conductivity and resistance to corrosion. 5. Easy to install and maintain: The connector is designed for easy installation and maintenance, making it suitable for various applications. 6. Wide range of applications: The Bellwether-3.0PH line board connector is suitable for various applications, such as consumer electronics, medical equipment, industrial control systems, and communication devices. 7. Compatible with various PCBs: The connector is compatible with different types of PCBs, allowing for versatile usage. 8. RoHS compliance: The connector is compliant with the RoHS (Restriction of Hazardous Substances) directive, ensuring environmental safety. These features make the Bellwether-3.0PH line board connector a reliable and efficient choice for PCB connections in various applications.
Bellwether Micro-Hi™ Connector: Why Is It the Hardcore Player in Server Power Supplies?
The server power environment is complex, with limited space for heat dissipation, posing extremely high requirements for the connector's current carrying capacity and reliability. Through actual testing and assembly experience, it has been found that the Bellwether Micro-Hi™ connector is indeed worth mentioning.
Core strengths
Single pin has a carrying capacity of 12.5A, far exceeding that of ordinary 3.0mm pitch connectors, suitable for server and GPU cluster power supply systems.
3.0mm standard spacing, capable of achieving high-density wiring in limited spaces, compatible with the layout of most power interface on the market.
Dumb-proof plug-in structure, ensures error-free blind insertion, and improves maintenance efficiency.
Actual experience
Assemble a 6Pin Micro-Hi™ connector cable assembly, with smooth insertion and extraction, secure contact points, excellent temperature rise control at 12A current test, fully compliant with industrial-grade power standards.
The Bellwether Micro-Hi™ performs exceptionally well in terms of electrical performance, mechanical structure, and assembly friendliness, especially suitable for servers, industrial equipment, and new energy power modules.

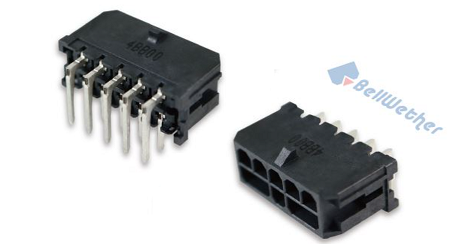

Bellwether(贝尔威勒)-3.0PH line board connector (Micro-Hi™ - Right Angle Header) product illustration:
Bellwether (贝尔威瑟)Leh)-3.0PH line board connector (Micro-Hi™ - Right Angle Header) material number details:
70078-0501，70078-0802，70095-0203，70095-0404，70095-04V5，70095-0601，70095-0802，70095-08L3，70095-1004，70095-1205，70095-1401，70095-1602，70095-1803，70095-2004，70095-2205，70095-2401，70096-0202，70096-0213，70096-0404，70096-0415，70096-0601，70096-0612，70096-0803，70096-0814，70096-1005，70096-1011，70096-1202，70096-1213，70096-1404，70096-1415，70096-1601，70096-1612，70096-1803，70096-1814，70096-2005，70096-2011，70096-2202，70096-2213，70096-2404，70096-2415
How to purchase or learn about the Bellwether 3.0PH line-to-board connector (Micro-Hi™ - Right Angle Header) connector product?
Suzhou Huichengyuan Electronic Technology Co., Ltd. - Authorized sales of Bellwether (Belleville) 3.0PH Cable-to-Board Connectors (Micro-Hi™ - Right Angle Header) connectors; If you wish to purchase or inquire about Bellwether (Belleville) connectors, cable assembly products and solutions, please contact us through the following methods.
Contact person: Zhang Manager, Mobile: 18913228573 (WeChat same number), Email: King_Zhang@LPMconn.com, Phone: 0512-36851680, QQ: 2991550717
Address: No. 2 Yongran Road, Zhangpu Town, Kunshan City, Suzhou Province
