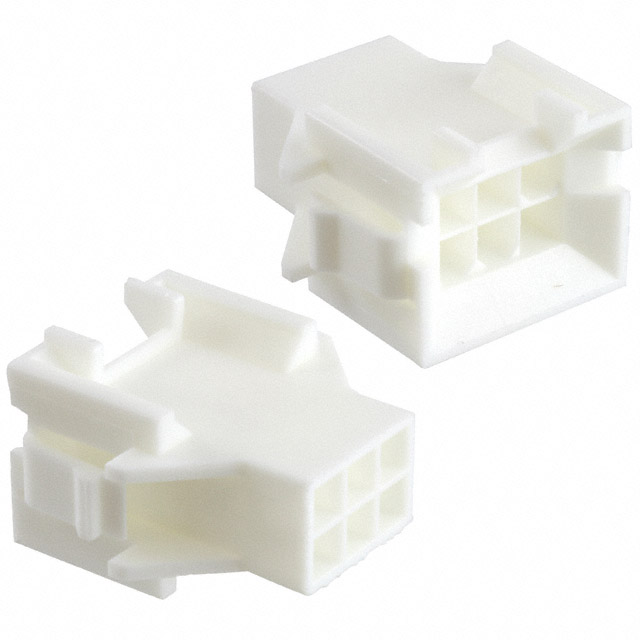

Molex 0015060066 connector product overview:
 | Manufacturer | Molex |
| Manufacturer part number | 0015060066 | |
| Product Description | CONN PLUG HSG 6POS 4.20MM, 6 RECTANGULAR CONNECTOR - HOUSING RECEPTACLE NATURAL 0.165" (4.20MM) |
Molex 0015060066 connector product attributes:
| Type | Description |
| Category | Connector, interconnection device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | Molex |
| Series | Mini-Fit BMI 42475 |
| Packaging | Loose bulk |
| Connector type | Plug |
| Contact type | Public lead shape |
| Needle count | 6 |
| Spacing | 0.165"（4.20mm） |
| Row number | 2 |
| Arrangement distance | 0.165"（4.20mm） |
| Installation Type | Panel installation, snap-in type |
| Touch end connection | Soldering |
| Fastener Type | - |
| Color | Natural |
| Feature | blind plug |
| Insulating material | Polyamide (PA66), nylon 6/6 |
| Operating temperature | -40°C ~ 105°C |
| Note | Touchless |
Molex 0015060066 connector product (series) introduction:
The Molex Mini-Fit BMI 42475 series is a rectangular connector housing designed for medium current applications, suitable for electronic systems that require high reliability and ease of assembly. The product is a 6-position double-row male connector with pins and row spacing of 4.20mm, featuring panel-mounting style installation, supporting blind mating function, simplifying the assembly process and improving connection efficiency, especially suitable for installation environments with limited space or inaccessible locations. The connector housing is made of polyamide PA66 (nylon 6/6) material, with excellent mechanical strength, insulation properties, and high and low temperature resistance, capable of stable operation in an operating environment of -40°C to 105°C. This series supports crimped termination to meet the requirements of automated production. Note that the product does not include contacts and matching terminals must be selected separately to complete the complete connection.
