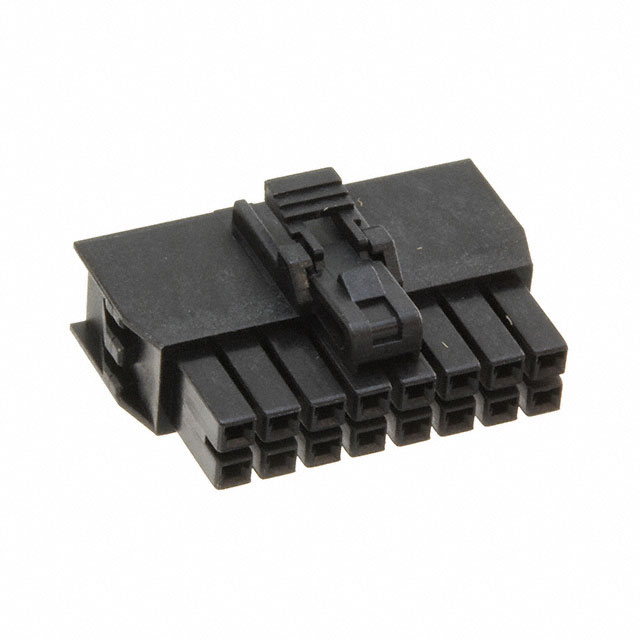

Molex 1053081216 connector product overview:
 | Manufacturer | Molex |
| Manufacturer part number | 1053081216 | |
| Product Description | CONN RCPT HSG 16POS 2.50MM, 16 rectangular connector - housing socket black 0.098" (2.50mm) |
Molex 1053081216 connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | Molex |
| Series | Nano-Fit 105308 |
| Packaging | Bulk |
| Connector type | socket |
| Contact type | No distinction between male and female types. |
| Needle count | 16 |
| Spacing | 0.098"（2.50mm） |
| Row number | 2 |
| Spaced out | 0.098"（2.50mm） |
| Installation type | Free suspension |
| Terminal connection | Press fit |
| Type of fastening | Unlock |
| Color | black |
| Feature | - |
| Insulating material | Polyamide (PA4T), Nylon 4T, glass-filled |
| Working temperature | - |
| Note | Contactless |
Molex 1053081216 connector product (series) introduction:
The Molex Nano-Fit 105308 series is a high-performance rectangular connector housing suitable for various power and signal transmission applications. The product is designed as a socket type with a 2-row configuration of 16 pins, with a pitch of 2.50mm for both rows and pins, featuring a compact structure and high-density connection capability. Its free-hanging installation method is flexible and convenient, and when used with crimp terminals, it can achieve reliable electrical connections. The housing material is glass-filled polyamide (PA4T) nylon 4T, which has excellent mechanical strength and heat resistance, ensuring that the connector maintains stable performance in complex environments. The locking structure provides additional connection security and effectively prevents accidental detachment. This product is supplied in bulk and does not include contacts; matching terminals must be purchased separately. The Nano-Fit series is particularly suitable for electronic systems with limited space and high requirements for connection density and reliability.
Molex 1053081216 connector documentation and media:
| Resource type | Link |
| Specification Sheet |
Molex 1053081216 connector genuine|replacement related instructions:
We focus on the spot supply of (Molex) brand connectors and are committed to providing customers with high-quality and reliable connection solutions. Our products include genuine products and high-performance alternatives, which have been strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below on the document page!
