I-PEX 83020-100B-01-D 32P high-speed signal transmission ultra-thin coaxial cable replacement

The 32PIN high-density design solves the wiring problem of "small space and numerous signals" for high-speed image equipment.

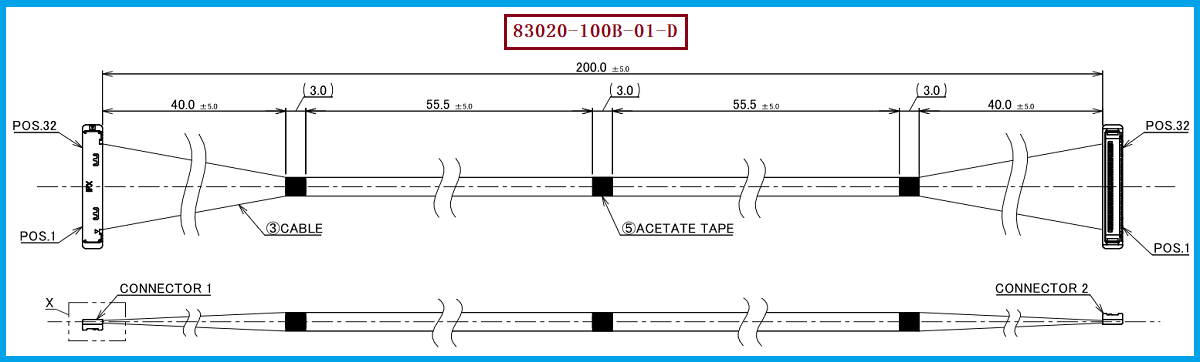

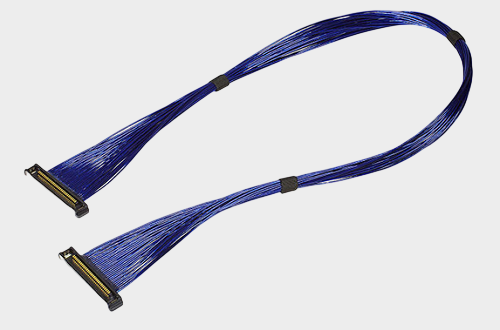

With the continuous development of high-resolution displays, AI vision, industrial cameras, laptops, and high-end computing equipment towards slimming and high-speed, the high-speed signal lines inside the devices must transmit more data while occupying as little space as possible. For engineers, traditional cables are increasingly difficult to balance in terms of space layout, bending, and high-speed signal transmission, and ultra-fine coaxial cables are becoming an important solution for high-density high-speed connections. This time, we are launching the I-PEX 83020-100B-01-D, which is compatible with and replaces ultra-fine coaxial cables, adopting a 32PIN structure. The cable end uses the I-PEX 20373-R32T-06 connector, which has 32PIN pins and a pin spacing of only 0.4MM. The cable length is 200MM, using a 1-1 straight-through wiring sequence, and employing 40AWG ultra-fine coaxial wire. I-PEX official data shows that the CABLINE®-SS series uses a 0.4mm spacing, vertical right-angle insertion and removal structure, combined with a height of about 1.65±0.2mm, and supports 32Pin specifications, able to meet the high-density wiring needs inside compact devices.

For engineers, 32PIN signifies integrating more signal channels within a limited connector width, while 40AWG ultra-thin coaxial wire materials can further reduce the overall space occupied by the cable bundle; for purchasers, clear key parameters such as 83020-100B-01-D, 20373-R32T-06, 32PIN, 0.4MM, 40AWG, 200MM, 1-1, can quickly confirm whether the substitute product meets the structural and electrical connection requirements of the original equipment. Especially when the procurement cycle of the original factory part number is long, delivery times are unstable, or when a second supply source needs to be sought, a ultra-thin coaxial cable bundle that can be developed and mass-produced to meet the specifications of the original product can effectively reduce the risk brought by a single-source supply chain.

How does a very fine coaxial cable support 8K image transmission? The key lies in high-speed signal integrity.

"Ultra-thin" and "high-speed" are not inherently contradictory. What truly determines the high-speed image transmission capability is not necessarily the larger the cable diameter, but rather the conductor structure, dielectric material, shielding structure, characteristic impedance, connector, and the matching degree of the entire signal chain. For 8K image transmission, after the image resolution is upgraded from 4K to 8K, the amount of data that needs to be processed and transmitted within a unit of time significantly increases, thus placing higher requirements on the bandwidth, loss, crosstalk, and signal integrity of the high-speed link. The official documentation for I-PEX CABLINE®-SS provides a reference high-speed performance of 16Gbps/Lane and has conducted high-speed performance tests using a 40AWG, 45Ω, 100mm Micro-Coaxial Cable, and also lists high-speed standards such as V-by-One US 16Gbps/Lane, HDMI 2.1 12Gbps/Lane, and USB 3.2 Gen 2 10Gbps/Lane as reference applications. It should be emphasized that "supporting high-speed transmission capability" does not mean that any 8K device can directly achieve 8K full specification transmission. The actual 8K capability still needs to be verified in combination with specific interface standards, refresh rate, color depth, chroma sampling, channel number, cable length, and the overall SI design of the whole machine.

Therefore, from the perspective of engineering design, the value of 40AWG ultra-thin coaxial cable束 is not just "being thinner," but more importantly, maintaining a stable high-speed signal transmission environment while achieving miniaturization. The 32PIN structure can provide a higher signal channel density, and the ultra-thin coaxial cable itself has an independent shielding structure, which can help engineers better control the mutual interference between signals in high-speed differential or high-speed signal applications. CABLINE®-SS also adopts the W-Point double-point contact design, with I-PEX documentation emphasizing that this structure can improve the contact reliability between male and female connectors. For high-speed applications such as 8K display, high-definition video, AI vision collection, etc., a systematic impedance and signal integrity design of the entire chain from the chip end, PCB end, connector to the ultra-thin coaxial cable束 is more important than simply pursuing the high-speed specifications of a single component.

How to select a compatible alternative solution for 83020 from an engineer to a procurement person?

During the actual project import process, engineers and procurement personnel focus on different issues. Engineers first need to confirm the mechanical dimensions, PIN number, spacing, wire sequence, wire length, wire diameter, connector model, and whether the internal routing space of the device matches; procurement personnel are more concerned about whether the product can be supplied stably, whether it can be produced according to the drawings, whether it has the ability for mass delivery, and whether the introduction of substitute products can reduce procurement costs and supply risks. Therefore, when selecting I-PEX 83020-100B-01-D such ultra-fine coaxial cable assemblies, one cannot simply look at the "32PIN" parameter, but must confirm the connector, wire material, wire sequence, and length as a whole. The official I-PEX page explicitly lists 83020 as a 32Pin, Micro-Coaxial, 40AWG, L=200mm, 1-1 cable assembly model, and there are also 83019 (100mm, 1-1) and 83021 (300mm, 1-1) in the same series. Therefore, when the project has varying length requirements, corresponding evaluations can be made according to the actual structural space.

Selection, compatibility, and alternative solution references and recommendations

For projects that need to replace existing products, it is recommended to first confirm whether the connector used by the original equipment is 20373-R32T-06, and check the 32PIN and 0.4MM pitch; secondly, confirm whether the wire is 40AWG ultra-fine coaxial cable, and verify the 200MM length and 1-1 straight-through wiring sequence at both ends; if the equipment has specific requirements for high-speed signals, it is also necessary to further verify signal integrity by combining the actual interface and the whole machine. In the official I-PEX documentation, CABLINE-SS 32Pin corresponds to Plug Housing 20373-R32T-06, and also lists 32Pin Receptacle 20374-R32E-31, which can be used as a reference for system-side matching selection. Our company can provide: I-PEX 83020-100B-01-D compatible replacement cable solution, which can be compatible with the development and manufacturing around the key requirements of the original product's connector model, 32PIN structure, 0.4MM pitch, 40AWG ultra-fine coaxial cable, 200MM length, and 1-1 wiring sequence, providing engineers with sample verification, structural matching, and product introduction support, and also providing more flexible domestic alternative and supply chain backup solutions for procurement personnel.

Four, ultra-fine coaxial cable束manufacturing scheme for 8K display, AI vision and high-speed equipment

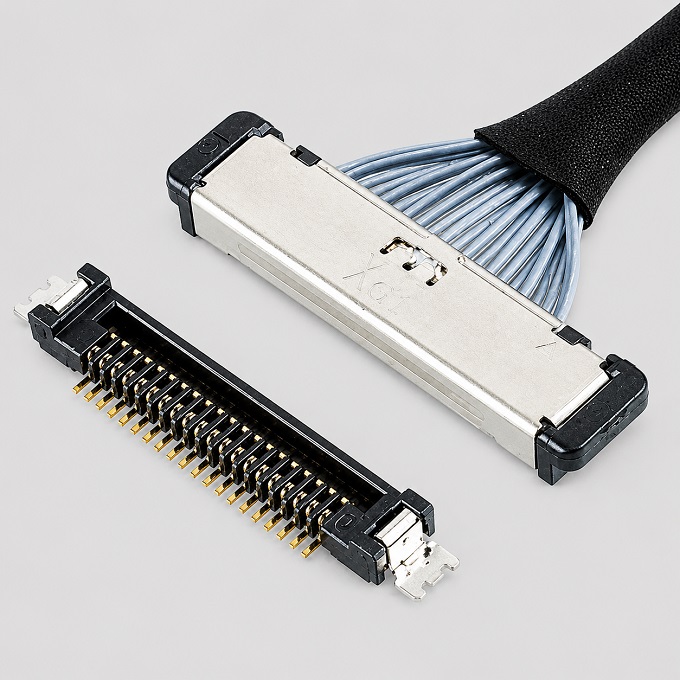

For laptops, ultra-thin display devices, AI vision devices, industrial cameras, and other high-speed data devices, the internal wiring is gradually evolving from the traditional "connection functional component" to become a key component affecting the overall high-speed signal quality, structural layout, and product reliability. The 32PIN, 200MM, 1-1, 40AWG ultra-fine coaxial cable solution represented by I-PEX 83020-100B-01-D has strong application value in high-density, small space, and high-speed signal connection scenarios. The accompanying 20373-R32T-06 cable end connector uses a 0.4MM spacing, which is conducive to achieving high-density connections in limited spaces; the CABLINE®-SS series itself also has narrow structure, vertical right-angle insertion and extraction, and horizontal cable exit features, suitable for electronic devices with high requirements for internal space.

From the perspectives of product development and supply chain, we not only focus on whether the harness can be connected, but also on whether it can truly meet the structural, electrical, and mass production requirements of the customer's equipment. For customers who need to replace the I-PEX 83020-100B-01-D, we can carry out compatible replacement development based on the original harness provided by the customer, product drawings, or actual usage requirements, and confirm the product around key parameters such as connectors, 40AWG ultra-thin coaxial cables, 32PIN/0.4MM structure, 200MM length, and 1-1 wire sequence. For projects involving 8K image transmission, it is recommended to conduct actual high-speed signal testing after completing mechanical compatibility to ensure that a complete and reliable high-speed transmission link is formed between the harness, motherboard, connector, and display end.

Under the continuous development of 8K ultra-high-definition, AI vision, and high-speed display equipment, extremely fine coaxial cable bundles are developing towards "thinner, denser, faster, and more reliable." The I-PEX 83020-100B-01-D uses a 32PIN, 0.4MM spacing, 40AWG, 200MM cable length, and 1-1 wiring sequence design, which is a typical extremely fine coaxial cable bundle for high-density and high-speed connection applications. Our company focuses on the production and manufacturing of extremely fine coaxial cable bundles and compatible alternative development, and can provide I-PEX 83020-100B-01-D compatible alternative cable bundle solutions, offering product selection and technical verification support for engineers, and stable alternative supply and bulk manufacturing options for procurement personnel.

I am【7A Electronic Network】Focus on the research and development of high-speed ultra-fine coaxial cable assemblies and connectors, and alternative solutions. If you have selection or verification requirements or product needs, please contact: Manager Zhang.18913228573 (WeChat number).
