Optimal 3M 8KC3-0726-0250 Cable Replacement Solution and Selection Guide

In today's data center, industrial control, and high-performance computing system designs, the stability and performance of high-speed interconnect cables directly affect the overall system reliability and data transmission efficiency. As a globally leading electronic interconnect product brand, 3M has been committed to providing high-quality high-speed cable solutions. This article will provide a detailed introduction to the 3M model 8KC3-0726-0250 product, and offer selection and alternative solution suggestions to help engineers and procurement teams better understand and choose the appropriate interconnect components.

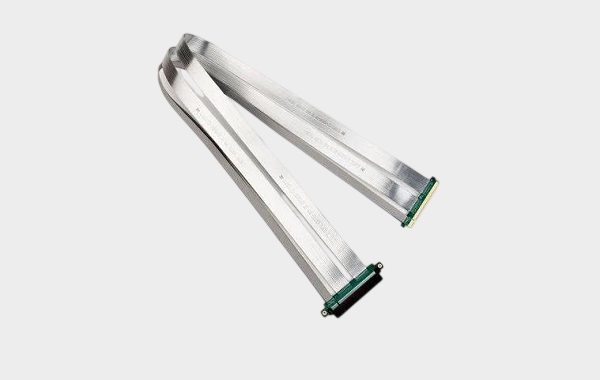

Product Introduction: 3M 8KC3-0726-0250 High-Speed PCIe x16 Cable Assembly
3M model 8KC3-0726-0250 is a cable assembly specifically designed for high-speed PCI Express x16 signal extension applications, featuring the following characteristics:
Interface specification: PCIe x16 plug to PCIe x16 socket, a high-density interface with 164 connection points.
Cable Length: Approx. 250 mm (9.843 inches), suitable for short-distance interconnection between boards.
• Performance indicators: Adopting Twin Axial double-axis flat cable technology, it supports PCIe 3.0 standard (about 8 Gbps transmission speed) and has excellent signal integrity and anti-interference performance.
• Structure characteristics: wire gauge 30 AWG, shielded design ensures good electromagnetic compatibility and stable transmission; suitable for internal board-to-board connections.
•  Applicable temperature range: Supports a working environment of approximately -20°C ~ 80°C, meeting the needs of most industrial systems.
This product is very suitable for scenarios such as server internal short-distance PCIe bus expansion, test equipment line connection, and customized high-speed data transmission solutions due to its stable high-frequency transmission capability, multi-point connection design, and compact length.

Two, selection and compatibility and alternative solutions reference and suggestions
When selecting high-speed cable or connector components, engineers need to pay attention to the following core indicators: signal bandwidth and compatibility with transmission standards, cable structure and wire gauge, shielding and anti-interference ability, and connector type and mechanical fit. For 3M 8KC3-0726-0250, the following are practical selection and alternative suggestions:
Key selection points
  Standard compatibility: Ensure that the selected components support the PCI Express x16 interface specifications and meet data standards above PCIe 2.0/3.0; consistent with the interface definition of the PCB board.
• Structural design: For high-frequency application scenarios, prioritize the use of flat cables with good shielding and dual-axis structure, which helps to improve signal integrity.
Environmental adaptability: According to system working temperature, radiation environment and other conditions, reasonably choose cable components with wider working temperature range and stronger anti-interference ability.
Alternative Solution Suggestions
Although 3M original components have excellent performance, they may face constraints such as cost and supply cycle in some projects. In this case, the following alternative directions can be considered:
  Same type PCIe x16 interface extension cable components: High-density connection line components from other well-known connector manufacturers, ensuring compatibility with PCIe x16 standard and matching in signal bandwidth and cable structure.
Customized high-speed harness design: Based on specific circuit layout and signal requirements, design custom length and structure combinations of Twinax or other high-frequency cables, which can targetively optimize the system integration effect.
Internal wiring evaluation and replacement solutions: For systems with shorter inter-board distances and dense layouts, it is advisable to consider using more compact flexible flat cables (FFC/FPC) or cable solutions with better bending radii, in order to improve installation convenience and reliability.
When selecting alternative options, it is recommended to assess factors such as signal integrity, electromagnetic compatibility, and mechanical fitment with experienced cable manufacturers to ensure that product performance is not affected.

As a high-quality cable component in the field of high-speed PCIe x16 interconnection, 3M 8KC3-0726-0250 stands out for its excellent high-frequency transmission performance, stability, and professional structural features, making it widely applicable in server, industrial equipment, and high-speed data transmission systems. When selecting, it is necessary to consider compatibility, electrical performance, and the specific requirements of the application scenario comprehensively; and in the case of long supply cycles or cost constraints, effective optimization of the project plan can be achieved through reasonable domestic or other alternative solutions.
We continue to focus on the research and development of domestic alternatives for high-speed interconnect components, especially the 3M brand cable products, and the development of market application solutions. If you are interested in domestic alternatives for 3M products, compatible products, or procurement needs, or are following this direction, welcome to contact: Manager Yin.18013280527, WeChat number the same)，We look forward to in-depth communication and cooperation with you!
