In today's fast data transmission and server architecture design, high-performance cable components are an important foundation for maintaining signal integrity and system flexibility. As a global leading brand in the field of electrical interconnection, 3M's high-speed cable components have been widely adopted in the industry for a long time. This article will focus on introducing the characteristics, technical advantages, and selection compatibility and domestic substitution solutions proposed to meet market demand for 3M 8KCH-0965-0500 cable assembly, to help engineers and procurement teams make more informed decisions in design selection and supply chain optimization.
Part 1, 3M 8KCH-0965-0500 Product Introduction and Core Advantages

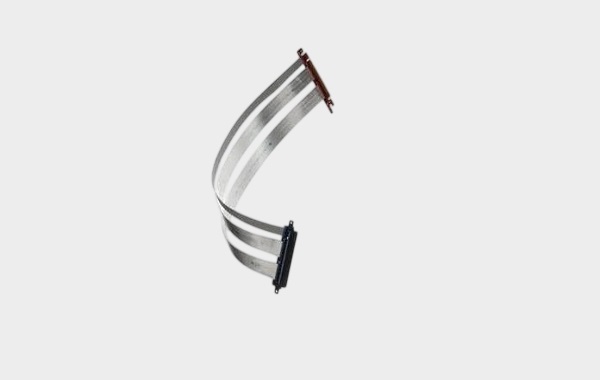

3M 8KCH-0965-0500 is a Twin Axial PCI Express x16 crossover/extension cable assembly for high-speed interconnection, featuring a slender twin axial construction and is suitable for scenarios in internal system design where PCIe signal extension or relocation is required. The component has the following notable features:
High-speed signal integrity: Utilizes dual-axis differential cables with continuous longitudinal shielding, supporting high-bandwidth transmission under PCI Express protocol without easily generating signal resonance and interference.
Flexible structural design: The cable bundle adopts a thin, flat structure, which can be flexibly folded and routed, significantly enhancing the freedom of routing in confined cases.
Standard specifications: 164 contact, x16 channel design, 30AWG signal cable specification, and 500mm length configuration, suitable for internal PCIe expansion design.
Excellent cooling and cable management: The wide flat cable shape not only optimizes the space inside the case but also helps improve internal air flow management, aiding in thermal design optimization.
This model belongs to the 3M TwinAx Gen4 series, which can support higher signal rates under specific conditions while meeting the PCIe Gen4 specification, and is suitable for enterprise servers, high-performance computing nodes, and industrial applications.
Two, selection and compatibility and alternative solutions reference and suggestions
In the actual design and procurement process, reasonable selection and alternative solutions not only relate to project performance but also involve supply stability and cost optimization. The following is a selection and compatibility reference suggestion for 3M 8KCH-0965-0500:
Comparison of specifications for the same product series
If different lengths or installation styles are needed in the project, consider other standards in the 3M 8KCH series (such as the 250mm version) or similar products with surface-mounted/other interface styles to meet different layout space requirements.
2. Performance compatibility comparison
When selecting, attention should be paid to the impedance specifications of the dual-axis cable (such as 85Ω specifically designed for PCIe), signal line specifications, and the overall shielding structure to ensure that the newly selected item is consistent with or better than the original model in terms of high-speed signal integrity indicators.
3. Suggested domestic alternatives
With the advancement of high-speed interconnection technology domestically, some domestic manufacturers have developed high-density cable components that are compatible with PCIe high-frequency applications, which may have advantages in terms of cost and supply cycle. It is recommended that when evaluating the replacement of domestic products, priority should be given to examining whether the following indicators are met:
Impedance and differential transmission parameters compatible with PCIe specification
Shielding design for multiple dual-axis or equivalent structures
• Can match 164 pins x 16 channels or customizable pin configuration
Reliable mechanical connection methods and durability testing verification
Engineers can perform signal simulation and sample testing before alternative selection to ensure that the overall system performance is not affected.
Chapter 3: Application Scenarios and Design Suggestions
This high-performance cable component is mainly used in applications such as high-speed server communication, peripheral expansion, and test equipment interconnection. In wiring design, it is recommended:
Avoid sharp bending and interlacing, ensure the consistency of differential pair alignment.
Optimize routing to reduce EMI interference
Combine cable length and system requirements, and prefer standard components where possible to enhance reliability.
Through reasonable layout design, the high-speed transmission advantages of this cable component can be better utilized, thus ensuring the stable operation of the system.
As a member of 3M's high-performance high-speed interconnects, the 8KCH-0965-0500 provides reliable solution support for PCI Express high-performance system design with its excellent dual-axis cable structure, high bandwidth signal transmission capability, and flexible cabling design. In terms of selection and supply chain, it is also possible to explore product specifications or domestic alternative solutions that meet performance requirements in combination with project needs to improve overall supply stability and cost-effectiveness.
We pay close attention to the domestic substitution research and market application scheme development of this brand connector and cable component. If you are interested in related domestic substitution solution products, have procurement needs, or are looking for solutions in this direction, please contact: Manager Zhang.
18665383950, WeChat number same），looking forward to in-depth communication and cooperation with you.
