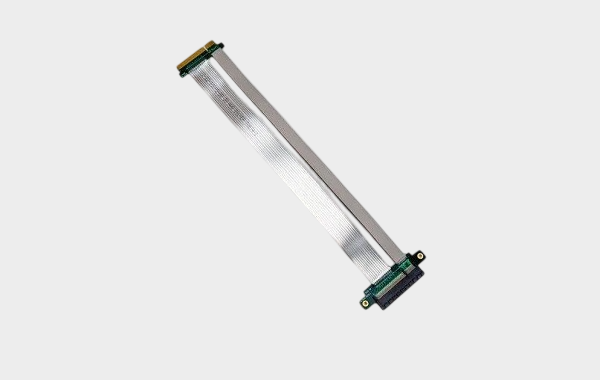

In industrial automation, communication equipment, and precision electronic systems, high-reliability internal connection solutions directly affect the stable operation of the whole machine. As a globally renowned supplier of materials and connection solutions, 3M has a mature product system in the field of electronic interconnection. Among them, the cable assembly model 8KH2-0723-0250, with its stable electrical performance and consistent crimping process, is widely used in internal connection scenarios of control systems, instruments and meters, and embedded devices. This model usually belongs to the multi-core flat cable assembly series, emphasizing precise termination and high-density layout, and is suitable for application environments with limited space and high requirements for signal stability.
Part 1: Product Structure and Technical Features
From the perspective of structural design, the 8KH2-0723-0250 cable assembly component adopts a multi-core ribbon structure, featuring good flexibility and bend resistance, which can meet the complex wiring needs inside the equipment. Its termination form usually matches standard spacing IDC or board-end interface systems, ensuring firm and stable connections. In applications such as automated control cabinets, medical electronic equipment, and internal connections of communication modules, this type of cable assembly component can achieve rapid assembly and modular maintenance, improving assembly efficiency and reducing maintenance costs. Relying on 3M's technical accumulation in material engineering and manufacturing processes, this type of product has high stability in terms of temperature resistance, flame retardancy level, and contact reliability, suitable for long-term operating environments.
Section 2: Selection, Compatibility, and Alternative Solutions Reference and Recommendations
During the actual project import process, selection should not only focus on the model itself but also combine overall electrical and mechanical parameters for a systematic evaluation. Firstly, it is necessary to confirm that the number of pins, wire sequence definition, and interface spacing are completely consistent with the original model; secondly, check that the rated voltage, current parameters, and insulation level meet the equipment design requirements; further, pay attention to cable length, tolerance range, and bend radius requirements to ensure that the assembly space matches. If considering domestic alternative solutions, it is recommended to focus on verifying key indicators such as terminal material, electroplating thickness, and contact resistance, especially in high-frequency or weak signal transmission scenarios. It is essential to ensure long-term reliability through insertion/extraction life testing, environmental aging testing, and overall system joint debugging testing. For batch projects, it is recommended to first carry out a small batch sample installation, confirm the structural match and electrical performance before gradually switching to mass production to reduce replacement risk and ensure stable system operation.
The 3M 8KH2-0723-0250 cable assembly represents a mature and reliable industrial-grade connection solution with stable electrical performance and good structural consistency. For enterprises that are advancing cost optimization and localization of the supply chain, the key to smooth replacement and long-term application lies in understanding the original model's structure, electrical parameters, and application environment requirements, and then introducing high-matching alternative products through systematic testing and verification. Scientific selection and rigorous verification will help enterprises achieve more competitive supply chain strategies while ensuring performance and safety.
We have been deeply engaged in the research and development of domestic alternatives for 3M brand connectors and cable assembly components, as well as the development of market application solutions. If you are interested in this model or related domestic substitute products, or are looking for stable supply resources, please contact Manager Zhang.
18665383950, same number on WeChatLooking forward to in-depth communication with more industry customers and partners to jointly promote project implementation.
