ODU, as an internationally renowned high-end connector brand, has long been committed to the research and development and manufacturing of circular connectors, cable assemblies, and precision interconnection solutions. Its products are widely used in medical, industrial automation, testing and measurement, military, and communication equipment fields. Known for their high reliability, long mating life, and precise structural design, ODU's products have significant technical advantages, especially in high-performance circular cables and connection systems. This article will analyze the mechanical structure characteristics of the ODU circular cable connection system and provide suggestions for selection and domestic alternatives based on actual applications.
Mechanical structure analysis of the ODU circular cable connection system
The core competitiveness of the ODU circular connection system lies in its exquisite mechanical structure and rigorous engineering design.
• Firstly, in terms of locking structures, ODU provides various mechanical connection forms such as push-pull self-locking, bayonet lock, and threaded locking. The push-pull self-locking structure realizes quick insertion and extraction, suitable for medical, portable equipment, and other frequently operated scenarios; while the threaded locking method has stronger vibration resistance, suitable for industrial and military environments. The diversified locking methods ensure stable contact and anti-misconnection capabilities in different application scenarios.
• Secondly, in terms of shell materials, its circular connectors cover two major categories: plastic shell and metal shell. Plastic shells have the characteristics of light weight, good insulation, and resistance to chemical corrosion, which are convenient for use in medical and disposable equipment; metal shells provide higher mechanical strength, electromagnetic shielding performance, and environmental protection capabilities, making them suitable for use under stringent operating conditions.
• Again, in terms of the contact system, ODU achieves low contact resistance and high insertion/extraction life by using an elastic needle spring structure, multi-point contact, and high surface treatment technology. Some product series can reach thousands to tens of thousands of insertion/extraction times, meeting the strict requirements for reliable life in testing, measurement, and military interfaces.

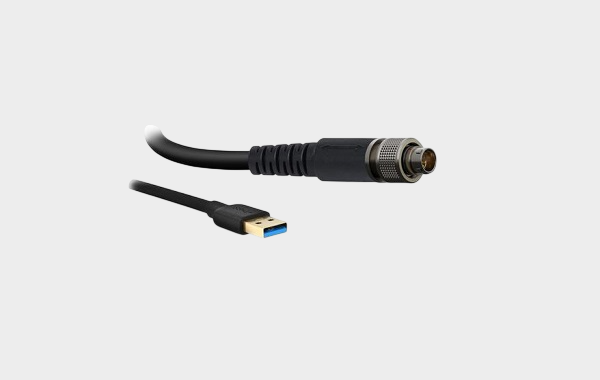

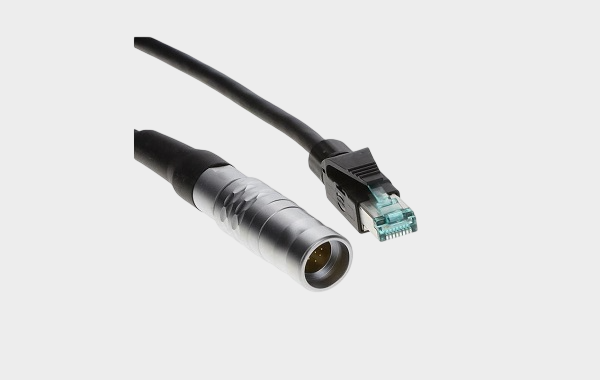

At the same time, the circular cable can achieve mixed transmission of signals, power, and data. The multi-core sealed structure, combined with high-grade waterproof and dustproof capabilities, ensures that the entire system maintains stable performance in outdoor, oil-stained, or high-humidity environments.
Two, selection, compatibility, and domestic substitution scheme reference suggestions
When selecting ODU circular cables and connectors for actual projects, the following aspects can be judged and matched:
• The first is electrical parameters. Select the corresponding series according to working voltage, current size, impedance matching, and signal type (such as analog signal, high-speed data, radio frequency, etc.).
• The second is the mechanical condition. Factors such as insertion and extraction frequency, vibration resistance level, shock resistance capability, and mechanical life indicators need to be considered. For test platforms with frequent insertion and extraction, it is advisable to choose a series with a higher insertion and extraction life grade.
• The third is environmental conditions. Comprehensive assessment is needed to determine whether waterproofing, dustproofing, high temperature resistance, salt mist resistance, or sterilization tolerance is required, and select the corresponding protection level and shell material.
Regarding compatibility and domestic substitution, the following suggestions are made:
In some general specification sizes and interface scenarios, some domestic brands have already been able to provide alternative solutions with mechanical size compatibility, comparable electrical performance, and even functional enhancements, and have advantages in delivery time and cost. For high-end models in core fields such as medical and military, it is recommended to gradually implement the localization of alternatives through sample exchange testing, reliability verification, and small-scale introduction to ensure system stability and safety. At the same time, it is advisable to consider parameter-level, interface-level, or functional-level alternatives instead of simple外形仿制, in order to achieve higher overall cost performance.
ODU circular cable connection system occupies an important position in the international high-end interconnection field with its precise mechanical structure design, high reliable connection performance, and wide industry applicability. Scientific and reasonable model selection and compatibility evaluation are the key to ensuring equipment performance and reliable operation of the system. Research on domestic substitution and localization applications is becoming one of the important trends in the current industry development.
