Omnetics connector miniature cable domestic alternative direction

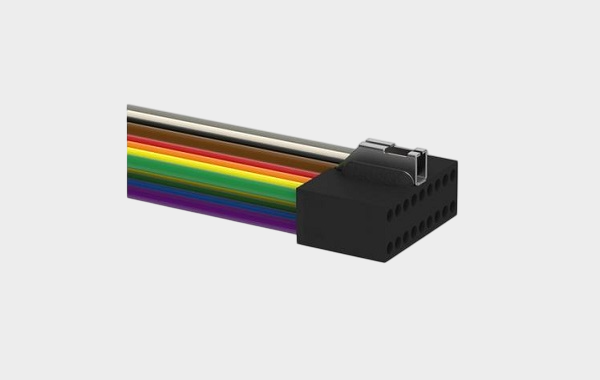

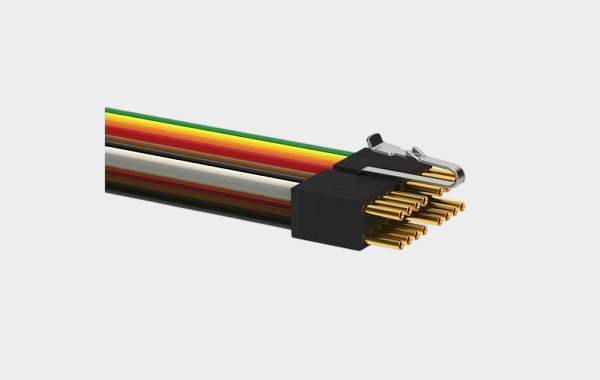

In today's high-end electronic equipment, interconnection technology has become one of the core factors affecting system performance and reliability. Whether it is in aerospace vehicles, military equipment, deep-sea exploration, medical precision instruments, or industrial automation systems, miniaturized, high-density, and high-reliability cable assemblies are indispensable key components. As an industry-known manufacturer of miniature connectors and cable harness solutions, Omnetics is recognized globally for its stability and customization capabilities. This article focuses on its miniature rectangular cables (Micro-D/Nano-D type cable harnesses) and includes selection suggestions and references for domestic alternatives to help readers better understand its technical advantages.

One, the core advantages of the Omnetics brand and miniature rectangular cable

Omnetics Connector Corporation is headquartered in Minnesota, USA, and is a professional manufacturer in the field of miniature and high-density connectors. Its products are widely used in aerospace, defense, medical, robotics, and harsh industrial environments. The Micro-D and Nano-D rectangular cables of Omnetics use the unique Flex-Pin elastic pin design, providing a stable multi-point contact method that maintains excellent conductive performance in vibration, shock, and thermal cycle environments. In addition, Omnetics' rectangular cables have advantages such as wide temperature resistance, high density, miniaturization, and long-life insertion and extraction. Some series can work in an environment ranging from -55℃ to +200℃, suitable for key equipment with limited volume and weight. To meet complex environmental requirements, Omnetics also provides waterproof cables, shielded cables, flat ribbon cables, and mixed signal cable harnesses with diverse customization capabilities, and can provide enhanced packaging and backshell solutions in electromagnetic interference and corrosive environments.

Part Two: Reliability Performance in Extreme Environment Applications and Selection and Compatibility Replacement Suggestions
In extreme environment applications, the advantages of Omnetics' miniature rectangular cables are particularly prominent:
High reliability contact system: The Flex-Pin multi-point contact structure can effectively improve the reliability of the system under impact and strong vibration conditions.
  Wide temperature tolerance: The high-temperature version supports up to 200°C, suitable for scenarios with large temperature differences such as aviation, rockets, engine compartments, and outdoor equipment.
  Delicate and compact structure: The rectangular interface is more advantageous in space-limited devices, while ensuring high-density pin arrangement.
  Various cable configurations available for customization: supports high-speed data, power hybrid, and signal harness combinations, capable of matching different application requirements.
High insertion-extraction lifespan: Some series can support thousands of insertions and extractions, suitable for systems with frequent maintenance cycles.
In terms of selection and domestic substitution, the following suggestions can be referred to:
• Judge whether the reinforced version is needed according to the application environment, such as series with high temperature resistance, bend resistance, or enhanced shielding ability.
  Follow the spacing, pin count, and arrangement of Omnetics Micro-D and Nano-D for compatibility and alternative selection. The domestic solution must ensure compliance with MIL-DTL-83513 or similar standards, especially focusing on temperature, vibration, and insertion/extraction life parameters.
  If customized domestic cables are needed, cable manufacturers can be requested to process based on the specifications of the original model, including wire materials, shielding structure, and connection methods.
  Special attention should be paid to impedance control and shielding layer structure for alternative solutions for high-speed signals (such as Ethernet, differential high-speed lines) to ensure signal integrity.

Omnetics miniature rectangular cable has become one of the core connection solutions in aerospace, military, high-end industry, and precision instrument industries, thanks to its excellent miniaturization design, sturdy and durable structure, wide temperature range, high reliability, and flexible customization capabilities. Choosing the right connectors and cable components in system design has a decisive impact on the reliability, lifespan, and performance of the overall equipment. Against the backdrop of the accelerated trend of domestic substitution, R&D for domestic production based on the prototype structure and performance features of Omnetics is becoming an important direction in the industry.
We have been focusing on the domestic substitution research and market application solutions for Omnetics series connectors and cable components. If you are looking for domestic substitution products for this brand, original factory replacement cables, or have procurement and sample needs, welcome to contact Manager Zhang.18665383950, same WeChat number). Looking forward to in-depth discussions and cooperation with more customers and industry partners.
