Extremely fine coaxial cables offer advantages and application scenarios in precision electronic equipment.

In the field of high-speed data transmission and precision electronic equipment, ultra-thin coaxial cables (Micro Coaxial Cable) are favored for their small size and high performance. They are widely used in laptops, tablets, mobile phones, medical imaging equipment, industrial testing instruments, and high-resolution camera modules. To understand their impact on signal quality, one must start with the structural design, truly comprehending the unique advantages of this cable material in high-speed interconnects.

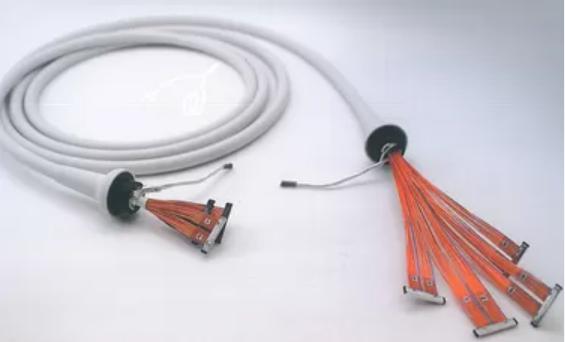

The structural characteristics of extremely fine coaxial beam束

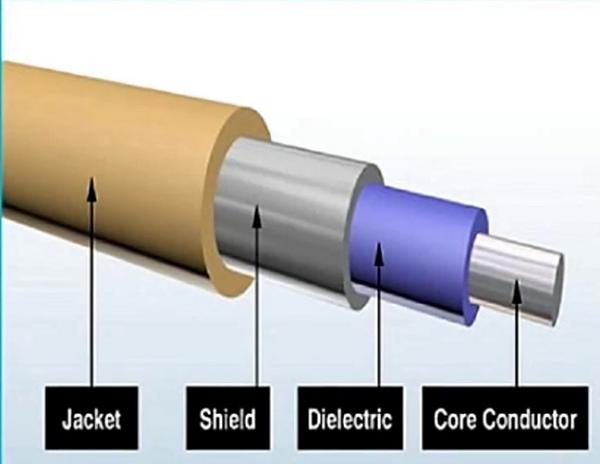

The construction of ultra-fine coaxial cables is precise and complex, mainly consisting of the inner conductor, insulating layer, shielding layer, and outer sheath. The inner conductor usually employs silver or tin-plated high-conductivity copper wire to achieve efficient transmission of high-speed signals. The insulating layer uses materials with excellent dielectric properties, such as polytetrafluoroethylene (PTFE) or polyethylene (PE), to reduce signal attenuation and dielectric loss. The shielding layer is mainly made of woven copper mesh or aluminum foil, which can effectively resist external electromagnetic and radio frequency interference, thus ensuring the purity of the signal. The outermost sheath is made of wear-resistant and high-temperature-resistant materials such as PVC or TPE, to enhance the overall flexibility and mechanical protection capability. Due to the line diameter being as small as 0.3mm or even finer, ultra-fine coaxial cables can complete complex wiring in extremely limited spaces, providing flexible and reliable transmission paths for micro-devices.

The influence of structure on signal quality
Each layer of an ultra-fine coaxial cable directly determines its signal performance. First, the accuracy of impedance matching is the core factor affecting signal integrity; good impedance control can reduce signal reflection and distortion, especially suitable for high-speed interfaces such as LVDS, MIPI D-PHY. Secondly, the density of the shielding layer plays a decisive role in anti-interference capability; high-density shielding not only prevents external noise from entering but also prevents signal leakage, which is particularly important for 4K or 8K image transmission. In addition, the selection of conductors and insulating materials affects the attenuation rate of high-frequency signals; high-purity copper and low-loss insulating materials can significantly reduce signal attenuation, making transmission more stable. Flexibility is also a key indicator affecting reliability; ultra-fine coaxial cables can still maintain stable performance in repeated bending or dynamic motion, thereby extending the overall service life.

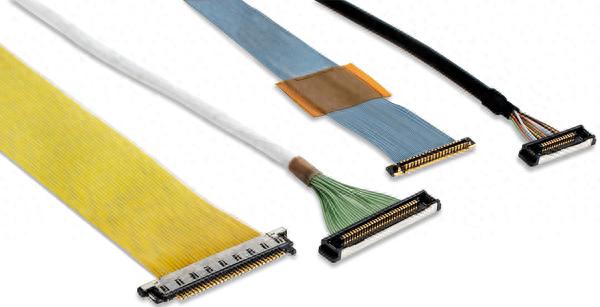

Typical Application Scenarios

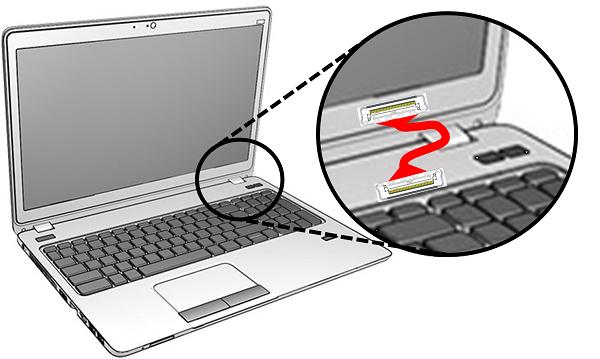

In laptop computers, extremely thin coaxial cables are used for high-speed signal transmission between the motherboard and the display, ensuring smooth image quality and accurate color reproduction. In miniature devices such as medical endoscopes, they not only have extremely high flexibility but also enable high-definition image transmission in confined spaces. The camera modules of drones also benefit from their lightweight characteristics, reducing flight load while ensuring stable and reliable long-distance video transmission. These applications all reflect the core position of ultra-thin coaxial cables in modern high-tech products.

Extremely fine coaxial cable束 has become an indispensable key component in the field of high-speed data transmission due to its miniaturized structure, high signal integrity, and excellent anti-interference performance. Its design not only reflects the precise integration of materials and processes but also represents the trend of electronic interconnection technology towards high density and high-speed development. In the future, with the popularization of 5G communication, AI devices, and high-resolution imaging systems, the demand for extremely fine coaxial cables will continue to grow.
