The key role of extremely fine coaxial cable bundles in intelligent devices

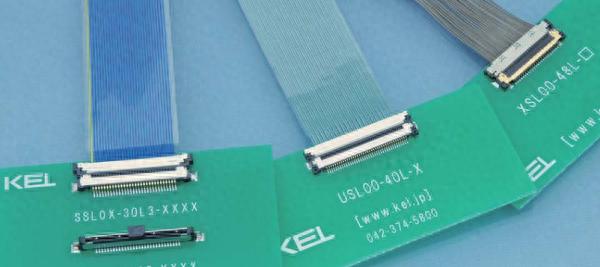

In modern electronic devices, especially in smartphones, tablets, and various portable terminals, ultra-fine coaxial cables (Micro Coaxial Cable) play a crucial role. They are responsible for transmitting high-definition signals and high-speed data between the motherboard and core components such as the display and camera. Although small in size, they bear the important mission of ensuring the high-performance operation of the device, serving as the truly hidden "signal artery" within.

The definition and characteristics of extremely fine coaxial beam

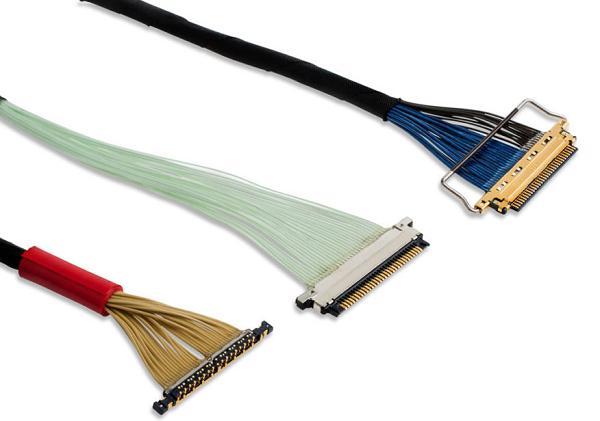

A super-fine coaxial cable bundle is a precision cable designed to meet the needs of space constraints and high-speed signal transmission. It consists of an inner conductor, insulation layer, outer conductor, and outer sheath, featuring a compact structure and reasonable design, which enables efficient transmission in extremely small spaces. Unlike traditional RF coaxial cables, the super-fine coaxial cable bundle focuses more on internal signal interconnection within devices, such as connections between the motherboard and camera, display module, and touch screen. Its small size, stable signal, and strong anti-interference capability make it an indispensable core connection component in portable devices.

Part Two: Structural Composition and Signal Transmission Principle

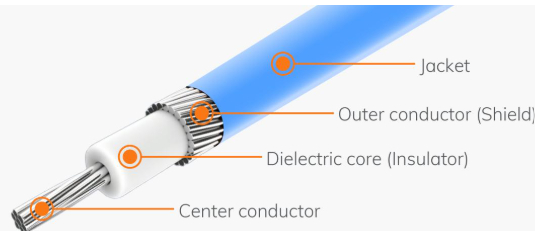

The performance of extremely thin coaxial cable束 originates from its precise structural design. The inner conductor is typically made of highly conductive copper or silver-plated copper materials to ensure high-speed signal transmission. The insulation layer is chosen for its excellent dielectric properties, such as PTFE, to isolate the inner and outer conductors and prevent signal leakage. The outer conductor is composed of a metal woven mesh or aluminum foil, which serves as electromagnetic shielding to resist external interference. The outermost sheath provides additional mechanical protection, allowing the cable束 to maintain stability in complex environments. Through this coaxial structural design, signals can maintain low loss and high fidelity during transmission, providing a solid guarantee for high-resolution images and high-speed data transmission.

Typical Application Fields

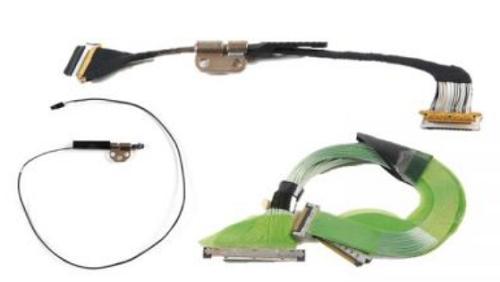

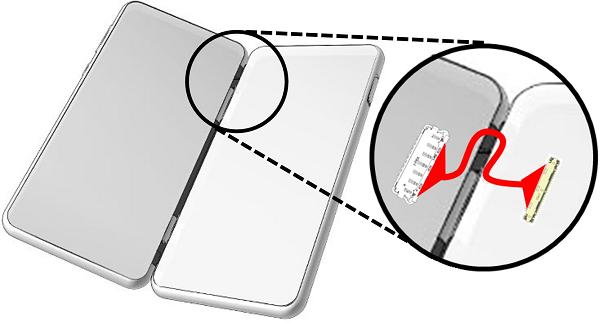

Extremely thin coaxial cable束 is widely used in various small electronic devices that require precise signal transmission. Smartphones and tablets use it to connect the motherboard with the touch screen, camera module, and biometric module, achieving fast and stable data transfer. Laptops and monitors complete the high-definition video signal transmission between the motherboard and the display panel through it. Digital cameras and security cameras also rely on extremely thin coaxial cable束 to maintain clear and stable image signals. Due to its high flexibility and excellent anti-interference capability, this cable束 can maintain a stable working state in small and complex structures.

Four, advantages and challenges coexist
The maximum advantage of extremely thin coaxial cable bundles lies in their high space utilization, stable signal transmission, and light weight, making them very suitable for compact and portable devices. The high-density shielding structure effectively reduces electromagnetic interference, enabling them to maintain excellent transmission performance in complex electromagnetic environments. However, the manufacturing process of such cable bundles requires extremely high standards, and precision must be strictly controlled during production to ensure impedance matching and signal integrity. Moreover, due to the use of high-quality materials and precision manufacturing techniques, their cost is relatively high, which poses higher requirements for the technological capabilities of the production enterprises.

Extremely fine coaxial cable bundles are small in size, but they are an indispensable key component in modern electronic devices. They not only support stable transmission of high-definition signals and high-speed data, but also promote the development of devices towards thinness and intelligence. With the widespread application of technologies such as 5G, AI, and VR, the demand for this high-performance cable bundle will continue to grow.
