Categorization：Replacement Connector
Compatible/Replacement for TE|2-964302-1 Automotive Connector is a: Automotive Terminal, Lug, Mating Lug Width 2.8 mm [.11 in], Lug Thickness 0.8 mm [.031 in], Wire Gauge 17 - 13 AWG, Timer Connector System [Offers TE|2-964302-1 Automotive Connector Replacement].
------------------------------------------------------------------------------------------------
1, Compatible / Alternative to TE|2-964302-1 Automotive Connectors Product Related Attributes:
| Product Type Characteristics | Sealable : Yes |
| Primary Locking Feature: Locked Gun | |
| Main Characteristics | Terminal Seal Type : Single Wire Seal (SWS) |
| Characteristics of contacts | Crimp Type : F Type Crimp |
| Typical Rated Current (A): 30 | |
| Plating material for wire terminal termination area: tin | |
| Terminal Manufacturing : Stamping & Molding | |
| Terminal size : 2.8mm | |
| Terminal Type : Male | |
| Width at male end of butt joint : 2.8 mm [ .11 in] | |
| Butt Male Thickness : .8 mm [ .031 in] | |
| Contact Plating : Tin (Sn) | |
| Termination Characteristics | Cable termination method : Crimp |
| Product termination : Wire | |
| sizes | Compatible Insulation Diameter Range: 3.4 mm [.134 in] |
| 线径 (AWG): 17 - 13 | |
| 线径 (mm²): 1 - 2.5 | |
| 线径查找 (mm²): 1, 1.25, 1.5, 2, 2.5 | |
| 线径查找 (AWG): 13, 14, 15, 16, 17 | |
| Male Length: 25 mm [.98 in] | |
| operating environment | Insulation Options: Non-Insulated |
| Operating temperature (max.) : 130 °C [ 266 °F] | |
| Operating Temperature Range : -40 - 130 °C [ -40 - 266 °F ] | |
| Operation/Application | Compatible with wire base materials : Copper |
| Compliance with KOMAX Guidelines for Automatic Component Insertion : Year, according to version 5.0 (March 2018) | |
| industry standard | Institutional/standard product compatibility : IEC 664/664A (DIN VDE 0110) |
| Packaging Characteristics | Encapsulation method : Reel |
| Package quantity : 3300 | |
| (sth. or sb) else | Terminal conduction : 25 - 40 A (normal power) |
-----------------------------------------------------------------------------------------------

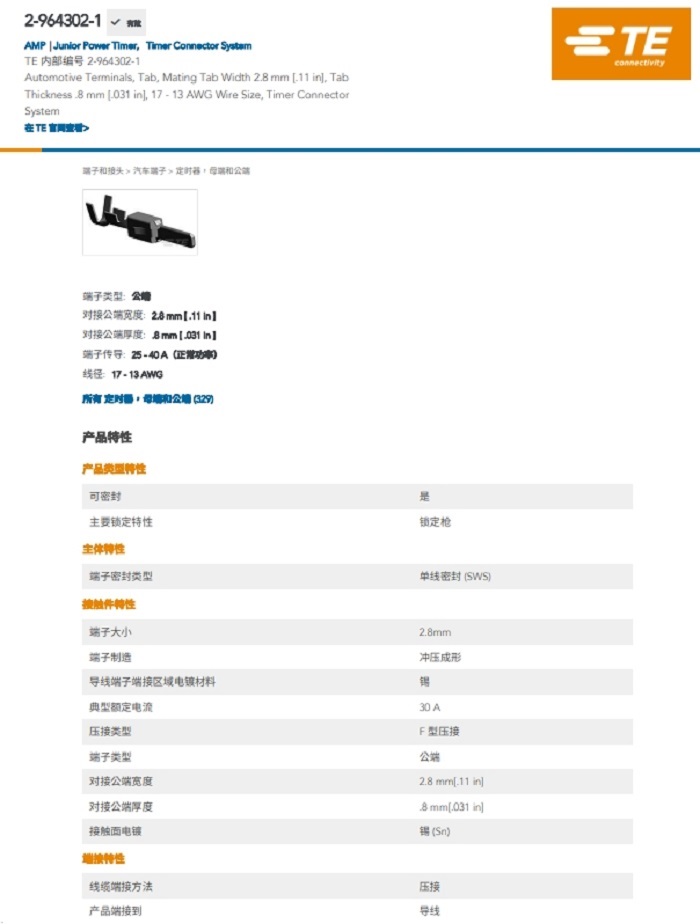

2, Compatible / Alternative to TE|2-964302-1 Automotive Connectors Product Specification:
------------------------------------------------------------------------------------------------
3, Compatible / Alternative TE|2-964302-1 Automotive Connectors Product Part Number / Model Number List:
| 2-964302-1 |
------------------------------------------------------------------------------------------------
4, Automotive Connectors - Offer Compatible TE|2-964302-1 Automotive Connector Replacement This product seller:
We are a professional distributor of automotive connectors, providing TE|2-964302-1 compatible automotive connector substitutes, as well as a professional distributor/producer/seller of various {connectors|wire harnesses|cables}; if you want to buy or know what connectors, harnesses and cables we can provide you with solutions, please feel free to contact us through the following ways.
