Bellwether(贝尔威勒)-2.0PH压接端子(PDB Management Connector - Terminal) is a type of electrical connector used for terminating wires in high-voltage applications. It is designed to provide a reliable and secure connection. Here are some of its features: - High-voltage capability - Push-in connection technology - Low contact resistance - Easy installation - Robust and durable construction - Available in various sizes and ratings - Suitable for use in harsh environments
A crimped terminal is a type of electrical connection that joins two or more electrical conductors together. It is created by inserting a wire into a terminal and then crimping it to secure the connection.
Characteristics of crimped terminals include:
1. High electrical conductivity
2. Good mechanical strength
3. Easy to install and remove
4. Durable and reliable
5. Available in various sizes and shapes to fit different types of wires and applications
In modern electronic and electrical connections, terminals, as important components that connect wires to equipment or between wires, are widely used in industries such as automobiles, home appliances, industrial equipment, and communication equipment. Press connectors are a type of terminal that connects wires to terminals through special tools, forming a stable conductive connection.
What is a crimped terminal?
Crimp Terminal refers to the method of fixing the wire and terminal by mechanical crimping without relying on welding or other bonding methods. This method utilizes the tight contact between the terminal metal and the wire to achieve excellent electrical performance and mechanical strength.
The terminal is usually made of metal materials such as copper, brass, or phosphor bronze, and the surface is often treated with tin plating, nickel plating, or silver plating to improve conductivity and corrosion resistance. When connecting to the wire, it requires the use of special crimping pliers, crimping molds, or fully automatic crimping equipment to ensure the quality of the crimping.
The characteristics of crimp terminals:
Connection reliable
The press fit process can achieve large area contact between metals, effectively reduce contact resistance, and ensure good conductivity.
Welding-free, easy to operate
No soldering or high-temperature operations are required, avoiding issues such as false welding, loose welding, and thermal damage due to poor welding, which is suitable for automated production.
Good vibration resistance and fatigue resistance
The junctions have excellent mechanical strength and vibration resistance, are not easily loose after long-term use, and are suitable for high-intensity environments such as automobiles and aviation.
Diverse specifications, strong adaptability
According to different wire cross-sections, connector models, and application environments, there are various shapes and sizes of terminals available, such as circular terminals and pin terminals.
Insulation terminals, cold forging terminals, U-shaped terminals, fork-shaped terminals, etc.
Easy to maintain and replace
The wiring method of the compression terminals is convenient for disassembly and maintenance, and is widely used in electrical equipment that requires frequent plugging and unplugging or maintenance.

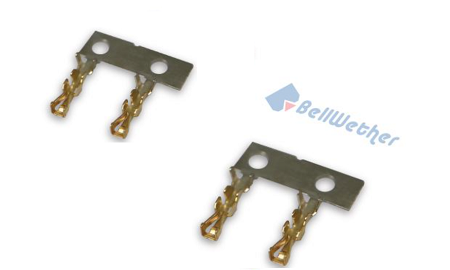

Bellwether (贝尔威勒)2.0PH Crimp Terminal (PDB Management Connector - Terminal)Product illustration:
BellwetherLe)-2.0PH Crimp Terminal (PDB Management Connector - Terminal)Material number details:
70006-1021，70006-1022，70006-1023，70006-1024，70006-1025，70006-1121，70006-1122，70006-1123，70006-1124，70006-1125
How to purchase or learn about Bellwether 2.0PH pressure connector (PBD connector terminal) receptacle connector products?
Suzhou Huichengyuan Electronic Technology Co., Ltd.-agent sales Bellwether (Bellwether) 2.0PH crimp terminal (PBD connector terminal) receptacle connector products; If you want to buy or learn about Bellwether (Bellwether) connectors, harness products and solutions, please contact us through the following methods.
Contact person: Manager Zhang, Mobile: 18913228573 (WeChat same number), Email: King_Zhang@LPMconn.com, Phone: 0512-36851680, QQ: 2991550717
Address: No. 2 Yongran Road, Zhangpu Town, Kunshan City, Suzhou Province
