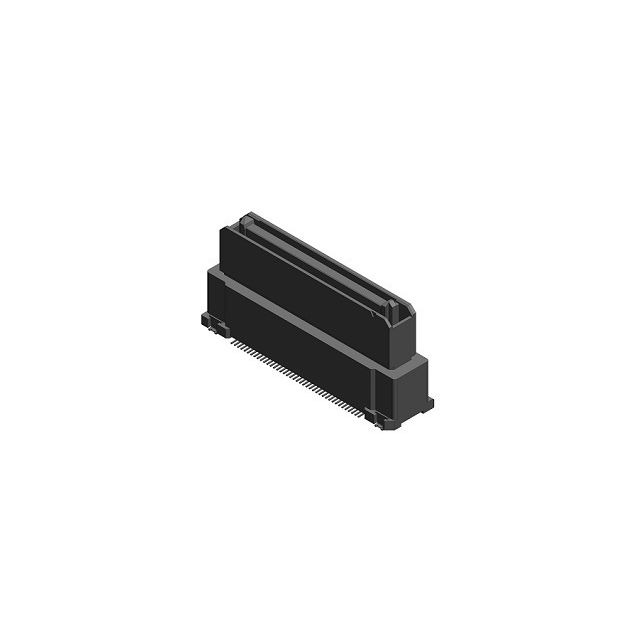

JAE MA01F080VACBR150 connector product overview:

	Manufacturer	JAE
	Manufacturer Part Number	MA01F080VACBR150
	Product Description	CONN FLOATING SIDE STR 80 POS,80 Position Connector Plug, Central Contact with Surface Mount Gold Plated

JAE MA01F080VACBR150 connector product attributes:

Introduction to JAE MA01F080VACBR150 connector product (series):

JAE Electronics' MA01 series rectangular connector is a high-density board-to-board connection solution, designed for electronic devices that require precise connections and high reliability. This model features an 80-pin double-row connector with a 0.64mm pitch, enabling efficient signal transmission in compact layouts. The product uses a central contact with a structure, combined with board guide design, which helps ensure alignment and stable connection during insertion and removal. Surface mount technology facilitates automated production and improves assembly efficiency. The contact surface is gold-plated with a plating thickness of 4.00µin (0.100µm), effectively enhancing conductivity and corrosion resistance, suitable for high-frequency insertion and removal or use in harsh environments. The mating stack height is 20mm, and the board height is 18.30mm, suitable for multi-layer board connection requirements. Available in roll, cut tape, and custom Digi-Reel® packaging, it is widely used in industrial equipment, communication systems, and high-end electronic products.

JAE MA01F080VACBR150 connector document and media:

JAE MA01F080VACBR150 connector genuine|replacement product related instructions:

We focus on the现货 supply of (JAE) brand connectors and are committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine and high-performance alternatives, which have undergone strict testing to ensure stability and efficiency. Welcome to contact us through the contact information below on the document page!
