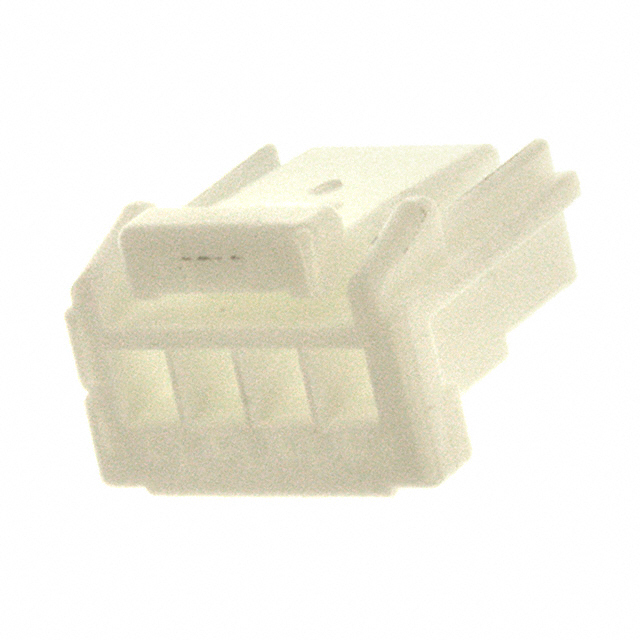

JST connector - Provides an overview of the JST ZER-04V-S connector product
 | Manufacturer | JST |
| Manufacturer Part Number | ZER-04V-S | |
| Product Description | CONN RCPT HSG 4POS 1.50MM, 4 rectangular connectors - shell receptacle natural 0.059" (1.50mm) |
JST Connector - Provides product attributes of JST ZER-04V-S connector:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Rectangular connector housing | |
| Manufacturer | JST Sales America Inc. |
| Series | ZE |
| Connector type | Socket |
| Touch head type | Mother socket |
| Needle positions | 4 |
| spacing | 0.059"（1.50mm） |
| Row number | 1 |
| Spacing | - |
| Installation type | Free suspension |
| Terminal contact | Soldering |
| Fastener type | Register socket |
| Color | Natural |
| Feature | - |
| Insulating material | PBT (polybutylene terephthalate) |
| Operating temperature | -25°C ~ 85°C |
| Note | Touchless |
JST Connector - Introduction to the JST ZER-04V-S connector product series
JST ZER-04V-S is a high-density rectangular connector housing introduced by JST Sales America Inc., belonging to the ZE series, and designed for precise connections in small electronic devices. This connector is of socket type, with 4 female-shaped socket pins, a single-row structure, and a pitch of 1.50mm (0.059"), enabling efficient wiring in limited spaces.
ZER-04V-S employs a press-fit termination method, supports free-hanging installation, and is equipped with a locking bracket structure, effectively enhancing the firmness and usability safety of the connection. Its housing is made of natural color polybutylene terephthalate (PBT) material, which has excellent mechanical strength, heat resistance, and insulation properties, suitable for operating environments of -25°C to 85°C. The product does not contain contacts, allowing users to flexibly select according to specific requirements. ZER-04V-S is very suitable for connection solutions requiring miniaturization and high reliability in consumer electronics, industrial automation, communication equipment, and other fields.
JST connector - Providing JST ZER-04V-S connector documentation and media:
| Resource type | Link |
| Specification Sheet | ZE Connector Datasheet |
JST connector - Provide JST ZER-04V-S connector genuine | Alternative product related instructions:
We focus on the现货 supply of (JST) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include genuine original products and high-performance alternatives, which have been strictly tested to ensure stability and efficiency. Welcome to contact us via the contact information below on the document page.
