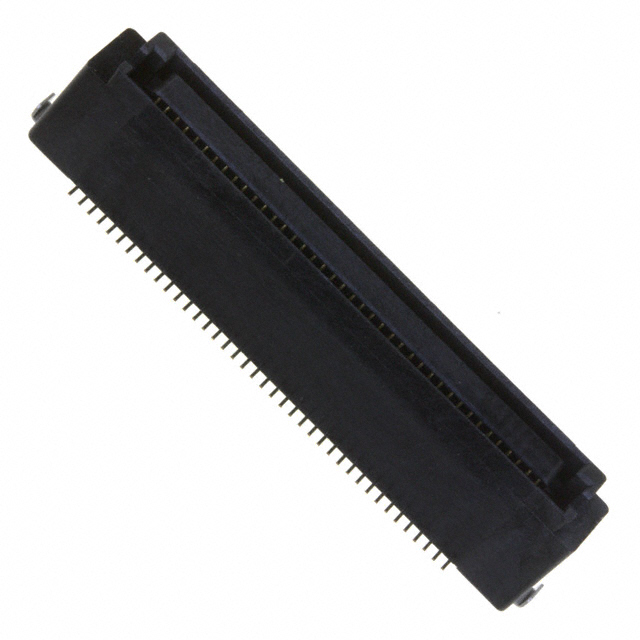

JAE KX14-80K8DE connector product overview:
 | Manufacturer | JAE |
| Manufacturer Part Number | KX14-80K8DE | |
| Product Description | CONN RCPT 80POS SMD GOLD,80 position connector socket,overmolded contact surface mount type gold plated |
JAE KX14-80K8DE connector product attributes:
| Type | Description |
| Category | Connector, interconnect device |
| Rectangular connector | |
| Array, edge type, sandwich type (plate-to-plate) | |
| Manufacturer | JAE Electronics |
| Series | KX14 |
| Packaging | Tray |
| Connector type | Socket, outer casing contact |
| Needle count | 80 |
| Spacing | 0.031"（0.80mm） |
| Arrangement of rows | 2 |
| Installation Type | Surface mount type |
| Characteristics | Guideway, fixed weld tail |
| Touch head surface treatment | Gilded |
| Contact surface treatment thickness | 4.00µin（0.100µm） |
| Combined stacking height | 10mm，11mm，12mm |
| Board height | 0.376"（9.55mm） |
JAE KX14-80K8DE connector product (series) introduction:
The KX14 series from JAE Electronics is a high-density rectangular board-to-board connector, specifically designed for compact electronic devices that require stable connections and precise alignment. The series features a socket-style structure with 80 pins, a double-row design, and pin spacing of 0.80mm, meeting the requirements for high-speed signal transmission and high-density layout. The KX14 series is surface mountable, with board guide and fixed welding tail functions, which effectively improve assembly positioning accuracy and connection stability, suitable for automated welding environments. The contact surface is gold-plated with a thickness of 4.00µin (0.100µm), ensuring excellent electrical performance and durability. The product offers three joint stacking height options of 10mm, 11mm, and 12mm, with a board height of 9.55mm, providing flexibility to meet multi-layer board design requirements. The series is supplied in tray packaging, suitable for mass production applications of mid-to-high-end electronic devices, and is widely used in industrial control, communication equipment, and high-end consumer electronics fields.
JAE KX14-80K8DE Connector Document and Media:
| Resource type | Link |
| Specification Sheet |
JAE KX14-80K8DE connector genuine | replacement product related instructions:
We focus on the现货 supply of (JAE) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include genuine and high-performance alternatives, which have undergone strict testing to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
