Bellwether(贝尔威勒) 80159-2241 M.2 interface 2.15H connector related description:
Bellwether is a company focusing on the research and development and manufacturing of precision connectors, established in 2010 with its headquarters located in Kunshan, China. Its products are widely used in consumer electronics, communication equipment, and industrial control fields. The M.2 In Board Type connector with part number 80159-2241 features a 0.5mm pin pitch, supports 67 circuit channels, has a rated current of 0.5A, and a working voltage of 50V. The center height of this connector is 2.15mm, the DIP pin length is 0.7mm, the mechanical key is M-type, and it can withstand up to 60 contact cycles, suitable for operating environments ranging from -40℃ to 80℃.
The terminal material of this product is copper alloy, and the shell material is high-temperature thermoplastic, which has good heat resistance and mechanical strength. Its maximum contact resistance is 55 milliohms, insulation resistance is not less than 500 megohms, and withstand voltage can reach 300V, ensuring the stability and safety of the connection. The 80159-2241 connector is suitable for applications requiring high-density, small-sized connection solutions, such as ultra-thin laptops, tablets, and embedded systems, etc. Its compact design and excellent electrical performance make it an indispensable component in modern electronic devices.

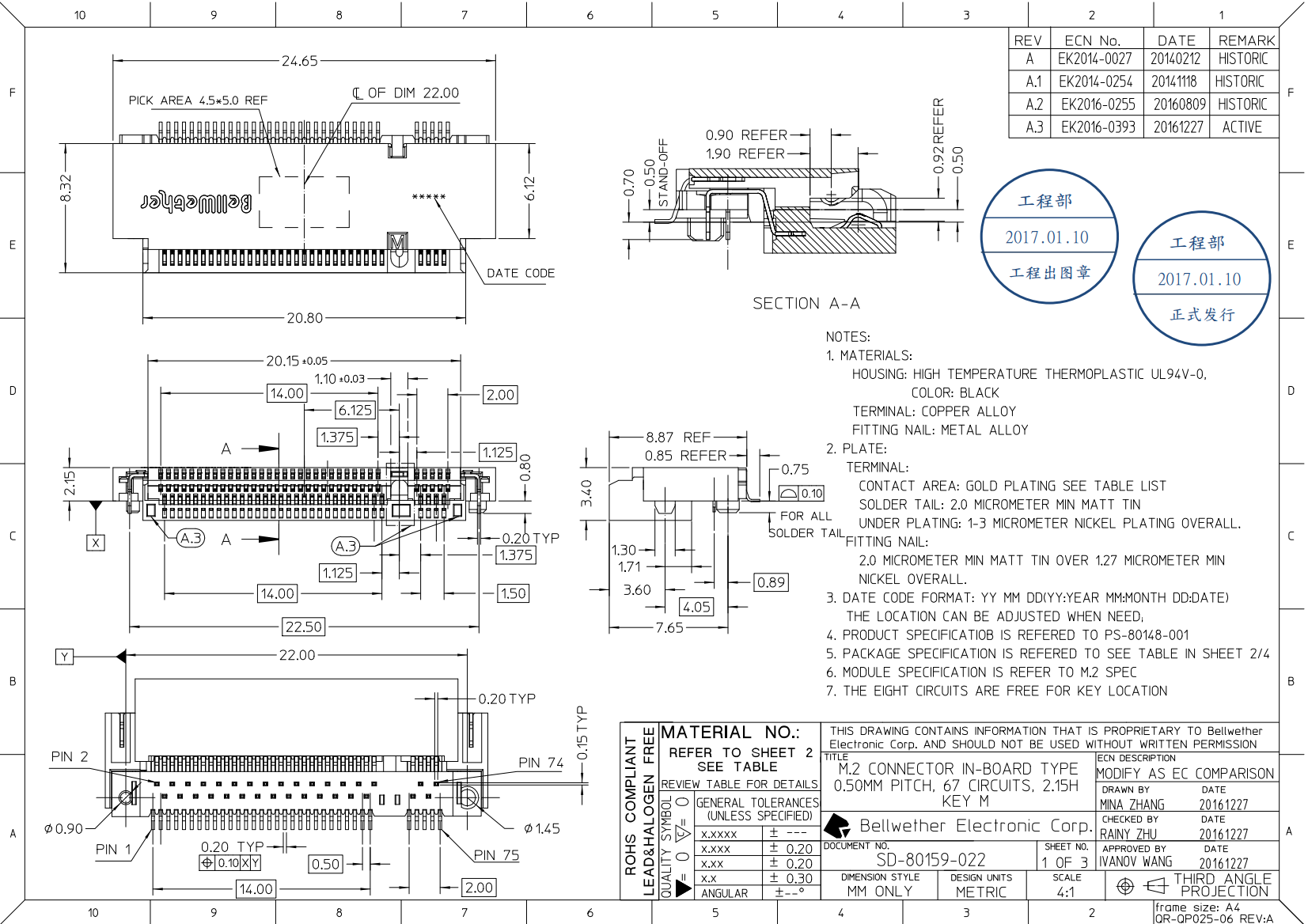

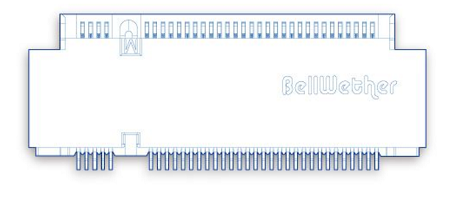

Bellwether80159-2241 M.2 interface 2.15HConnectorProduct drawings:
Bellwether80152-224X M.2 interface 2.15HConnectorProduct material number tail椎interpretation:
x = Different Packing Specification (Tape & Reel)
* Contact Plating
1=Gold Flash
2=Gold Plated, 5u”
3=Gold Plated, 10u”
4=Gold Plated, 15u”
5=Gold Plated, 30u”
Bellwether80152-224* M.2 interface 2.15HConnector product material number details:
80159-2241，80159-2242，80159-2243，80159-2244，80159-2245
