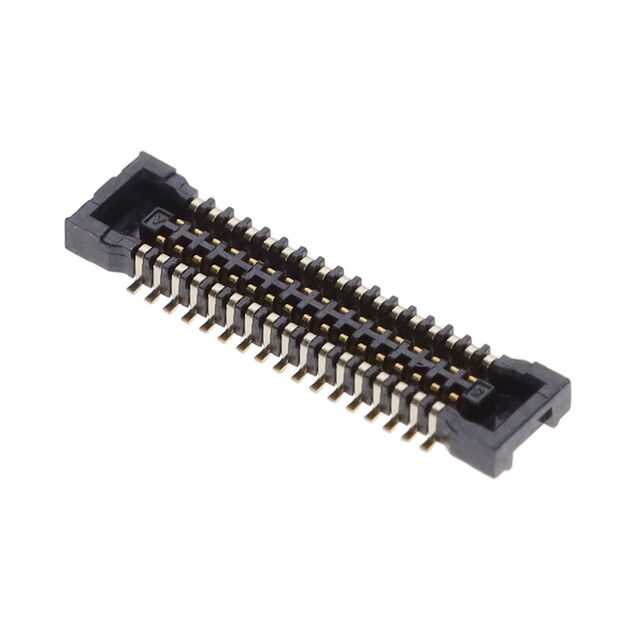

KYOCERA 245804034000829 connector product overview:
 | Manufacturer | KYOCERA |
| Manufacturer Part Number | 245804034000829+ | |
| Product Description | RECPT - 0.4MM PITCH - 34 POS - 0,34 Position Connector Receptacle, Central Contact, Surface Mount, Gold Plated |
KYOCERA 245804034000829 connector product attributes:
| Type | Description |
| Category | Connector, interconnection device |
| Rectangular connector | |
| Array, edge type, sandwich type (board-to-board) | |
| Manufacturer | KYOCERA AVX |
| series | Super Microleaf 5804, Kyocera |
| Packaging | Coil (TR) |
| Connector type | Socket, centrally with contact point |
| Needle count | 34 |
| Spacing | 0.016"（0.40mm） |
| Numbering rows | 2 |
| Installation type | Surface Mount Technology |
| Touch head surface treatment | Gilded |
| Combined stacking height | 0.9mm |
| Board height | 0.033"（0.84mm） |
KYOCERA 245804034000829 Connector Product (Series) Introduction:
The KYOCERA AVX Super Microleaf 5804 series connector is a high-performance rectangular connector, specifically designed for board-to-board applications. This product features a socket design with central contacts, having 34 pin positions with a pitch of only 0.4mm, suitable for precision electronic devices. The series connector uses surface mount technology (SMT) installation, with a height of only 0.84mm on the board and a mating stack height of 0.9mm, meeting the needs of ultra-thin electronic devices. The contact surfaces are gold-plated, ensuring excellent conductivity and corrosion resistance, enhancing the reliability and durability of signal transmission. The Super Microleaf 5804 series connector is widely used in high-density electronic products such as smartphones, wearable devices, medical instruments, and other miniaturized electronic devices, making it an ideal choice for small-scale, high-reliability connection solutions.
KYOCERA 245804034000829 Connector Documentation and Media:
| Resource type | Link |
| Specification Sheet | 5804 Series Datasheet |
KYOCERA 245804034000829 Connector Genuine | Replacement Product Description:
We focus on the stock supply of (KYOCERA) brand connectors, committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine and high-performance alternatives, strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below the document page!
