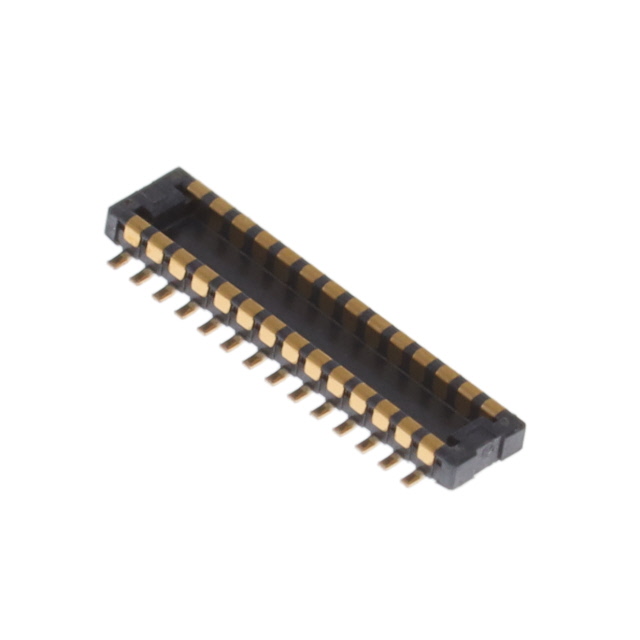

JAE WP7-P024VA1-R8000 Connector Product Overview:
 | makers | JAE |
| Manufacturer's Code | WP7-P024VA1-R8000 | |
| Product Description | CONN PLUG 24POS SMD GOLD,24 pos Connector Plug, Outer Shroud Contacts Surface Mount Gold Plated |
JAE WP7-P024VA1-R8000 Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Array, Edge-Type, Mezzanine (Board-to-Board) | |
| makers | JAE Electronics |
| range | WP7 |
| Connector Type | Plug, Outer Shroud Contacts |
| pin position | 24 |
| spacing | 0.016"（0.40mm） |
| number of sets (of clothes, etc.) | 2 |
| Installation type | Surface Mount |
| characterization | fixed brackets |
| Contact surface treatment | gilt |
| Contact surface treatment thickness | 4.00µin（0.100µm） |
| Splice Stack Height | 0.7mm |
| board height | 0.020"（0.50mm） |
| Basic Product Number | WP7-P024 |
JAE WP7-P024VA1-R8000 Connector Product (Series) Description:
JAE Electronics introduces the WP7 Series Rectangular Connector, a high-density, high-reliability array-edge mezzanine (board-to-board) connector. It features a surface mount type installation, 24-pin plug outer shell contact design with a very small pitch of 0.40mm and a 2-row design for efficient connections in limited spaces.The contact surface of the WP7 connector is gold-plated to a thickness of 0.100μm, ensuring good electrical contact and corrosion resistance. Its fixed solder tail feature enhances the stability of the connection and offers a mating stack height of 0.7mm and an on-board height of 0.50mm, ensuring flexibility and compatibility in different application scenarios. As a specialized connector, the WP7-P024 series is particularly suitable for electronic products that require high space density and connection quality, and is widely used in communications, consumer electronics, and other high-precision devices.
