JAE TX24-50R-LT-H1E Connector Product Overview:
 | makers | JAE |
| Manufacturer's Code | TX24-50R-LT-H1E | |

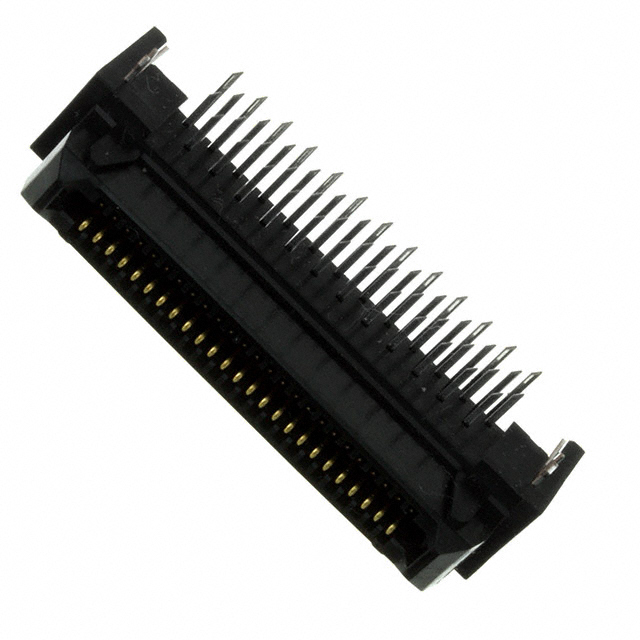

| Product Description | CONN RCPT 50POS R/A GOLD,50 pos Connector Receptacle, Outer Shroud Contacts Through Hole, Right Angle Gold Plated |
JAE TX24-50R-LT-H1E Connector Product Attributes:
| typology | descriptive |
| form | Connectors, Interconnects |
| Rectangular connectors | |
| Array, Edge-Type, Mezzanine (Board-to-Board) | |
| makers | JAE Electronics |
| range | TX24 |
| Connector Type | Receptacle, Covered Contacts |
| pin position | 50 |
| spacing | 0.050"（1.27mm） |
| number of sets (of clothes, etc.) | 2 |
| Installation type | Through Hole, Right Angle |
| characterization | plank used to cover nail holes in cypress bark roofing |
| Contact surface treatment | gilt |
| Contact surface treatment thickness | 4.00µin（0.100µm） |
| Splice Stack Height | - |
| board height | 0.354"（9.00mm） |
| Basic Product Number | TX24-50 |
JAE TX24-50R-LT-H1E Connector Product (Series) Description:
JAE Electronics introduces the TX24 Series Rectangular Connector, a high-performance array-type edge receptacle for board-to-board connections. The connector features 50 pins with a 0.050" (1.27mm) pitch and a row count of 2, making it suitable for compact electronic device designs. Its through-hole right-angle mounting simplifies installation and provides a stable electrical connection.The TX24 Series receptacle features a gold-plated contact finish with a 4.00µin (0.100µm) thick finish, which effectively improves the connector's corrosion resistance and transmission quality. The connectors also feature a board lock function to ensure a more robust and reliable connection for a wide range of industrial and consumer electronics products. In addition, the TX24 connector has an on-board height of 0.354" (9.00mm), and its structural design meets the needs of modern electronic equipment for miniaturization, performance, and durability, and is widely used in high-frequency, high-reliability electronic systems.
