I-PEX 82887-100B-02-D 32P high-speed signal transmission ultra-fine coaxial cable alternative

Starting from the internal space of high-end laptops: why are more and more high-speed wiring adopting extremely thin coaxial cables?

High-end laptops are continuously developing towards slimming down, high performance, and high-speed data transmission. The signal connections between the display, camera, and motherboard are therefore facing engineering challenges such as "smaller space, higher signal rate, and stricter wiring requirements." Especially in space-limited areas such as the screen hinge and display module, traditional cables with larger volume not only occupy valuable internal space but also increase the difficulty of structural design and wiring layout. Extremely thin coaxial cables can complete high-speed signal transmission under smaller wire diameters, making them an important choice for high-speed internal connections in high-end laptops and other precision electronic devices. The I-PEX CABLINE®-SS series adopts a 0.4mm Contact Pitch, vertical right-angle insertion and extraction, and horizontal out-line structure, with a Mated Height of 1.65±0.2mm, and emphasizes the narrow depth design that allows the cable assembly to pass through a small hinge structure after termination; the official also provides a high-speed transmission positioning of up to 16Gbps/Lane. For engineers, this means that during the structural design of the motherboard, display module, and hinge area, they can balance high-speed signal connections and wiring flexibility within limited space; for purchasers, it means that when choosing extremely thin coaxial cable assemblies, they cannot only compare the price of the cable material but also pay attention to connector size, PIN count, wire sequence, wire diameter, length, and the compatibility of the entire cable assembly.

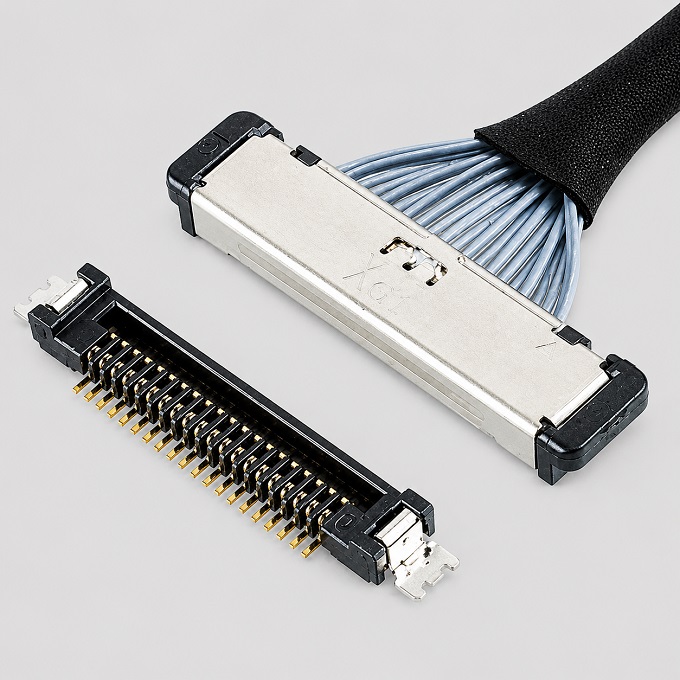

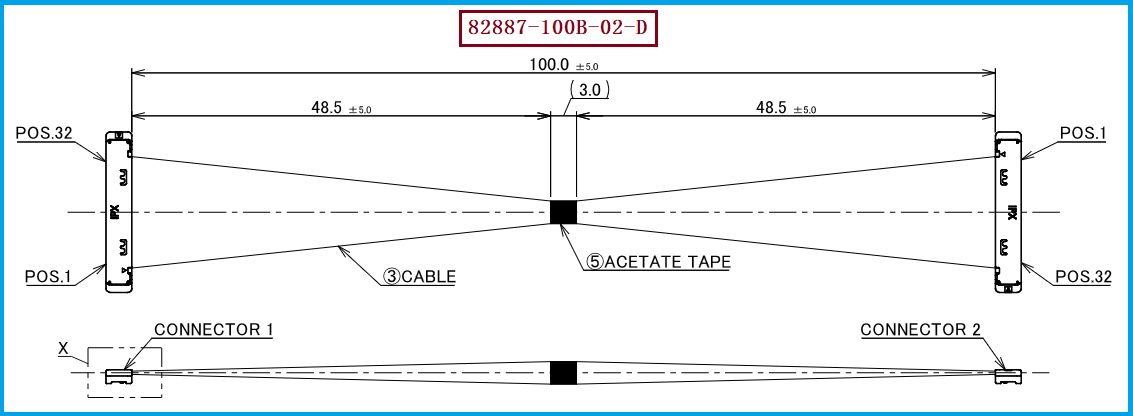

I-PEX 82887-100B-02-D: 32PIN, 100mm ultra-thin coaxial cable assembly, balancing high density and high-speed connection requirements

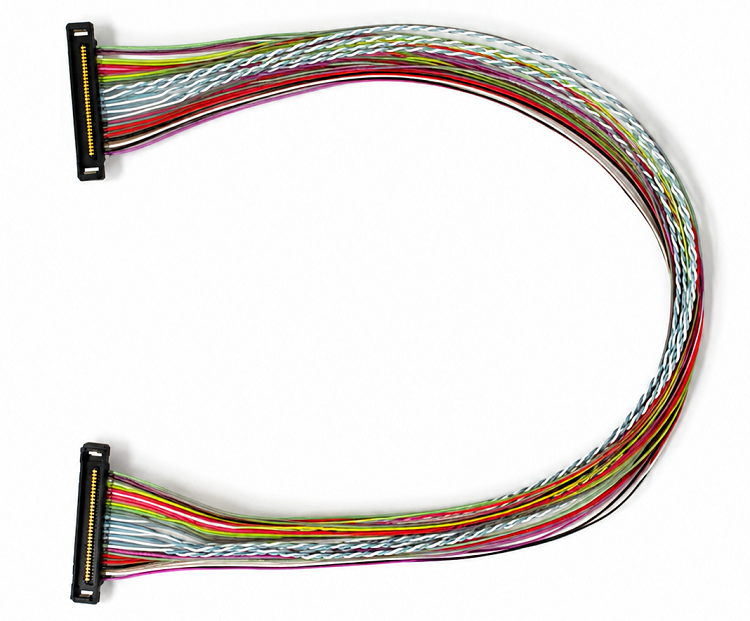

For high-density, high-speed connection applications, our company can provide a compatible and alternative ultra-fine coaxial cable assembly solution that corresponds to the I-PEX 82887-100B-02-D model. This model belongs to the CABLINE®-SS 32PIN Harness, and the official documentation corresponds to a standard structure of 32PIN, Micro-Coaxial Cable, AWG 40, length 100mm, and 1-N wire sequence. The I-PEX official product page also explicitly lists 82887 as a "32 pin, L=100mm, 1-N" CABLINE-SS standard cable assembly model. In terms of connector configuration, the cable assembly uses the wire end connector model 20373-R32T-06, which corresponds to the CABLINE-SS 32PIN Plug Housing. The配套资料显示20373-R32T-06 belongs to the 32PIN plug housing model, and the 32PIN corresponding Plug Cable Assembly is 20380-R32T-06, with the mating board end Receptacle model being 20374-R32E-31. For engineers, the key to developing such alternative cable assemblies is not simply achieving "32PIN+100mm", but rather to perform an overall match around the connector coordination, wire sequence definition, wiring structure, and overall machine space. For purchasers, they can directly use the I-PEX 82887-100B-02-D as the target material number for technical communication and confirmation of alternative requirements, reducing the selection error caused by incomplete model descriptions.

Three, from AWG36, 38, 40, 42, on the selection of ultra-fine coaxial cable bundles: what should engineers and purchasers pay attention to?

In actual projects, the same connector platform does not necessarily mean that all wire specifications can be used indiscriminately. The CABLINE®-SS data indicates that its Micro-Coaxial Cable supports AWG36, AWG38, AWG40, and AWG42, with different wire diameters corresponding to different application focuses: AWG40 is commonly used for high-speed signals, AWG38 can meet both high-speed and power supply requirements, AWG36 is more suitable for higher current applications, while AWG42 is more appropriate for ultra-thin wire applications with strict space size requirements. I-PEX official documents also clearly list the CABLINE-SS supported Micro-Coaxial Cable specifications of AWG36, AWG38, AWG40, and AWG42, while also specifically mentioning the注意事项 of characteristic impedance mismatch for AWG42. Therefore, for engineers, when choosing alternative cable sets, they should comprehensively determine the AWG specification based on high-speed signal requirements, impedance matching, wiring space, and current demand, rather than simply pursuing "the thinner the better"; for purchasers, it is necessary to confirm with suppliers the actual AWG specification used and whether it can meet the original design requirements for stable mass production. It should be particularly pointed out that the standard model I-PEX 82887-100B-02-D itself corresponds to AWG40 Micro-Coaxial Cable, while the CABLINE-SS connector platform where 20373-R32T-06 is located has a wire material adaptation range of AWG36, AWG38, AWG40, and AWG42, so when carrying out alternative development, the final basis should be the wire material specification and electrical requirements of the customer's actual project, rather than directly changing the original cable specification based on the connector support range.

Four, selection and compatibility and alternative solutions reference and suggestions: from "can replace" to "stable replacement"

For engineers and purchasers in need of finding compatible alternatives for the I-PEX 82887 series, it is recommended to prioritize confirmation according to the complete dimension of "Connector Model + PIN Quantity + Wire Material AWG + Cable Length + Wire Sequence + Device Installation Space". Taking I-PEX 82887-100B-02-D as an example, its core identification information can be summarized as CABLINE®-SS, 32PIN, 100mm, 1-N, and AWG40 Micro-Coaxial Cable; while the wire end connector is 20373-R32T-06. I-PEX officially lists 82887 as a 32PIN, 100mm, 1-N standard Harness, and positions CABLINE-SS as a Micro-Coaxial Connector platform for high-speed data transmission with 0.4mm Pitch and narrow depth. For procurement alternative projects, it is recommended to synchronize confirmation of connector compatibility, wire sequence, length tolerance, wire material specifications, impedance, and sample testing requirements before formal introduction. For engineering verification, focus should be given to actual installation space interference, bending routing, connection reliability, and high-speed signal integrity. Our company can provide: I-PEX 82887-100B-02-D compatible alternative cable solutions, which can match and manufacture ultra-fine coaxial cable specifications based on the actual application needs of customers, helping customers find more flexible supply options on the basis of the original products. For customers in need of domestic substitution, second supplier introduction, or bulk procurement, you can also directly use key parameters such as 82887-100B-02-D, 20373-R32T-06, AWG36/AWG38/AWG40/AWG42 as the basis for project communication, and our company will further confirm the final alternative specifications based on actual application.

High-end notebook choices of extremely fine coaxial cables are not just to make the cables "thinner", but more importantly, to achieve high-speed signal transmission, compact connections, and reasonable wiring in limited internal space. The I-PEX CABLINE®-SS, through 0.4mm pitch, narrow depth structure, and various Micro-Coaxial Cable specifications, provides the corresponding platform foundation for internal connections of high-density electronic devices; among which, the I-PEX 82887-100B-02-D as a 32PIN, 100mm, 1-N extremely fine coaxial cable bundle model, is suitable to become a clear target model for engineers and purchasers to evaluate compatibility and replacement. For customers seeking domestic alternatives, second suppliers, or stable bulk supply, our company can provide I-PEX 82887-100B-02-D compatible alternative extremely fine coaxial cable bundle solutions, matching around connectors, AWG wire materials, cable length, wire sequence, and actual installation requirements, to provide manufacturing support for extremely fine coaxial cable bundles for high-end notebooks, display modules, cameras, and other high-density high-speed electronic devices.
