I-PEX 883008-100B-01-D 10P high-speed signal transmission ultra-fine coaxial cable alternative

One, 83008-100B-01-D ultra-fine coaxial cable assembly: A precision solution for high-density, high-speed signal connections

With the continuous development of laptops, tablets, AI vision devices, high-speed display devices, and other smart terminals towards thinness and high-speed, the internal PCB space of the devices is becoming increasingly limited. At the same time, the requirements for impedance control, crosstalk, insertion loss, return loss, and connection reliability of high-speed signals are also becoming higher. Traditional wiring or ordinary cables are facing challenges in terms of space occupation, signal integrity, and EMI control in some high-speed and high-density applications. Therefore, the use of extremely thin coaxial cables constructed with Micro-Coaxial Cable has gradually become an important solution for internal connections in high-speed devices.

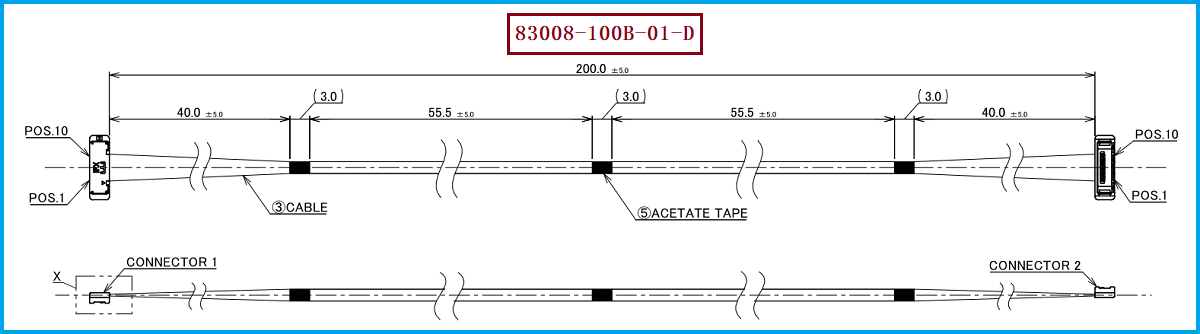

The product model highlighted in this introduction is I-PEX 83008-100B-01-D, which belongs to the CABLINE®-SS 10Pin ultra-thin coaxial cable assembly. The engineering drawing corresponds to specifications of 10Pin, 1-1 straight-through connection, and a cable length of about 200mm. It uses AWG #40, 50Ω Micro-Coaxial Cable. Both ends are equipped with CABLINE-SS series miniature connectors, with the cable end connector model being 20373-R10T-06 and the corresponding Plug Cable Assembly model being 20380-R10T-06. The CABLINE-SS features a 0.4mm terminal spacing, vertical right-angle insertion, and horizontal cable exit structure. Official documentation also indicates that this series supports AWG36, AWG38, AWG40, and AWG42 Micro-Coaxial Cable specifications, thus meeting the design requirements for wire diameter, space, and signal transmission performance of different devices.

For customers who need localization, second supplier introduction, cost optimization, or supply chain substitution, our company can provide: I-PEX 83008-100B-01-D compatible alternative cable harness solutions. These solutions can be developed around connector matching, wire specifications, cable length, wire sequence, and processing technology, providing engineers with ultra-fine coaxial cable harness products for sample verification and mass production introduction support.

The compatibility of ultra-fine coaxial cables with high-speed protocols such as USB4 is not solely determined by whether the wire diameter is thin enough.

For engineers, a frequently asked question when selecting ultra-fine coaxial cable bundles is: "Can AWG40 ultra-fine coaxial cables be used for high-speed protocols like USB4?" The answer cannot be simply summarized as "yes" or "no." USB4 belongs to the high-speed transmission protocol system, while ultra-fine coaxial cables are a physical transmission medium. The actual compatibility between the two needs to be verified through impedance, loss, crosstalk, return loss, connector transition, and overall signal integrity testing. USB-IF currently maintains the USB4 specification and the corresponding Compliance Test Specification. Therefore, "ability to transmit high-speed signals" and "meeting the USB4 specification requirements and passing the relevant compliance tests of USB-IF" are two different concepts.

From the public information of the CABLINE-SS series, I-PEX has already conducted high-speed transmission performance verification for Micro-Coaxial Cable. The public test conditions include CABLINE-SS 40Pin, AWG40, 45Ω, 100mm, and GSSGSSG Pin Assignment, and the series is positioned at the highest 16Gbps/Lane high-speed internal connection. The official applicable standards reference explicitly lists high-speed standards such as V-by-One US, HDMI 2.1, and USB 3.2 Gen2. However, it should be particularly emphasized that this does not mean that the 10Pin, 200mm, 50Ω cable assembly 83008-100B-01-D can directly claim "USB4 certification" or "USB4 unconditional compatibility". If the customer project goal is USB4, USB4 40Gbps, or other higher-speed protocols, it is recommended to perform SI simulation and actual measurement based on the actual Pin Assignment, cable length, characteristic impedance, connector, PCB routing, and system topology, and further confirm key indicators such as eye diagram, insertion loss, return loss, and crosstalk.

Therefore, from the perspective of product development, whether the extremely fine coaxial cable is suitable for high-speed protocols such as USB4 should truly focus on the signal integrity of the entire interconnection chain, rather than simply judging the AWG specification. AWG40 is just one of the wire diameter parameters; for high-speed design, it is also necessary to comprehensively judge by combining 50Ω or the target impedance specified by the project, cable structure, shielding structure, length, and connector termination quality. For customers who need high-speed protocol applications, we can provide the corresponding ultra-fine coaxial cable specification according to specific application requirements, and cooperate with customers for sample verification and parameter confirmation.

Section 3: Selection, Compatibility, and Alternative Solutions Reference and Recommendations: Confirm each item from connectors, AWG to wire sequence

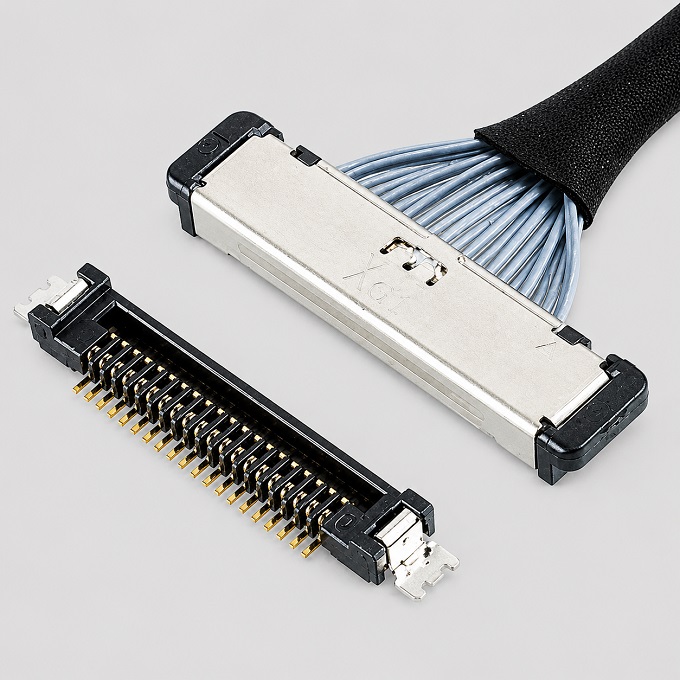

For R&D engineers, when choosing an alternative harness corresponding to the I-PEX 83008-100B-01-D, it is recommended to first confirm the connector interface and pin count on the equipment end, and then confirm the cable specification, impedance, cable length, and wiring sequence. This product corresponds to the 10Pin CABLINE-SS structure, and the cable end uses 20373-R10T-06, which is a CABLINE-SS Plug Housing. The complete Plug Cable Assembly corresponds to 20380-R10T-06, with a mating board-end Receptacle of 20374-R10E-31. The official I-PEX documentation indicates that the CABLINE-SS series uses a 0.4mm Pitch and covers specifications such as 10Pin, 14Pin, 20Pin, 30Pin, 32Pin, 35Pin, 40Pin, and 50Pin.

In AWG selection, the 20373-R10T-06 corresponding CABLINE-SS connector platform is compatible with ultra-fine coaxial cable specifications such as 36AWG, 38AWG, 40AWG, and 42AWG, but the impedance and electrical performance requirements for different wire diameters are not entirely the same. I-PEX's product information further explains that for Micro-Coaxial Cable, 45Ω applications correspond to AWG38 or finer specifications, while 50Ω applications correspond to AWG40 or finer specifications; therefore, if customers need to replace the 83008-100B-01-D, it is not only necessary to confirm whether the connector can be installed, but also to verify the cable impedance and actual signal application requirements.

From the perspective of alternative development, our company can provide compatible alternative cable harness solutions for I-PEX 83008-100B-01-D. For engineers, it is recommended to focus on connector matching, 10Pin wire sequence, 200mm length, AWG40 and 50Ω ultra-thin coaxial cable specifications, and other project confirmations. For purchasers, it is advisable to further evaluate from aspects such as original factory material number matching, second supplier introduction, sample verification, mass production, and delivery schedule stability. If the customer's actual project requires 36AWG, 38AWG, or 42AWG, the cable specification can also be re-selected according to the equipment space and electrical performance requirements. However, whether it is suitable for specific high-speed protocols should ultimately be determined by the actual design and testing results.

Four, Alternative value for engineering and procurement: From single part number alternative to stable supply

For equipment manufacturers that have already adopted the I-PEX CABLINE-SS system, the replacement of cables is not as simple as "finding a cable with the same size." When it comes to mass production introduction, attention must be paid to multiple aspects such as connector compatibility, terminal crimping or termination technology, wire sequence consistency, impedance control, wire length tolerance, tape fixation, UV adhesive fixation, and batch consistency. Especially for high-speed signal cables, even if the mechanical dimensions can match, any change in impedance or termination quality may further affect the signal integrity of the entire system.

For procurement personnel, adopting compatible alternative solutions can also extend the focus from a single original part number to consistency of specifications, supply capability, quality stability, and continuous supply capacity for projects. For engineers, it can involve sample verification around the original product's Pin Assignment, connector model, AWG specification, cable length, and impedance requirements. Our company specializes in the production of extremely thin coaxial cable assemblies and can provide corresponding development and production services for extremely thin coaxial cable assemblies based on the actual equipment requirements of customers. We also offer compatible alternative solutions around the specific model I-PEX 83008-100B-01-D, helping customers conduct alternative verification while maintaining the original structure and application requirements.

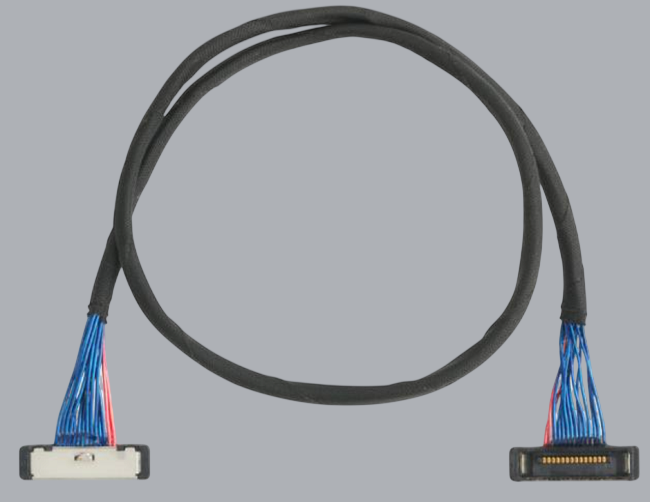

I-PEX 83008-100B-01-D is a 10Pin, approximately 200mm long, 1-1 straight-through structure CABLINE-SS ultra-fine coaxial cable assembly, using AWG40, 50Ω Micro-Coaxial Cable, and the connector model used at the cable end is 20373-R10T-06. The CABLINE-SS platform features 0.4mm ultra-fine spacing, narrow structure, and design for high-speed signal transmission, and supports ultra-fine coaxial cable specifications such as 36AWG, 38AWG, 40AWG, and 42AWG.

For new-generation high-speed protocols such as USB4, ultra-fine coaxial cables have the technical foundation for high-speed internal interconnection, but "being able to be used for high-speed signals" does not equal "having obtained USB4 certification." Actual projects should combine impedance, insertion loss, return loss, crosstalk, connectors, and PCB factors for complete link verification. USB-IF also has a special USB4 Compliance testing system, so for terminal products that require USB4 compliance, specific system testing and relevant compliance requirements should be used as the final judgment basis.

I am[7A Electronic Network], Provide structural optimization and signal consistency evaluation services and product solutions for high-speed ultra-fine coaxial cable assemblies according to requirements. For more information, please contact: Manager Zhang18913228573 (WeChat same number).
