I-PEX 83007-100B-01-D 10P high-speed signal transmission ultra-thin coaxial cable replacement

A solution for ultra-fine coaxial cable束 for high-speed, miniaturized devices - How engineers and purchasers should pay attention to 83007-100B-01-D

With the continuous development of laptops, tablets, AI vision devices, camera modules, and industrial inspection equipment towards thinness and high-speed, the internal connection space of the devices becomes increasingly limited. At the same time, higher requirements are put forward for the stability of high-speed signal transmission, flexibility of cables, and accuracy of connector matching. For engineers, ultra-fine coaxial cables not only need to meet the requirement of "being able to connect" but also need to consider factors such as wire diameter, impedance, PIN count, connector spacing, cable exit direction, installation space, and high-speed signal integrity. For purchasers, they are more concerned about whether the product can achieve stable supply, whether the specifications can correspond to the original material number, whether the cost of alternative development can be reduced, and whether the subsequent batch delivery capability is sufficient.

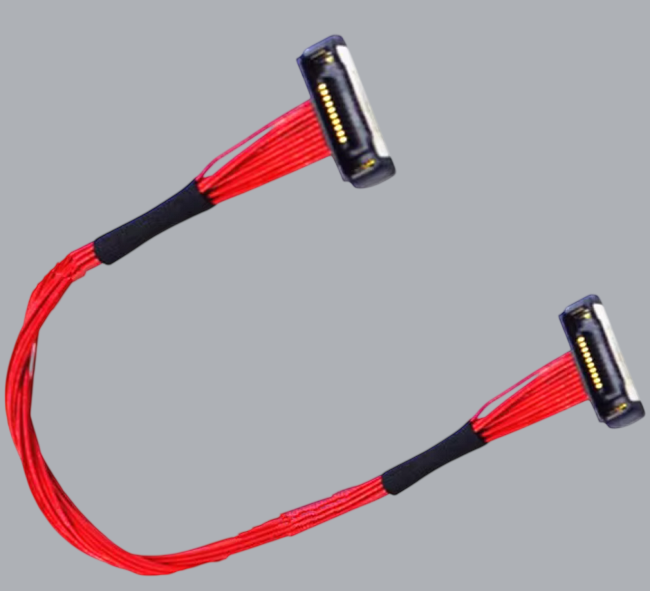

The product introduced this time is the I-PEX 83007-100B-01-D ultra-fine coaxial cable assembly, which belongs to the CABLINE-SS series application solutions. According to I-PEX official information, CABLINE-SS adopts a 0.4mm pin spacing, vertical right-angle insertion and removal structure,配合horizontal cable exit design, with the connector height approximately 1.65±0.2mm, and supports various PIN number specifications. This series is designed for high-speed data transmission, miniaturized installation space, and high-reliability connections. The official data shows that its high-speed test conditions can reach 16Gbps/Lane, with testing using AWG #40 Micro-Coaxial Cable, 45Ω, 100mm cable.

We can provide an I-PEX 83007-100B-01-D compatible alternative cable harness solution based on the customer's equipment structure and existing wire harness requirements. The connector model used at the cable end is 20373-R10T-06, and the specifications required for this project are 40PIN with 0.4MM spacing. The cable uses AWG #40 ultra-thin coaxial wire. Engineers and purchasers looking for I-PEX products with the same specifications or compatible alternatives can confirm the corresponding information from multiple dimensions such as connectors, cables, PIN definitions, cable length, and assembly structure, rather than simply comparing the product appearance.

Two, how many layers are there in the internal structure of a very fine coaxial cable bundle? Why is AWG #40 suitable for high-density connections?

Many purchasing personnel focus on the wire diameter and price when they see "extremely fine coaxial cable bundles," while engineers are more concerned with the internal structure of this extremely fine wire material and why it can still complete high-speed signal transmission under such a small outer diameter. Generally speaking, from the basic functional structure of extremely fine coaxial cables, it can be understood as a multi-layer coaxial structure composed of a central conductor, an insulating medium layer, a shielding layer, and an outer sheath layer. The central conductor is responsible for electrical signal transmission, the insulating layer is used to control the electrical spacing and transmission characteristics between conductors, the outer shielding layer is mainly used to reduce external electromagnetic interference and control the crosstalk effect of high-speed signals, and the outermost sheath is responsible for mechanical protection. Therefore, extremely fine coaxial cables are not simply making ordinary copper wires "thinner," but rather integrating multiple functions such as conductor, insulation, shielding, and mechanical protection within a very limited space.

Taking the ultra-fine AWG #40 coaxial cable used in this project as an example, one of its core advantages is the ability to achieve high-density wiring within limited device internal space. The official I-PEX CABLINE-SS documentation explicitly lists the applicable specifications for AWG #40, AWG #38, AWG #36, and AWG #42 Micro-Coaxial Cables, among which AWG #40 is also the wire material specification adopted for the official high-speed testing conditions. The official high-speed testing data uses CABLINE-SS 40P, Micro-Coaxial Cable, AWG #40, 45Ω, and 100mm for testing, with 16Gbps/Lane as the high-speed transmission reference.

For engineers, this means that when selecting ultra-fine coaxial cables, they cannot just look at "how thin the wire is," but also need to consider characteristics such as characteristic impedance, high-speed signal integrity, connector structure, and actual routing space. For purchasers, the AWG specification can also serve as an important parameter to verify whether the supplier's products truly correspond to the original design. When developing the I-PEX 83007-100B-01-D compatible alternative solution, it is crucial to focus on confirming the AWG #40 wire, 0.4mm connector spacing, PIN definition, and actual assembly dimensions to reduce the risk of re-validation due to differences in wire or termination structure.

Three, from engineering design to procurement alternatives: selection, compatibility, and replacement solution reference and recommendations for I-PEX 83007-100B-01-D

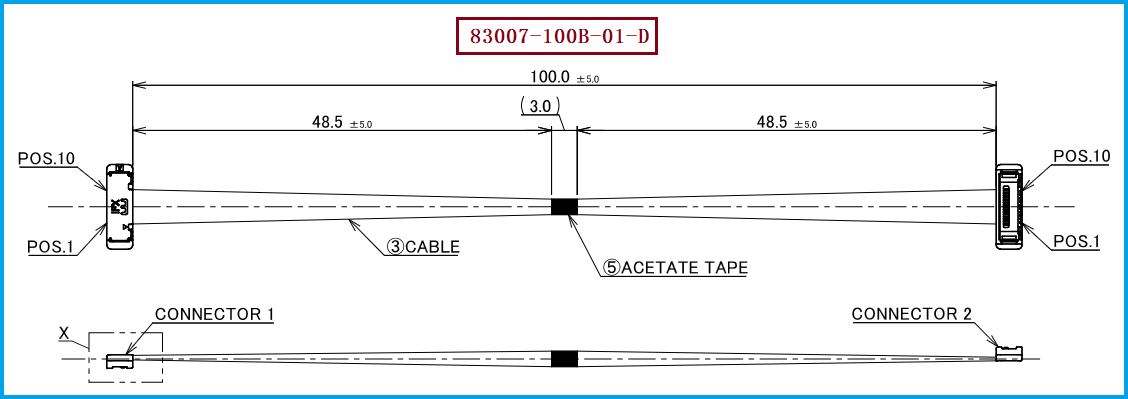

In actual projects, when engineers are selecting the ultra-fine coaxial cable assembly, it is recommended to first confirm the original product's connector series and terminal structure, and then check the PIN count, 0.4mm spacing, cable material AWG specification, cable assembly length, both-end connection relationships, and wire sequence definition. The key information for this project includes I-PEX 83007-100B-01-D, 20373-R10T-06, 0.4MM spacing, AWG #40 ultra-fine coaxial cable material, etc. According to I-PEX official data, 20373-R10T-06 belongs to the CABLINE-SS Plug Housing series, and its recommended specifications correspond to the CABLINE-SS connection system with 0.4mm spacing; the official product materials also list 10, 14, 20, 30, 32, 35, 40, 50 and other PIN specifications. Therefore, in actual development, the final BOM of the customer, the actual matching terminal of the connector, and the PCB layout of the device should be confirmed item by item.

For customers already using the I-PEX CABLINE-SS series products, if they are looking for domestic alternatives, second-source suppliers, or cost optimization solutions, it is recommended not to judge the procurement solely based on "the same material number". Instead, they should focus on verifying the connector model, pin count, 0.4mm pitch, AWG #40 wire material, impedance requirements, cable length, wire sequence, cable exit direction, and actual fitting dimensions. Especially for high-speed signal applications, when substituting for cables, attention must be paid to the consistency of connector termination and signal integrity. For narrow space applications such as laptop pivot axes, camera modules, and AI vision equipment, the bending path of the cables and mechanical installation space also need to be considered.

Based on the production capability of extremely fine coaxial cable assemblies, our company can provide: I-PEX 83007-100B-01-D compatible alternative cable assembly solutions. We can match and develop for extremely fine coaxial cables, connectors, PIN positions, wire sequences, lengths, and termination processes according to the customer's original samples, drawings, or BOM requirements. We provide alternative design verification support for engineers and also offer second sourcing and bulk purchasing solutions for procurement personnel. For projects that require domestic substitution, supply chain optimization, or development of cables of the same specification, sample making and specification confirmation can be carried out according to the actual equipment requirements.

Four, from "replaceable" to "stable mass production": the manufacturing capabilities that suppliers of ultra-fine coaxial cable bundles need to pay attention to

For purchasers, whether a very fine coaxial cable bundle is suitable for long-term importation not only depends on whether the initial samples can be connected normally, but also requires attention to the supplier's continuous manufacturing capability, termination consistency, cable specification stability, and quality control during mass production. Especially for AWG #40 ultra-fine coaxial cable materials, due to their finer wire diameter and smaller processing space, factors such as cable stripping, terminal crimping or welding, shielding layer treatment, and connector assembly will all affect the consistency of the final product. Therefore, during the introduction of alternative solutions, it is recommended that the engineering department and the purchasing department jointly confirm samples, specifications, testing requirements, and mass production standards, rather than making substitution judgments solely based on appearance.

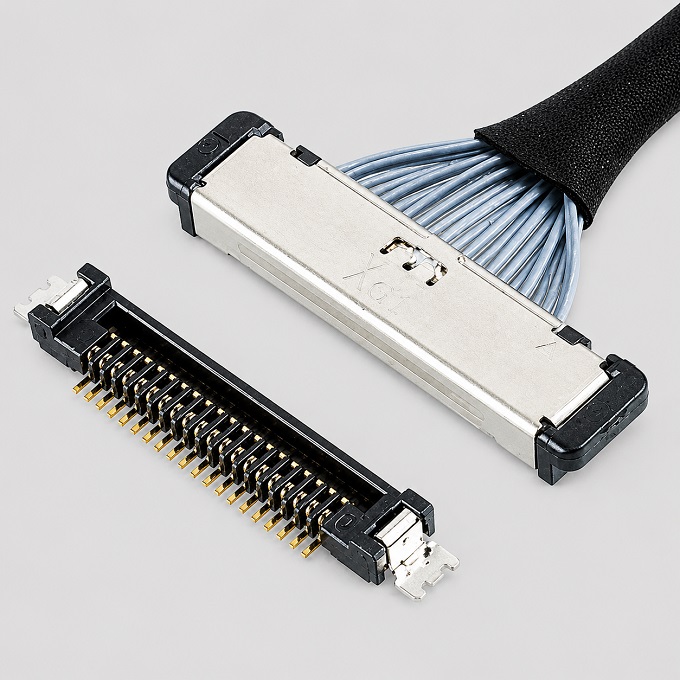

From the perspective of product application, the CABLINE-SS series is itself aimed at high-speed, miniaturized connection applications. Official data indicates that its 0.4mm Pitch, vertical right-angle insertion and extraction, horizontal line output, and lower mating height design are conducive to high-density connections in laptop computers, display modules, camera modules, and other devices with limited internal space. For engineers, the core value of such products lies in combining high-speed signal transmission with wiring needs within limited space; for purchasers, it is necessary to further confirm whether the alternative supplier can provide products that meet the drawing and verification requirements on a long-term and stable basis.

Therefore, the compatible alternative solution for the I-PEX 83007-100B-01-D ultra-fine coaxial cable assembly is not just a simple connector replacement project, but should be evaluated as a whole from "wire material + connector + wire sequence + size + termination process + testing and verification + mass production". Our company specializes in the production and manufacturing of ultra-fine coaxial cable assemblies and can conduct compatible alternative development around the customer's existing I-PEX cable assembly products, helping customers establish a more flexible cable assembly supply solution while meeting actual assembly and signal connection requirements.

Extremely fine coaxial cable束 appears to be just a "small wire" inside the equipment, but in fact, it undertakes multiple functions such as high-speed signal transmission, spatial adaptation, anti-interference, and mechanical connection. The CABLINE-SS series application solutions represented by I-PEX 83007-100B-01-D, with its 0.4mm spacing, AWG #40 extremely fine coaxial wire material, and miniaturized connection structure, make it suitable for electronic devices with high requirements for space and high-speed transmission. For customers who are in the process of replacing I-PEX cable束, domestic introduction, second supplier development, or procurement cost optimization, our company can provide I-PEX 83007-100B-01-D compatible alternative cable束 solutions and can carry out further specification confirmation and customized production according to the customer's actual drawings, samples, and technical requirements.

I am【7A Electronic Network】Professional customization and production of ultra-fine coaxial cable assemblies and matching connectors, terminal blocks, and board-to-board connectors. If you need technical evaluation or project cooperation, please contact: Manager Zhang.18913228573 (WeChat same number).
