I-PEX 83059-100B-01-D 12P high-speed signal transmission ultra-thin coaxial cable replacement

In response to the miniaturization needs for high-speed electronic devices, we provide the I-PEX CABLINE-UY series ultra-thin coaxial cable assembly as an alternative solution.

With the continuous development of laptops, ultra-thin display devices, intelligent terminals, VR/AR equipment, and high-speed visual equipment towards thinness and high-speed performance, higher requirements have been put forward for the internal wire harness connections of these devices. Traditional FPC ribbon cables are gradually facing challenges in high-speed signal transmission, electromagnetic interference resistance, and complex space wiring. In contrast, ultra-fine coaxial cables, with their excellent impedance control capabilities, lower signal attenuation, and stronger anti-interference ability, have become an important solution in the field of high-speed display signals and high-speed data connections.

In response to the application requirements for I-PEX CABLINE-UY series 12Pin ultra-fine coaxial cable assembly, our company can carry out high-precision compatibility and alternative development based on the original manufacturer's specifications, and launch the I-PEX 83059-100B-01-D ultra-fine coaxial cable alternative solution. This product adopts the CABLINE-UY 12Pin structural scheme, with cable length of 200MM, and is equipped with a cable end connector model of 20907-012E-01, meeting the project's requirements for size matching, signal transmission stability, and assembly reliability.

This model of extremely fine coaxial cable assembly uses AWG42 Micro-Coaxial as the transmission medium, achieving high-speed signal transmission requirements through refined manufacturing processes, and can be applied to display modules, high-speed internal connections of motherboards, camera modules, and internal connections of electronic devices with limited space.

II-PEX 83059-100B-01-D ultra-fine coaxial cable assembly product features and signal integrity advantages

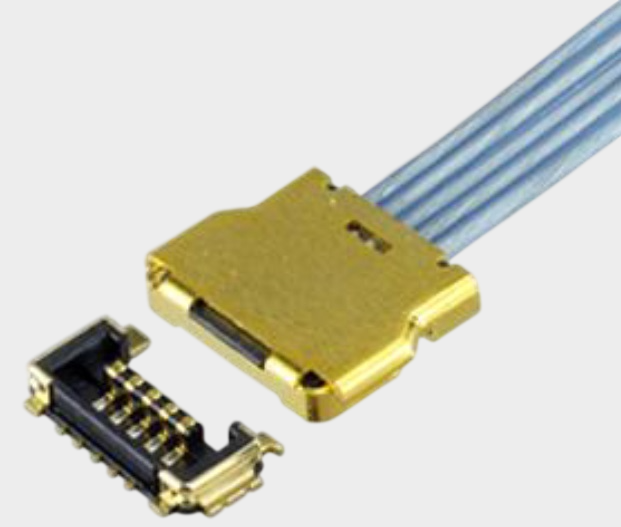

The I-PEX 83059-100B-01-D ultra-fine coaxial cable assembly is designed based on the CABLINE-UY series connection scheme, using 0.35mm Pitch ultra-fine spacing connection structure, and supports high-density signal transmission. This scheme is matched with the 20907-012E-01 connector, which can meet the requirements for connection stability and mechanical reliability in small space installation environments.

In high-speed electronic device applications, ultra-fine coaxial cables have better electrical performance compared to ordinary wires. The AWG42 Micro-Coaxial ultra-fine coaxial cable, through the design of the central conductor, insulation layer, shielding layer, and outer sheath structure, can effectively control signal impedance, reduce signal loss during high-speed transmission, and improve the quality of differential signal transmission.

In practical engineering applications, common signal interference problems with extremely fine coaxial cable bundles mainly include:

Firstly, the problem of electromagnetic interference (EMI). When the cable bundle is close to high-speed processors, power modules, or wireless communication modules, external electromagnetic fields may couple into the signal channel, leading to signal waveform distortion and an increase in error codes. Very fine coaxial cable bundles utilize shielding structures to reduce the impact of external interference and improve the stability of high-speed signals.

Second, crosstalk issues. When multiple high-speed signals are transmitted simultaneously, electromagnetic coupling may occur between adjacent signals, affecting signal integrity. Reasonable harness structure design, impedance control, and shielding treatment can effectively reduce the risk of crosstalk.

Thirdly, the issue of impedance mismatch. High-speed signals have high requirements for impedance continuity; if there is an inconsistency in impedance between the connector, cable, and PCB, it will cause signal reflection, leading to a decrease in transmission quality. Therefore, when replacing the development of extremely fine coaxial cables, it is necessary to strictly control the cable specifications, connector matching, and manufacturing dimensions.

In response to the pain points of the above engineering applications, our company can provide: I-PEX 83059-100B-01-D compatible cable harness solution. Through the professional capability of manufacturing ultra-fine coaxial cable harnesses, we achieve a high-speed signal connection solution that matches the original application plan.

Section 3: Engineering Selection and Compatibility and Alternative Solutions Reference and Recommendations

For electronic devices using the I-PEX CABLINE-UY series connection scheme, when selecting ultra-fine coaxial cable assemblies or developing domestic alternatives, it is necessary to pay close attention to key parameters such as connector models, Pin quantity, cable specifications, length dimensions, and signal definitions.

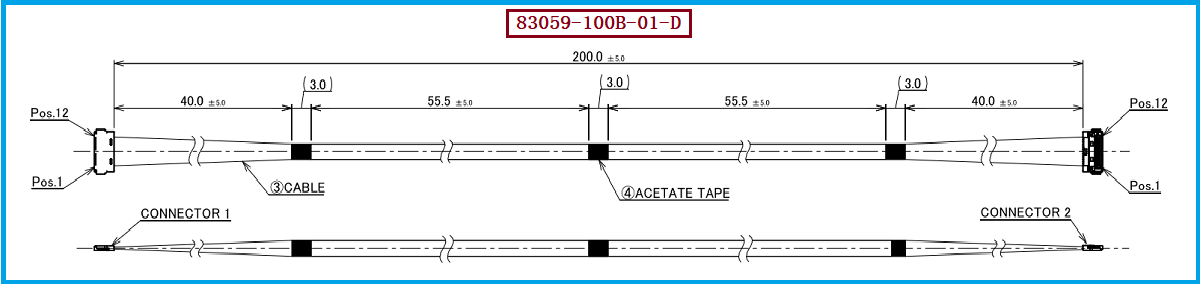

I-PEX 83059-100B-01-D ultra-fine coaxial cable corresponds to the following application parameters:

• Product Model: I-PEX 83059-100B-01-D

  Connector Model: 20907-012E-01

• Pin quantity: 12Pin

• Cable Type: Micro-Coaxial Cable

Wire specification: AWG42

Cable Length: 200MM

During the compatibility replacement design process, engineers need to confirm the original equipment PCB connector specifications, insertion direction, installation space, signal definition, and high-speed transmission requirements. Purchasing personnel need to focus on confirming whether the supplier has stable mass production capabilities, consistency control capabilities, and long-term supply capabilities.

For the development of alternative solutions, it is recommended to focus on verifying the following: whether the connector mechanical dimensions match, whether the wire sequence definitions are consistent, whether the wire material impedance meets the requirements, whether the harness length tolerance conforms to the assembly requirements, and whether the high-speed signal test results meet the system application standards.

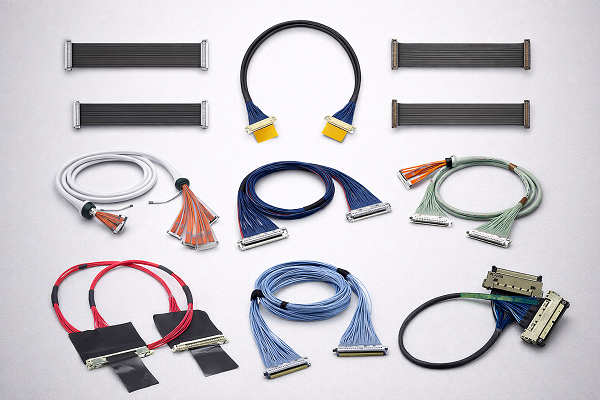

Our company specializes in the research and development and manufacturing of ultra-fine coaxial cable assemblies. We can provide a one-stop compatible substitute service from sample development, small batch trial production to mass production, based on the original cable assembly model, connector specifications, and application requirements provided by customers.

Four, professional ultra-fine coaxial cable assembly manufacturing capability, providing reliable guarantee for high-speed connection applications.

The extremely thin coaxial cable束 belongs to high-precision electronic connection products, which require higher standards for production processes, material control, and quality inspection capabilities. During the manufacturing process, it is necessary to strictly control the processing of fine coaxial cables, end treatment, connector assembly, dimension control, and electrical performance testing to ensure that every cable meets the long-term stable operation requirements of customer equipment.

In response to the demand for alternative ultra-fine coaxial cable assemblies for I-PEX 83059-100B-01-D, our company can provide a compatible product solution that meets engineering application requirements. This helps customers reduce procurement costs, improve supply chain stability, and address issues such as lead time, supply risks, and customized needs of the original factory cable assemblies.

Our company can provide professional and fine coaxial cable assembly design and manufacturing services according to customers' actual needs, whether it is for notebook display modules, high-speed camera systems, intelligent terminal devices, or other high-speed signal transmission applications.

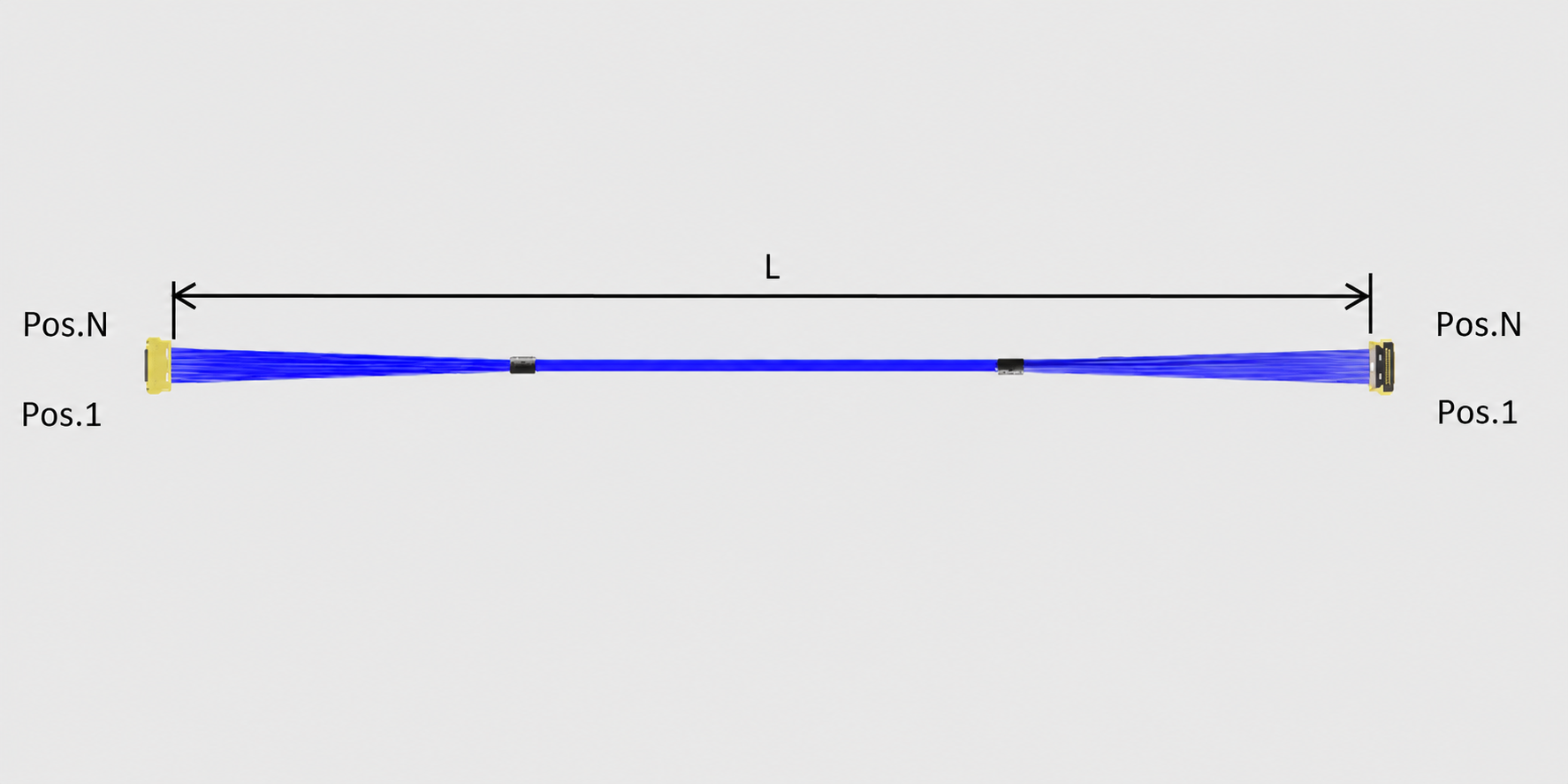

The I-PEX 83059-100B-01-D ultra-fine coaxial cable assembly is a 12Pin Micro-Coaxial Harness solution for high-speed, miniaturized electronic device applications. It utilizes AWG42 ultra-fine coaxial cable and 20907-012E-01 connectors, offering low space occupation, high-speed signal transmission, and excellent anti-interference capability.

Our company, with its expertise in the manufacturing of fine coaxial cable bundles, can provide an I-PEX 83059-100B-01-D compatible alternative cable bundle solution, assisting customers in achieving stable and reliable high-speed connections for their electronic products, thereby supporting the miniaturization and high-performance development of electronic devices.

I am【7A Electronic Network】We can provide structural optimization and signal consistency evaluation services and product solutions for high-speed ultra-fine coaxial cable assemblies. For more information, please contact Manager Yin.18013280527 (WeChat number).
