I-PEX 83060-100B-01-D 12P high-speed signal transmission ultra-thin coaxial cable replacement

Will ultra-fine coaxial beam bundles still dominate the high-speed transmission market in the future? The trend of high speed and miniaturization promotes the development of the next-generation connection technology.

With the continuous development of AI terminals, thin and light laptops, high-resolution display devices, foldable electronic products, and high-speed data devices, there are higher requirements for signal transmission inside electronic products. Although traditional FPC ribbon cables have the advantage of thinness and lightness, they are gradually facing challenges in high-speed differential signal transmission, impedance control, anti-interference ability, and complex structure wiring. ultra-thin coaxial cable bundles, with superior signal integrity, lower transmission loss, stronger anti-crosstalk ability, and excellent flexibility, are becoming an important technical solution in the field of high-speed internal connections.

Looking at future market trends, ultra-thin coaxial cable assemblies will still maintain an important position in the high-speed transmission field. Especially in USB4, Thunderbolt, high-speed display interfaces, eDP, MIPI, and next-generation AI terminal devices, the signal rates are constantly increasing, posing higher requirements for the reliability and space adaptability of connection components. Ultra-thin coaxial cables adopt an independent shielding structure, which can effectively ensure the quality of high-speed differential signals, and also have the ability to route through narrow spaces, pivot areas, and complex internal structures. Therefore, they will continue to play an important role in high-end consumer electronics, high-speed computing equipment, and intelligent terminal fields.

I-PEX 83060-100B-01-D ultra-thin coaxial cable束 compatible alternative solution, meeting high-speed equipment connection requirements

In response to the widely used I-PEX CABLINE®-UY series ultra-thin coaxial cable assemblies in the market, our company can independently research and manufacture according to the original factory specifications, providing high-reliability compatible alternative cable assembly solutions. Among them, for the I-PEX 83060-100B-01-D model ultra-thin coaxial cable assembly, our company can provide corresponding compatible alternative products.

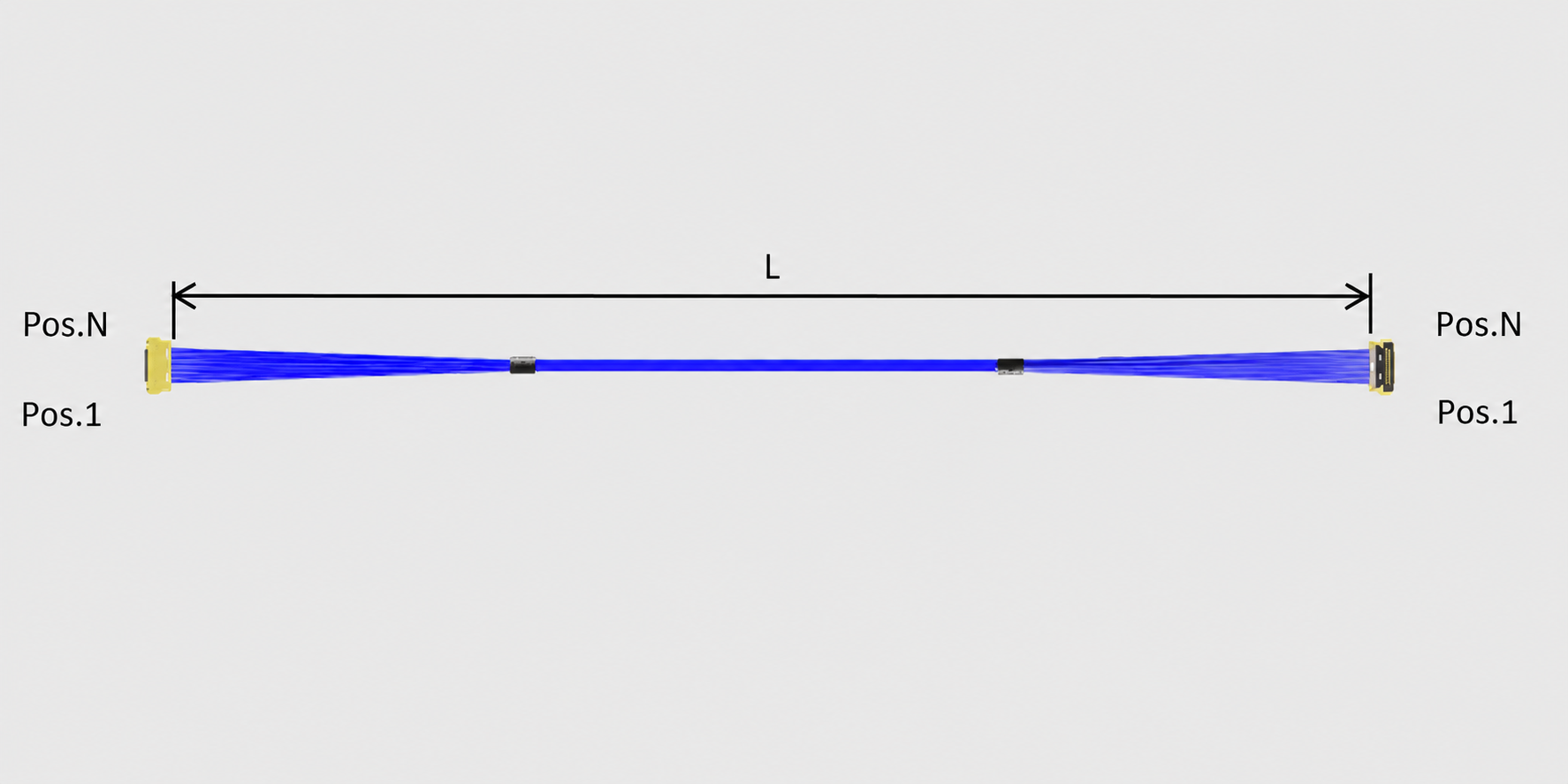

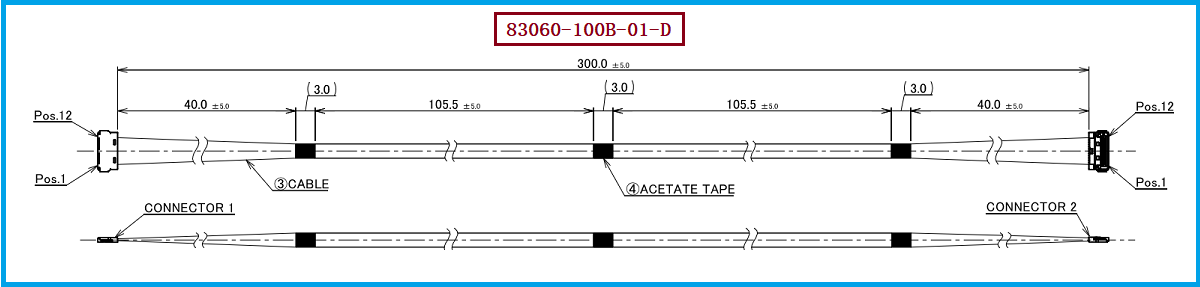

This ultra-fine coaxial cable assembly adopts a 12Pin structure design, with wire positions defined as 1--1, and a length specification of L=300mm. It uses AWG42 Micro-Coaxial ultra-fine coaxial material, and the cable connector is equipped with the 20907-012E-01 matching connection scheme. The overall product design is aimed at high-speed signal transmission applications, and can meet the connection needs of laptop display modules, ultra-thin device internal connections, high-speed data modules, and electronic devices with limited space.

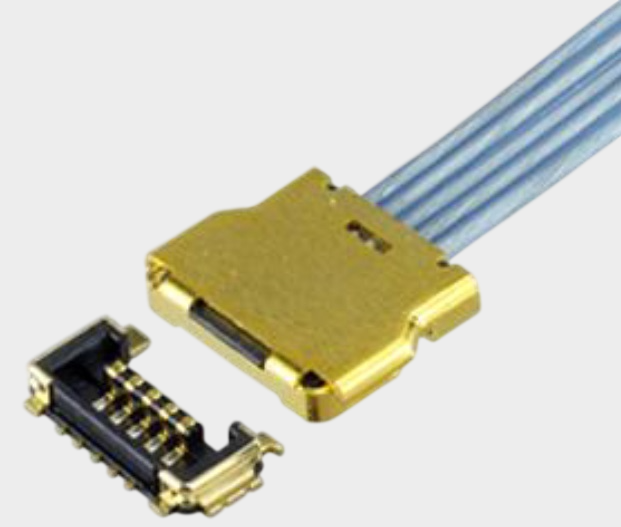

I-PEX CABLINE®-UY series connection solutions feature 0.35mm pitch ultra-fine spacing, maximum 0.82mm low mating height, and highest 32Gbps/lane high-speed transmission capabilities, suitable for electronic devices with high requirements for size, performance, and reliability.

Section 3: Selection, Compatibility, and Alternative Solutions Reference and Recommendations for Engineers and Purchasers

For engineering personnel, when choosing an alternative for ultra-fine coaxial cable assemblies, it is necessary to focus on confirming the connector model, pin count, wire specification, cable length, wire position definition, and signal transmission requirements. The I-PEX 83060-100B-01-D corresponds to a 12Pin ultra-fine coaxial cable structure, matching the cable end connector model as 20907-012E-01, using AWG42 Micro-Coaxial Cable, with a wire position structure of 1--1. Therefore, when replacing the design, it is necessary to ensure consistency in mechanical dimensions, electrical performance, and assembly compatibility.

For procurement personnel, stable supply capability, product consistency, and quick response ability are important factors in choosing substitute suppliers. Our company has the ability to develop, manufacture, and customize ultra-fine coaxial cable assemblies. We can develop corresponding substitute product solutions based on the original model, samples, or technical requirements provided by customers. For the I-PEX 83060-100B-01-D ultra-fine coaxial cable assembly, we can provide integrated services from wire selection, connector matching, cable assembly processing to performance verification, meeting customer application needs in the fields of display, high-speed data transmission, and precision electronic equipment.

Four, ultra-fine coaxial cable assembly manufacturing capability, helping customers achieve reliable connection upgrade

As electronic devices continue to develop towards thinness, high performance, and high speed, ultra-fine coaxial cables have become an important direction for upgrading connection technology. Compared with traditional connection methods, ultra-fine coaxial cables can achieve high-speed and high-reliability data transmission within limited spaces, providing more stable connection solutions for future intelligent terminals, AI devices, high-speed display systems, and precision electronic products.

Our company focuses on the research and development and manufacturing of ultra-fine coaxial cable assemblies and can provide standard model alternatives, customized development, and bulk production services. For the I-PEX 83060-100B-01-D product, our company can offer a compatible alternative cable solution, ensuring that the wire specifications, connector matching, wire position definition, and application performance meet the requirements of the customer's project, providing customers with a reliable, efficient, and cost-competitive ultra-fine coaxial cable solution.

Extremely fine coaxial cable bundles are becoming an important technical route for internal connections in future high-speed electronic devices due to their high-speed transmission capabilities, miniaturized structure, and excellent signal integrity. For the I-PEX 83060-100B-01-D extremely fine coaxial cable bundle, our company can provide a professional compatible alternative solution, using AWG42 Micro-Coaxial extremely fine coaxial cable material, 20907-012E-01 connector, 12Pin and 1--1 line position structure, to help customers achieve stable supply, reduce procurement risks, and meet the needs of the next generation of high-speed electronic products for high-performance connections.

I am【7A Electronic Network】Committed to the compatibility and replacement of ultra-fine coaxial cable assemblies for high-speed interfaces and precision connectors, and to mass production support. For project consultation, please contact: Manager Yin.18013280527 (WeChat same number).
