I-PEX 83058-100B-01-D 12P high-speed signal transmission extremely thin coaxial cable bundle substitute

I-PEX CABLINE-UY ultra-thin coaxial cable assembly alternative for high-speed, miniaturized device applications

With the continuous development of laptops, ultra-thin display devices, VR/AR equipment, intelligent terminals, and high-speed industrial equipment towards thinness and high integration, there is a higher requirement for high-speed signal transmission cables within the equipment. Traditional FPC ribbon cables are prone to be affected by factors such as impedance control, signal attenuation, and electromagnetic interference in high-speed transmission environments, while ultra-fine coaxial cables, with their independent shielding structure, stable impedance control capability, and excellent high-speed signal integrity, are gradually becoming an important solution for internal connections in high-performance electronic equipment.

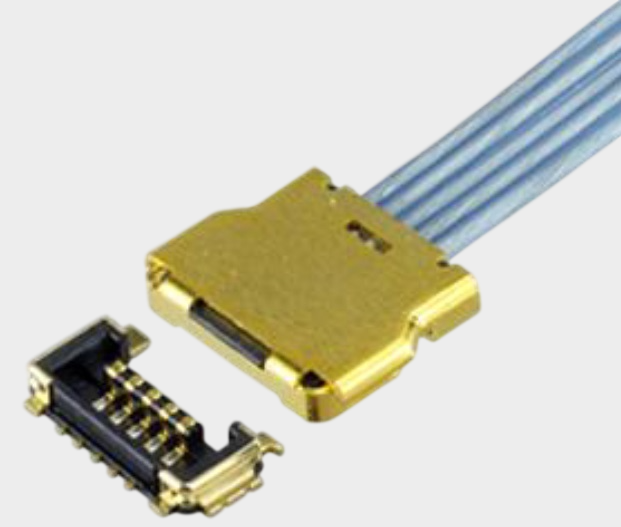

In response to the application requirements for I-PEX CABLINE®-UY series 12Pin Micro-Coaxial Harness (ultra-fine coaxial harness), our company can provide a manufacturing solution for the compatible alternative model I-PEX 83058-100B-01-D ultra-fine coaxial harness. The product uses 42AWG ultra-fine coaxial material, and a I-PEX 20907-012E-01 connector component is used at the wire end. It can meet the connection requirements under high-density, small space, and high-speed signal transmission scenarios, providing customers with a stable and reliable domestic alternative option.

Why can ultra-fine coaxial beam affect the performance of the whole equipment?

In high-speed electronic equipment, extremely thin coaxial cable bundles not only bear the function of signal connection but also directly affect the stability of data transmission, display quality, and system reliability of the whole machine. A seemingly tiny cable bundle actually involves many engineering factors such as impedance matching, signal attenuation, crosstalk control, electromagnetic compatibility (EMI), and mechanical reliability.

For applications such as high-speed display, camera module, and high-speed data interfaces, the transmission rate of signals is constantly increasing. If the control of the harness impedance is unstable, it will lead to increased signal reflection; if the shielding performance is insufficient, it is prone to be affected by external electromagnetic interference, causing issues such as abnormal display, data transmission errors, or reduced system stability.

The ultra-thin coaxial cable bundle adopts a coaxial structure design, with each signal line having an independent shielding layer, which can effectively improve the transmission quality of high-speed differential signals. At the same time, the 42AWG wire diameter has good flexibility, which can meet the wiring needs of notebook screen hinges, folding devices, and structures with limited space. Therefore, the design quality of the ultra-thin coaxial cable bundle will directly affect the performance of the entire device.

III-Product features and engineering application value of I-PEX 83058-100B-01-D

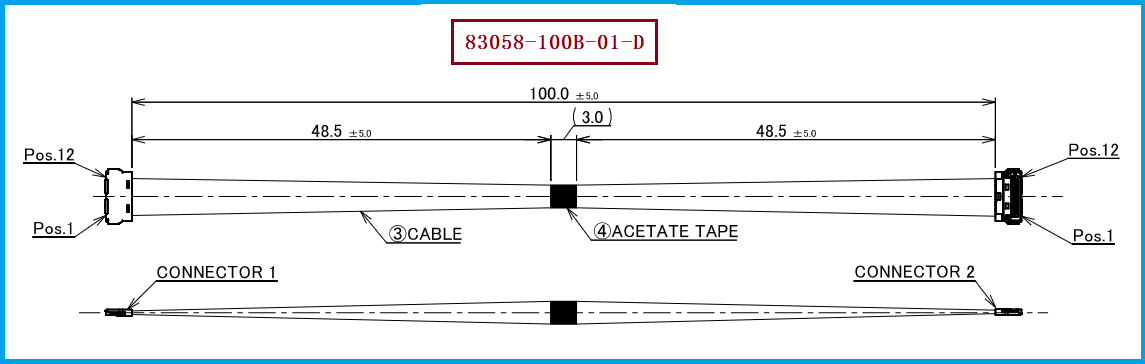

In relation to the I-PEX 83058-100B-01-D ultra-fine coaxial cable assembly product, our company can carry out compatible development and production based on the original product structure. This model belongs to the CABLINE-UY 12Pin Micro-Coaxial Harness product solution, using a 12-core ultra-fine coaxial cable structure, matched with 42AWG Micro-Coaxial Cable (ultra-fine coaxial cable), and using the 20907-012E-01 connector model as the component for connecting the cable ends.

This type of harness solution is suitable for internal connections of electronic devices with high requirements for space height, signal speed, and reliability. For example, ultra-thin laptop display modules, high-speed camera modules, VR/AR devices, and other high-integration electronic products. The extremely fine coaxial harness not only reduces the space occupation inside the device but also helps engineers optimize the overall layout, improving the stability of high-speed signal transmission.

From the perspective of engineering design, selecting an ultra-fine coaxial cable assembly requires comprehensive consideration of factors such as connector matching, pin count, cable diameter specifications, cable length, bend radius, and the working environment of the equipment. The correct cable selection not only concerns production and assembly efficiency but also directly affects the long-term reliable operation of the product after it is launched on the market.

Four, selection and compatibility and alternative solutions reference and suggestions

For equipment adopting the I-PEX CABLINE-UY series connection scheme, it is recommended that engineers and purchasing personnel pay close attention to the following aspects during the development of extremely thin coaxial cable replacements: Firstly, it is necessary to confirm whether the connector models are consistent, including the wire end connector 20907-012E-01, pin count, and structural dimensions; secondly, it is necessary to confirm the cable specification, this scheme uses 42AWG Micro-Coaxial Cable (extremely thin coaxial cable), which needs to meet the impedance, electrical performance, and high-speed signal transmission requirements of the original design; at the same time, it is also necessary to confirm the cable length, end processing method, cable exit direction, and overall assembly space.

In terms of supply chain substitution, our company can carry out structural analysis, sample production, performance verification, and mass production based on the original harness model, samples, or engineering drawings provided by customers. We provide customers with a one-stop ultra-fine coaxial cable solution from design verification to mass delivery.

Our company can provide for this model product:

I-PEX 83058-100B-01-D compatible cable harness solution

Meet the application needs of customers in the internal connections of high-speed equipment, reduce the risk of purchasing imported cables, and improve supply chain stability.

The extremely thin coaxial cable assembly has become an indispensable and important connection component in high-speed, miniaturized electronic devices, and its performance directly affects the quality of data transmission, system stability, and overall reliability of the equipment. For the I-PEX 83058-100B-01-D extremely thin coaxial cable assembly, our company can provide a compatible alternative manufacturing solution using 42AWG extremely thin coaxial cable material and matching the 20907-012E-01 connector, offering customers cable products with high reliability, high performance, and high consistency.

With professional R&D and manufacturing capabilities in ultra-fine coaxial cable assemblies, our company can assist engineers in optimizing connection solutions, help procurement personnel establish stable supply channels, and provide reliable domestic alternatives for high-speed display, high-speed data transmission, and intelligent electronic devices.

I am[7A Electronic Network]Professional custom production of ultra-fine coaxial cable assemblies and matching terminal, connector board. If you need technical evaluation or project cooperation, please contact: Manager Yin.18013280527 (WeChat same number).
