In modern electronic products, industrial equipment, and intelligent systems, connectors and cable assembly components bear the important responsibility of signal and power transmission. As an industry-leading brand, 3M offers a range of high-performance cable harnesses and cable assembly components. This article will deeply analyze the technical advantages of 3M cable assembly components in flexible design, electromagnetic compatibility (EMC), and a wide range of application fields, and provide engineers with selection and compatibility/governmental alternative solution references.
3M wiring components — flexible, reliable, and diverse structure

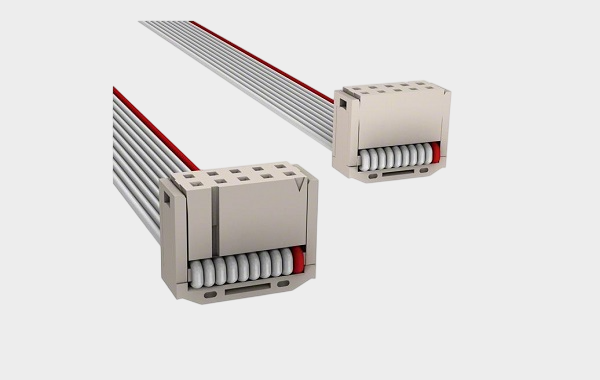

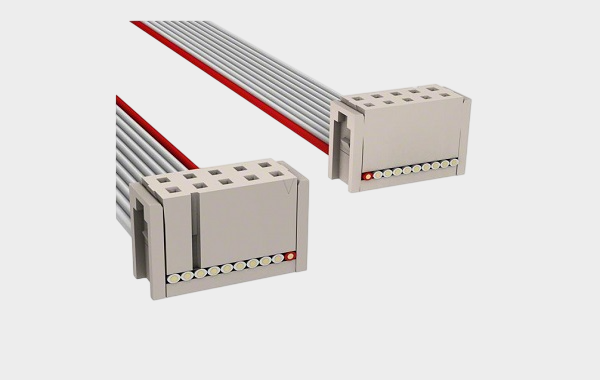

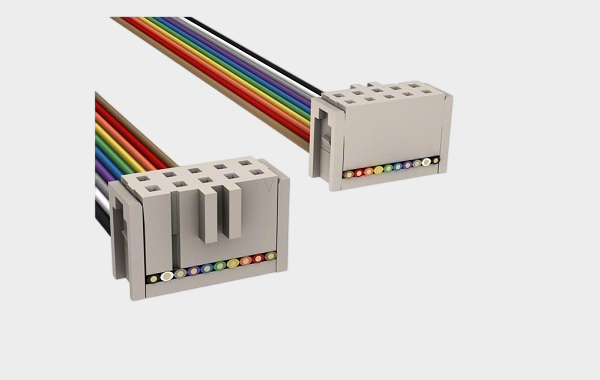

3M's flat ribbon cable (Flat Ribbon Cable /扁 平 排 线) and flexible ribbon cable products are its mature harness solutions.
High flexibility design: 3M offers a variety of flat cables with 28AWG and 1.27mm spacing, such as models in the 3319 series, HF319, HF365, HF539, etc. Some models use multi-strand silver-plated copper conductors, which have extremely high fatigue resistance and can withstand more than 100 million bending cycles.
Diverse structures and specifications: Cable cores range from 6 to 64 cores, and the roll length can reach tens to hundreds of meters.
Environmental and safety standards: The LSZH series meets the application requirements for smoke, toxicity, and corrosive gas sensitivity.
• Suitable for harsh environments: Suitable for high-temperature, frequent bending, space-limited, or high-reliability industrial, data center, and military applications.
3M wire harness components are a superior choice for engineering design and wiring systems, thanks to their flexibility, high reliability, and a variety of specifications.
Electromagnetic Compatibility (EMC) and Application Fields
The transmission line not only needs to transmit signals but also needs to deal with electromagnetic interference (EMI) / radio frequency interference (RFI).
3M provides shielded or unshielded structure products to meet strict EMC requirements.
When there is a requirement for high signal integrity and system stability, shielded cables or appropriate insulation materials (such as LSZH, polyolefin, etc.) can be chosen.
Application fields include:
Consumer electronics (laptop screens, internal connection lines for mobile devices)
Industrial automation equipment and control systems
Data center and server room internal wiring
Medical equipment and detection instruments
Transportation, aviation, and military equipment
Whether it is lightweight electronic products or high-reliability industrial equipment, 3M wire harness components are up to the task.
Three, selection and compatibility / reference for domestic substitution solutions
Based on application and environment: In scenarios with space constraints, frequent bending or movement, high flexibility flat cables such as 3319, HF365, and HF539 are recommended.
When there are requirements for safety and environmental protection: give priority to the LSZH low smoke halogen-free series.
When high signal integrity or electromagnetic compatibility requirements are present: it is recommended to choose cables with a shielding structure and match with appropriate insulation materials.
Domestic alternative suggestion: It is recommended to use domestic products with specifications similar to 3M wire, but strict mechanical, thermal, and electrical performance verification is required to ensure reliability equivalent to the original factory products.
3M wire harness components, with their high flexibility, diverse structures, environmental standards, and environmental adaptability, have become the foundation of reliable connections in modern electronics, industry, medical, and data facilities. Rational selection and verification of domestic alternative solutions can improve cost control and supply chain flexibility while ensuring performance.
