As modern electronic devices continue to trend towards thinness, miniaturization, and multifunctionality, the performance requirements for internal wiring materials are increasingly high. Particularly in high-density miniaturized devices, it is necessary to ensure high-speed signal transmission while maximizing space savings—this is where the ultra-thin coaxial cable (Micro Coaxial Cable) truly excels. Today, let's take a look at the outstanding applications and advantages of 36AWG ultra-thin coaxial cable in miniaturized devices.
What is a 36AWG ultra-fine coaxial cable?
AWG is the abbreviation for "American Wire Gauge," and the larger the number, the finer the wire diameter.
For example, a 36AWG conductor has a diameter of about 0.127mm, and the overall outer diameter can be controlled between 0.3mm and 0.6mm, making it the "slender representative" in miniature cables. The Micro Coaxial Cable, on the other hand, is a type of cable with a precise structure, extremely fine dimensions, and excellent shielding performance, as well as high-frequency signal transmission capabilities, making it particularly suitable for use inside high-precision electronic devices where space is limited.
Why do miniature devices prefer 36AWG extremely thin coaxial cables?
Super-fine and thin, saving valuable space
In micro-systems such as smartphones, tablets, wearable devices, medical endoscopes, and industrial cameras, the internal space is extremely limited. The ultra-fine 36AWG coaxial cable, with its extremely small outer diameter and high flexibility, can be flexibly inserted between narrow structures, leaving more layout freedom for design engineers and realizing higher integration of the whole machine solution.
High-speed transmission, more stable signal
With electronic devices advancing towards high resolution and high-speed transmission, the impedance consistency and shielding performance of cables become particularly important. 36AWG ultra-fine coaxial cables can significantly reduce signal interference and loss, ensuring high-speed and stable data transmission. In applications such as endoscope camera, industrial camera LVDS/USB3.0 cables, high-definition screen FPC coaxial排线, Micro Coax Cable has become the mainstream solution.
High flexibility, coping with complex routing environments
The 36AWG ultra-thin coaxial cable is designed with multi-strand ultra-fine braided conductors, featuring excellent flexibility, allowing for complex wiring operations such as bending, folding, and winding. It is not prone to breakage and has superior bending resistance, thereby enhancing the overall lifespan and reliability of the equipment.
Excellent shielding, strong anti-interference ability

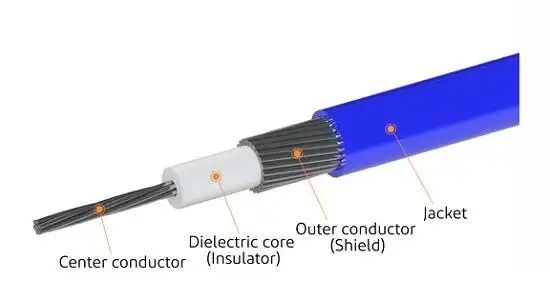

The core advantage of the coaxial structure lies in its multi-layer shielding design. The extremely thin 36AWG coaxial cable is composed of a high-density braid layer and a metal foil composite shield, which effectively inhibits external EMI (electromagnetic interference) and RFI (radio frequency interference), ensuring that multi-channel high-speed signals do not interfere with each other, thereby improving the integrity of the system signals.
As electronic products continue to develop towards thinness, high speed, and intelligence, the 36AWG ultra-fine coaxial cable (Micro Coaxial Cable) is gaining popularity due to its ultra-thin and lightweight design, high-speed stability, flexibility, resistance to bending, and excellent shielding. It is widely used in mobile phones, wearable devices, medical equipment, industry, and other fields, becoming an indispensable key connection solution for modern precision electronic devices.
I am Kunshan Jie Kang Fu Precision Electronics, focusing on the design and customization of high-speed signal cables and ultra-thin coaxial cables for a long time, committed to providing stable and reliable high-speed interconnection solutions to our customers. If you have any related needs or want to learn more, please contact: Yin Manager
18913280527 (WeChat number)。
