Key Support for Industrial Robot "Eyes"—Application Advantages of Micro Coaxial Cable in Wire Harness Systems

In the field of intelligent manufacturing, industrial robots are no longer just the traditional "mechanical arms." Today's robots integrate perception, analysis, and decision-making, capable of achieving high-precision operations in complex environments. One crucial component among them is the high-speed vision system—it serves as the "eyes" of the robot, responsible for capturing environmental information and guiding action execution. To ensure the stable and efficient operation of the vision system, the selection of cables has become an indispensable basic link.

Why are wiring harnesses so crucial?
In high-speed vision systems, the camera needs to transmit the massive image data collected with extremely short delay to the processing unit. If the cable performance does not meet the standard, it may cause various problems:
Signal delay: leads to the mismatch between the image and the control system, affecting the robot's reaction speed.
Data loss: leads to incomplete identification information, and even operation misjudgment.
Insufficient anti-interference ability: External electromagnetic noise may cause distortion or fluctuation in the image.
In high-precision industrial manufacturing, these subtle signal anomalies are amplified, directly affecting production efficiency and product yield rate. Therefore, the harness is not only a transmission medium but also a "hidden guarantee" for the stability of the visual system performance.

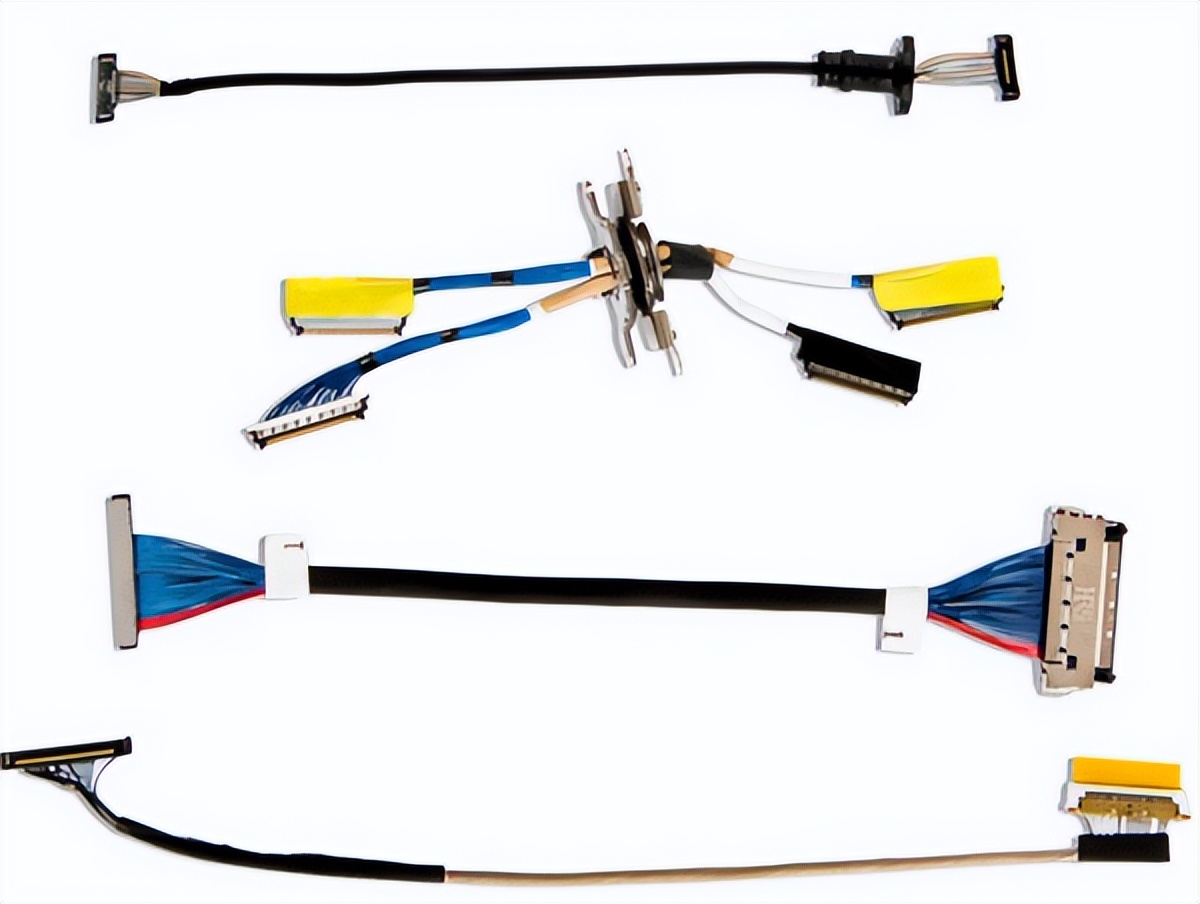

Unique Advantages of Micro Coaxial Cable
Among various types of cables, the extremely thin coaxial cable (micro coaxial cable) has become the preferred solution for industrial robot vision systems due to its high-speed, flexibility, and high reliability:
High-speed transmission performance excellence: supports high-frequency, high-bandwidth signal transmission, ensuring that image data is transmitted in real-time and completely to the processing unit.
Lightweight and high-flexible design: extremely small wire diameter and light weight, allowing free bending in multi-joint motion structures without affecting the robot's motion accuracy.
Excellent anti-interference ability: its coaxial shielding structure effectively suppresses electromagnetic interference (EMI), maintaining clear signals even in environments with intensive motors and inverters.
High durability and reliability: Excellent bending life and mechanical strength, capable of long-term stable operation under high-frequency movement.

Typical application scenarios
For high-speed sorting robots, the visual system must complete object recognition and coordinate positioning within milliseconds. If there is any delay or signal interference in the bundle transmission, it may cause recognition errors, affecting production efficiency.
As for precision assembly robots, their visual positioning accuracy requirements are extremely high. Once the image signal is distorted or there is transmission delay, it will lead to assembly errors and increase the不良率 of the products. It can be seen that the quality of the wiring harness directly determines the operational stability of the entire visual system.

The high-speed vision system not only relies on algorithm optimization and hardware performance improvement, but also cannot do without the support of high-quality cables. The micro coaxial cable, with its advantages of high-speed transmission, flexible wiring, anti-interference, and high durability, has become an indispensable key component in the fields of intelligent manufacturing and industrial robots.
