I-PEX 82440-100B-02-D 10P high-speed signal transmission ultra-thin coaxial cable replacement

A 10Pin ultra-fine coaxial cable assembly solution for high-density, small space applications

With the continuous development of laptops, tablets, display modules, camera modules, AI vision devices, and other miniaturized electronic devices towards thinness and high speed, the space for internal wiring harnesses within the devices is becoming increasingly limited. Traditional wiring harnesses often find it difficult to meet both structural design and high-speed signal transmission requirements simultaneously in terms of connector height, cable exit direction, cable outer diameter, and bending space. Therefore, micro-wiring harnesses with small connectors, high-density terminals, and extremely fine coaxial wire materials are gradually becoming an important connection solution in engineering design.

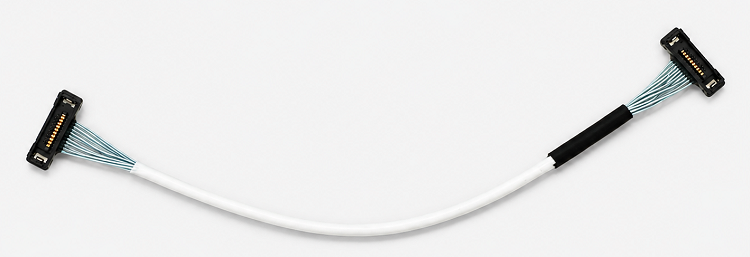

This product introduction is for the I-PEX 82440-100B-02-D specification 10Pin ultra-thin coaxial cable assembly solution, which uses 40AWG Micro-Coaxial ultra-thin coaxial cable, and the connector model used at the cable end is 20373-R10T-06. According to the official I-PEX CABLINE-SS product information, this series adopts a 0.4mm Contact Pitch and Vertical Right Angle structure, and has a Mated Height of 1.65±0.2mm; 10Pin is also one of the Pin Counts provided by the official.

For customers who need domestic substitution, second supplier introduction, supply chain optimization, or reselection of existing products, the key to such products is not just that "the connector can be plugged in," but rather that factors such as connector structural dimensions, terminal arrangement, wire specification, impedance, wire sequence, cable exit direction, bending space, and mass production consistency must be considered simultaneously. Our company specializes in the production and manufacturing of extremely thin coaxial cables and can provide corresponding compatible alternative solutions based on customer product structure and technical requirements; our company can provide: I-PEX 82440-100B-02-D compatible alternative cable solution.

How to solve the height and space limitations of ultra-fine coaxial cable connector?

For structural engineers, the real challenge of extremely thin coaxial cable bundles is usually not the cables themselves, but the three-dimensional space limitations after the "connector+cable" combination. Especially in laptop screen hinges, display modules, camera modules, and ultra-thin devices, the net space between the PCB and structural components is very limited. If the connector height is too high, or if the cable exit direction is unreasonable, it may cause structural interference, assembly difficulties, or even affect the overall thickness of the entire machine.

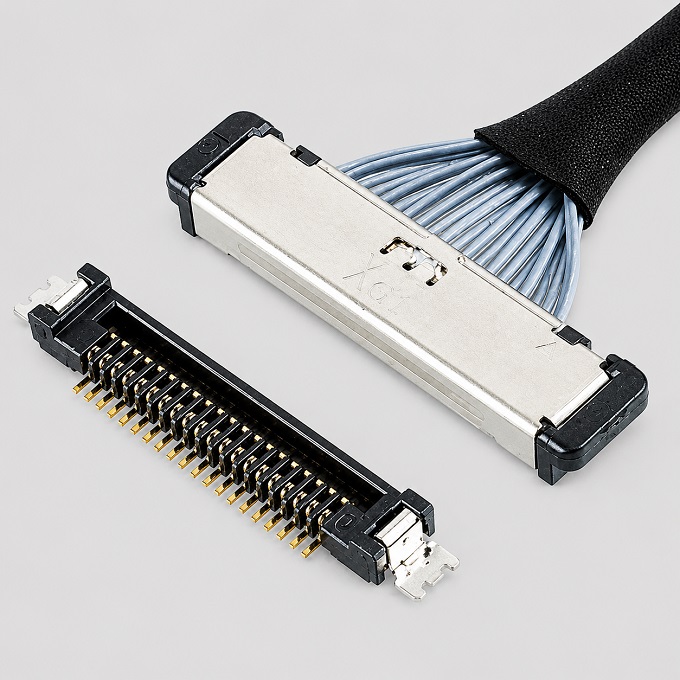

The CABLINE-SS series adopts the Vertical Right Angle connection structure and horizontal cable exit design for such applications. According to official information, its Contact Pitch is 0.4mm and the Mated Height is 1.65±0.2mm, and it emphasizes that the narrow-profile structure is suitable for device design with limited space. For engineers, this means that when performing PCB layout and structural stacking, they can focus on creating three-dimensional space reservations around the connector, taking into account the connector height, insertion and extraction direction, as well as the horizontal cable exit area, rather than designing based solely on the two-dimensional dimensions of the connector's shape.

In the actual process of replacement development, we also suggest that the purchasing and engineering teams should not solely judge based on "the same number of pins and the same connector model." For extremely thin coaxial cable assemblies like 82440-100B-02-D / 10Pin / 40AWG, it is necessary to confirm the connector model, cable specifications, cable length, wire sequence, cable exit direction, and assembly space simultaneously. If the original equipment uses a narrow pivot or ultra-thin structure, it is also important to check the height of the connector assembly and the bending area of the cable. Only by matching the connector, cable, and finished cable assembly structure as a whole can we truly solve the problems of "limited connector height" and "insufficient space inside the device."

In addition, the official data of CABLINE-SS indicates that the Micro-Coaxial Cable series supports AWG36, AWG38, AWG40, and AWG42, among which AWG42 is particularly noted for the need to pay attention to characteristic impedance matching; therefore, for the 40AWG ultra-fine coaxial cable used in this scheme, when designing for high-speed signal applications, it is necessary to verify in combination with the actual line length, impedance requirements, and system signal rate, and cannot be solely judged based on the wire diameter for high-speed performance.

Three, selection and compatibility and alternative solution references and suggestions: from material number to engineering verification

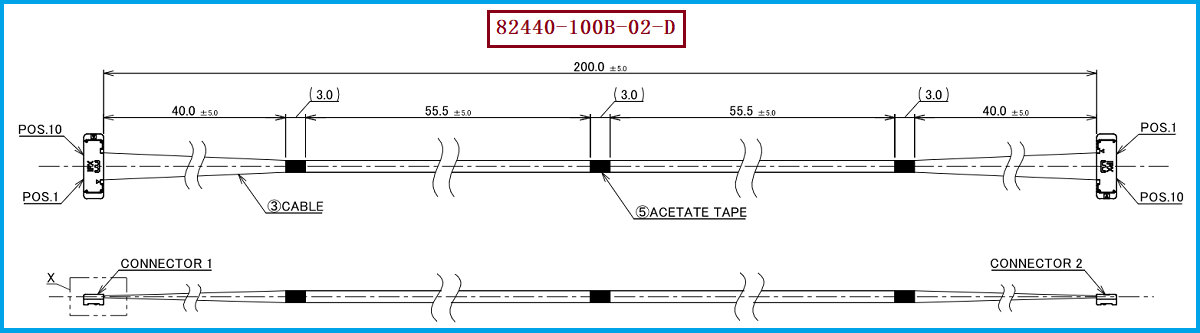

For purchasing personnel and R&D engineers, I-PEX 82440-100B-02-D can serve as the core reference model for this solution. In the product information you provided, this model corresponds to the CABLINE-SS 10Pin ultra-thin coaxial cable scheme, using 40AWG Micro-Coaxial Cable, which is a 200mm specification of the 1-N wire sequence; the official I-PEX product page also lists the 10Pin CABLINE-SS Harness 82440, indicating a length of 200mm and 1-N. Therefore, when seeking compatible alternative products, it is recommended to use "10Pin + 40AWG + 200mm + 1-N + corresponding connector structure" as the specification verification basis for the first phase.

The connector model used at the end of this product line is 20373-R10T-06. I-PEX's current official documentation lists 20373-R10T-06 as CABLINE-SS 10Pin Plug Housing, and the official 2026 compliance documents also list this model. For the development of alternative harnesses, connector matching not only requires confirmation of appearance and pin count but also further verification of insertion/removal fit, terminal contact, retention force, cable crimping/termination process, and consistency of finished product dimensions.

From a procurement perspective, if the customer already has I-PEX original cable harness supply but wishes to add a second supplier or reduce the risk of a single-source supply chain, the alternative evaluation can be carried out according to the path of "original model → connector model → cable specification → length → wire sequence → electrical performance → mechanical dimensions → sample verification → small batch verification → mass import." Especially for high-speed signal applications, it is recommended to actually verify signal integrity indicators such as impedance, insertion loss, return loss, and crosstalk at the sample stage; for products sensitive to structural space, it is necessary to conduct installation compatibility testing simultaneously.

Our company can provide I-PEX 82440-100B-02-D compatible alternative cable harness solutions. We can develop and produce extremely thin coaxial cable harnesses around the 10Pin CABLINE-SS application requirements. We can further confirm the wire length, wire sequence, connector, cable material specifications, and finished product structure requirements according to the actual needs of customers. For customers who need domestic substitution, second supplier introduction, or cost reduction development of existing cable harnesses, we can provide supporting services from sample making to mass production.

It should be particularly noted that the "compatibility replacement" should ultimately be based on the actual mechanical, electrical, and reliability verification results of the customer's equipment. Even if the connector model, pin count, and wire material AWG are consistent, it cannot be directly concluded that the two finished harnesses are completely equivalent under all application conditions. Therefore, it is recommended to use the customer's original sample, 2D/3D drawings, wire sequence definition, and test specifications as the final confirmation basis during engineering introduction.

Four, engineering application value and product advantages of 40AWG ultra-fine coaxial cable束

For 10Pin high-speed, miniaturized connection scenarios, the 40AWG ultra-fine coaxial cable can achieve a high wiring density within a limited space. In conjunction with micro connectors like CABLINE-SS with a 0.4mm pitch, it can meet the comprehensive requirements of "miniaturized connection + high-speed signal transmission" within the device. I-PEX official materials position CABLINE-SS as an ultra-fine coaxial cable connector for high-speed data transmission, narrow design, and high-reliability contacts, and specify a maximum application capability of 16Gbps/Lane; it also supports various pin counts, including 10Pin.

For engineers, the key of this plan is not simply to pursue "the thinner the line, the better," but to achieve a reasonable balance between connector size, cable flexibility, signal integrity, assembly reliability, and production consistency within the limited space of the equipment. As the specified wire specification of this plan, 40AWG can be combined with the actual high-speed signal requirements of the equipment for impedance and signal integrity design; if the product needs to pass through a rotating shaft, narrow passage, or frequently bent areas, it is also necessary to fully consider the cable bend radius, fixing method, and stress release in the stage of structural design.

For purchasers, adopting a mature ultra-fine coaxial cable assembly alternative can also shift the supplier selection from mere "connector procurement" to a comprehensive evaluation of "cable assembly supply capability," including connector matching capability, ultra-fine coaxial cable termination capability, automated production capacity, dimensional control capability, batch consistency, and quality traceability. For customers already using the I-PEX CABLINE-SS platform, this approach is particularly suitable for second supplier development and domestic substitution projects.

The core specifications of the product can be summarized as follows: Product material number/model: I-PEX 82440-100B-02-D; Connector model: 20373-R10T-06; Cable specification: 40AWG Micro-Coaxial Cable; Application direction: compatible and alternative for 10Pin CABLINE-SS ultra-fine coaxial cable assembly.

I-PEX 82440-100B-02-D is a 10Pin ultra-thin coaxial cable solution for miniaturized and high-density electronic device connection applications, with its core focus on 40AWG ultra-thin coaxial cables, miniature connectors, limited installation space, and high-speed signal connections. For enterprises that need to replace domestic products, develop second-source suppliers, optimize the supply chain, or replace existing products, what is truly valuable is not simply copying raw material numbers, but a complete engineering match around connectors, cables, cable sequence, length, mechanical space, and electrical performance.

Relying on our advanced manufacturing capability for extremely thin coaxial cable assemblies, our company can provide compatible alternative cable development and production services for I-PEX 82440-100B-02-D. We can also tailor the connector, 40AWG ultra-thin coaxial cable, cable length, wire sequence, and finished product structure to meet the customer's actual application. We offer ultra-thin coaxial cable assembly connection solutions for laptops, display devices, camera modules, AI vision equipment, and other space-limited electronic products.

I am【7A Electronic Network】Has mature production and engineering R&D experience in the field of ultra-fine coaxial cable bundles, can assist in model matching and structural substitution, please contact: Manager Zhang18913228573 (WeChat number).
