I-PEX 82879-100B-02-D 10P high-speed signal transmission ultra-thin coaxial cable alternative

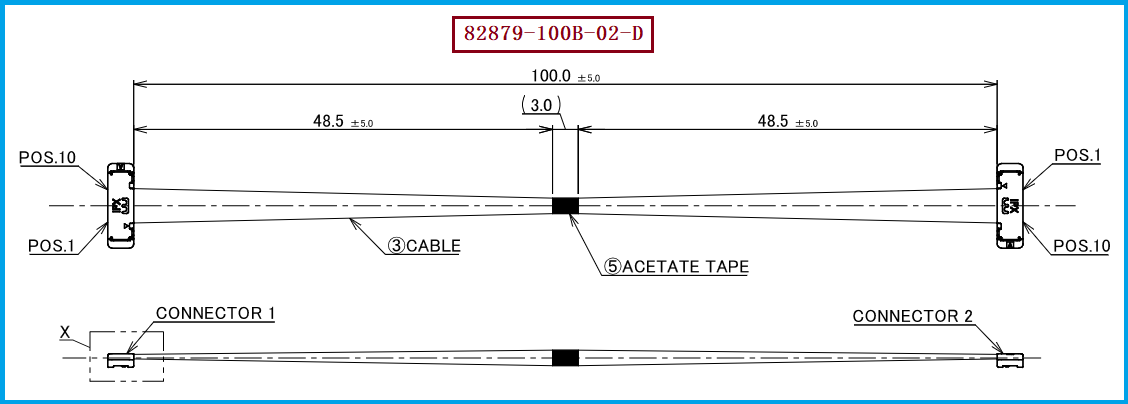

First, start with the model and drawings: first confirm whether "the replacement is indeed the same harness model."

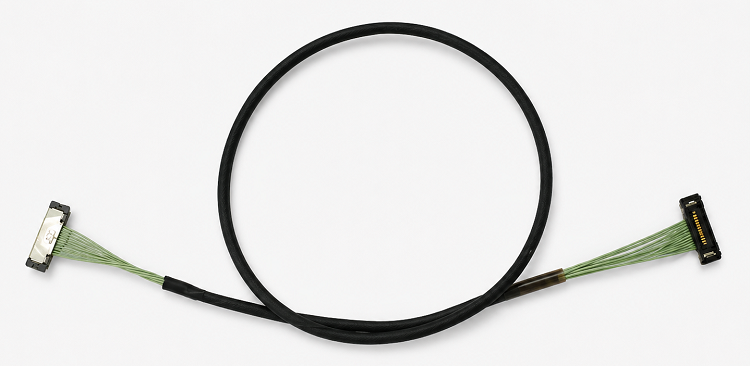

For engineers and procurement personnel, when looking for domestically produced alternatives to extremely fine coaxial cable assemblies, the first thing to confirm is not the price, but whether the product model, connector, cable specification, length, and wire position definition can correspond. Taking the I-PEX CABLINE®-SS series as an example, the target product model in this article is I-PEX 82879-100B-02-D, which belongs to a 10 Pin extremely fine coaxial cable assembly, using Micro-Coaxial Cable with AWG 40 specification, with a nominal length of 100mm, and wire position defined as 1-N. The official I-PEX product page also clearly lists 82879 as a cable assembly model of CABLINE-SS 10 Pin, 100mm, 1-N.

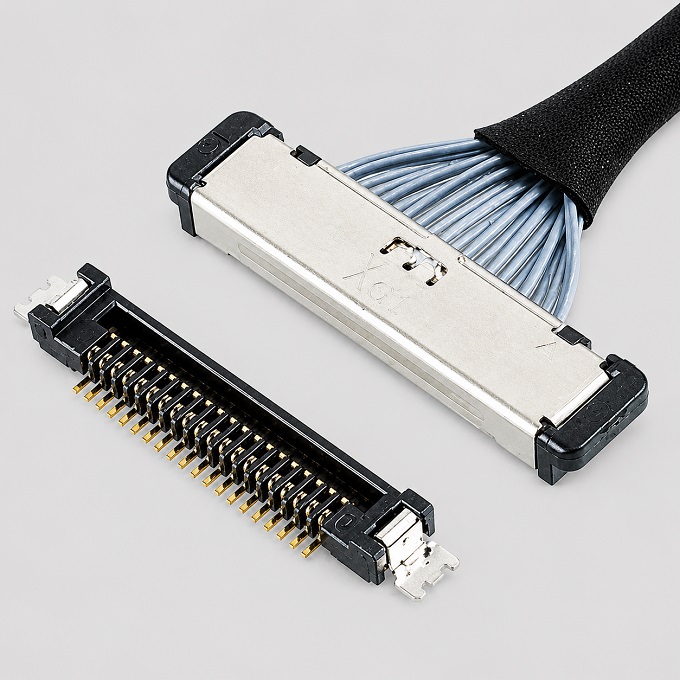

From the wire harness connector perspective, the connector model used in this harness is 20373-R10T-06. The official I-PEX documentation lists 20373-R10T-06 as CABLINE-SS 10 Pin Plug Housing, while the related Plug Cable Assembly model is 20380-R10T-06, with a matching 10 Pin Receptacle of 20374-R10E-31. For engineers, this means that replacement development cannot be limited to merely resembling "10 Pin, 100mm" in appearance; it also requires focusing on confirming the connector structure, Pin count, wire direction, wire sequence, and the matching relationship with the original equipment end; for purchasers, "82879-100B-02-D + 20373-R10T-06 + AWG40 + 1-N" can be considered as an important basis for supplier quotation and technical confirmation.

How to evaluate domestic substitution? It cannot only be seen from the price, but also the compatibility of connectors, AWG, and wire positions.

"How to evaluate the domestic alternative solution for extremely fine coaxial cable束?" This is a common issue that engineers face when introducing alternative suppliers. For such high-density cable束, it is recommended to first check for specification consistency: whether the target alternative product also uses AWG 40 extremely fine coaxial cable, whether the connector can match the original配套 structure, whether the 10 cables are connected according to the 1-N cable position definition of the original product, and whether the overall length, terminal shaping, and fixation method meet the original design requirements. Especially for the 1-N cable sequence, it cannot be simply understood as a common 1-1 straight-through cable束; I-PEX officially provides both 1-N and 1-1 types of CABLINE-SS cable束, so it is necessary to clarify the cable sequence when purchasing.

In addition, attention should be paid to signal transmission-related indicators. The I-PEX CABLINE-SS series adopts a 0.4mm Contact Pitch and Vertical Right Angle structure, combined with a height of about 1.65±0.2mm, and supports AWG36, AWG38, AWG40 Micro-Coaxial Cable specifications. The official high-speed performance reference test uses AWG40, 45Ω, 100mm wire materials, and demonstrates the highest 16Gbps/Lane application. It needs to be particularly pointed out that the wire specifications, structural dimensions, and electrical requirements in the specific 82879-100B-02-D drawings should be taken as the final basis according to the corresponding product drawings. Therefore, during the domestic substitution evaluation stage, engineers should combine mechanical compatibility, electrical performance, signal integrity, and production consistency to make judgments, and purchasing personnel should require suppliers to provide samples corresponding to the original specifications, specification confirmation materials, and necessary test data. This can prevent situations where "the size can be installed, but the high-speed signal performance does not match."

Three, selection, compatibility, and alternative solution reference and suggestions: Establish corresponding solutions around 82879-100B-02-D.

For customers seeking domestic alternatives to the CABLINE-SS series products, the I-PEX 82879-100B-02-D can be used as a clear target model for specification comparison. The core identification conditions for this model can be summarized as: 10 Pin, Micro-Coaxial Cable, AWG40, 100mm, 1-N, with the cable end connector being 20373-R10T-06. I-PEX's official current documentation also lists the CABLINE-SS 10 Pin options with different lengths of 100mm, 200mm, 300mm, and two wiring schemes of 1-N and 1-1. Therefore, when selecting an actual model, it is not sufficient to rely solely on the connector model; it is also necessary to simultaneously confirm the wire length and wire position definition.

For engineering projects, if the original equipment is already using 82879-100B-02-D, it is recommended to proceed with the "model confirmation → connector confirmation → AWG confirmation → length confirmation → 1-N wire sequence confirmation → sample verification → batch import" approach during the alternative evaluation stage. In particular, the connector model 20373-R10T-06, wire AWG40, and 1-N wire position definition should be specified as clear technical conditions in the quotation materials. Our company specializes in the production and manufacturing of extremely thin coaxial cable assemblies and can match specifications and develop alternatives based on the original model, drawings, and application requirements provided by the customer. Our company can provide: I-PEX 82879-100B-02-D compatible alternative cable assembly solutions to help engineers and procurement personnel find appropriate domestic alternative supply solutions based on the existing equipment structure and connection requirements.

Four, from sample verification to bulk procurement: making domestic substitution truly meet engineering import conditions

For extremely thin coaxial cable assemblies, the final judgment of domestic substitution cannot stop at "whether it can be plugged in," but should enter the stage of actual sample verification and batch consistency verification. Engineers can focus on confirming the mating state of connectors, the shape of the cable assembly, the direction of the outgoing lines, length tolerance, wire sequence, electrical conductivity, and the performance of high-speed signal transmission; procurement personnel can further pay attention to the supplier's production capacity, delivery time, batch consistency, quality control, and continuous supply capability. The I-PEX CABLINE-SS itself is positioned for high-speed, miniaturized extremely thin coaxial cable connection applications, and its official data shows that this series has features such as 0.4mm spacing, supporting various pin counts, and Micro-Coaxial Cable, so the development of substitute products also needs to be centered around these core requirements.

For customers with domestic substitution needs, the I-PEX 82879-100B-02-D can serve as a typical 10 Pin, AWG40, 1-N thin coaxial cable substitution development project. Our company can provide corresponding thin coaxial cable substitution solutions based on the customer's product model, connector model, wire specification, wiring sequence, and length requirements. We can also further communicate around sample confirmation, specification matching, and mass production requirements. For engineering and procurement teams that need to reduce procurement costs, expand supply channels, or find stable alternative suppliers, adopting the "original model parameter decomposition + connector matching + wire specification confirmation + wiring sequence confirmation + sample testing + mass validation" method is more conducive to establishing a clear and executable domestic substitution evaluation process.

I-PEX 82879-100B-02-D is a 10 Pin ultra-thin coaxial cable in the CABLINE-SS series, with core specifications including Micro-Coaxial Cable, AWG40, 100mm, 1-N, and its cable end connector model is 20373-R10T-06. For engineers and procurement personnel, when evaluating domestic alternatives for such products, a comprehensive confirmation should be made from multiple dimensions such as connector compatibility, AWG wire, cable length, wire position definition, mechanical structure, and signal transmission, rather than simply comparing procurement prices. Our company can provide I-PEX 82879-100B-02-D compatible alternative cable solutions, offering product manufacturing and solution support to customers with needs for domestic alternatives, second supplier development, and ultra-thin coaxial cable customization.

I am[7A Electronic Network]We specialize in providing customized and compatible replacement services for high-speed ultra-thin coaxial cable assemblies such as eDP, MIPI, USB3.X/4, LVDS, etc. If you need technical support, please contact Manager Zhang.18913228573 (WeChat number).
