3M 8MS8-1DG11-0.50 cable analysis and alternative solutions

In industrial automation, precision equipment, and electronic systems, harness components not only undertake the basic functions of signal and power transmission but also directly affect the stability and reliability of the system. As a globally renowned brand, 3M has a profound technical accumulation in the field of connection solutions, and its 8MS8 series harnesses are widely used in high-density, high-reliability scenarios. This article will analyze the model 8MS8-1DG11-0.50 and discuss the key points for selection and domestic substitute solutions in combination with actual applications.

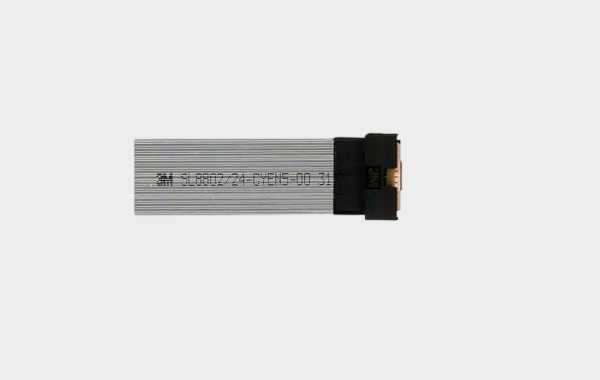

Product Analysis: Cable Features of 8MS8-1DG11-0.50

8MS8-1DG11-0.50 belongs to the 3M Mini Stack (Mini Stack) connection system, which is mainly used in electronic devices with limited space but high connection density requirements. Its core features include:

Tight structure design: Suitable for high-density PCB layout, space-saving

Stable electrical performance: Ensures signal integrity, suitable for high-speed data transmission scenarios

Pre-assembled harness components: reduce on-site assembly time, improve installation efficiency

High reliability connection: Suitable for industrial equipment, medical electronics and automation control systems

In addition, this type of harness usually adopts standardized interface design for quick matching with corresponding connectors, reducing the complexity of system design.

Two, selection, compatibility and alternative solution reference and suggestions (key)

In actual projects, when selecting or replacing this type of harness, attention should be paid to the following aspects:

Key selection parameters

• The position and spacing must match the original system completely.

 Line length specifications: Different lengths such as 0.50m should be selected according to layout requirements

• Current and voltage ratings: Ensure they meet the system load requirements

 Environmental Requirements: Temperature, Vibration, and Durability Requirements

Compatibility judgment

Alternative products must achieve compatibility in the following aspects:

 Mechanical dimensions and interface definitions are consistent.

  Insertion and extraction life matching with lock structure

Electrical performance (impedance, contact resistance) is comparable or superior.

国产替代建议

Under the current supply chain environment, domestic substitution has become an important trend. For products similar to the 8MS8 series, it is recommended to prioritize:

Micro high-density connector R&D capable domestic manufacturers

Supplier supporting customized wiring harness processing and rapid delivery of small batches

Provide a complete test report and reliability verification for the product

Suggest to perform the following verification process before importing alternatives:

Sample Matching Test (Mechanical + Electrical)

• Small batch trial production validation

• Long-term reliability tests (such as vibration, temperature rise)

Through systematic evaluation, cost optimization and supply security can be achieved while ensuring performance.

The 3M 8MS8-1DG11-0.50 cable, with its high-density design and stable performance, has wide application value in the field of high-end electronic connections. However, with the continuous progress of domestic connection technology, alternative solutions for such products are becoming increasingly mature. Through scientific selection and rigorous verification, not only can performance be benchmarked, but supply chain flexibility and cost competitiveness can also be effectively enhanced.
