With the continuous upgrade of electronic test equipment and automated manufacturing, high-performance and high-compatibility cables have become an indispensable basic component for test fixtures and adapter boards. Among various brand products, the cable components from Aries Electronics have gained widespread recognition in the fields of testing, communication, instrument and equipment interconnection due to their rigorous design, high signal fidelity, and excellent industrial adaptation capabilities. Aries Electronics was established in the 1970s and is a professional manufacturer focusing on interconnection technology (including connectors, cable components, and customized connection solutions). Its products cover a wide range of connectors and cable components, including IC test sockets, DIP cable components, etc., and are suitable for application scenarios that require high-speed signal transmission, stable electrical performance, and diverse fixture platforms.
Product Core Advantages: Compatibility and Performance Assurance
In the application of test fixtures and adapter boards, the connection cables must meet the following key performance requirements:
High signal integrity and low interference loss ensure stable transmission of high-speed data and control signals during the connection process.
Multi-interface type adaptation, supporting common PCB ports such as DIP, IDC for connection with test equipment.
Industrial-grade electrical stability, maintaining stable electrical characteristics under different temperature and humidity environments.
Reliable mechanical structure, sturdy and durable, capable of withstanding repeated insertion and removal as well as tooling adjustment.
Aries Electronics offers various cable components with excellent materials and processes, which can be applied to critical stages such as automatic test equipment (ATE), adapter board interconnection, and equipment development and debugging. It is one of the preferred options for implementing high compatibility test solutions.
Two, selection and compatibility and alternative solutions reference and suggestions
When selecting Aries cables and connection solutions, it is recommended to follow the following steps:
Specify interface specifications and pitch requirements

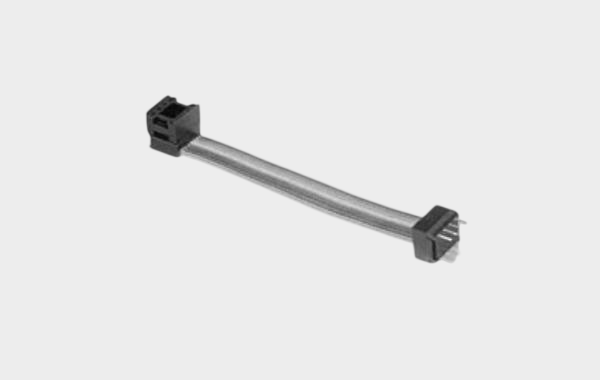

For example, when selecting a DIP 0.050" (1.27 mm) spacing cable component, it must be ensured that it matches the interface of the target adapter board.
Evaluate signal frequency and transmission requirements
In high-frequency/high-speed data environments, pay attention to the attenuation index of the connecting cables and anti-crosstalk performance to avoid signal distortion.
Compatibility verification test
Before mass procurement, it is recommended to conduct simulation connection tests to confirm the mechanical fit and electrical consistency.
Domestic alternative solutions for reference
With the enhancement of domestic manufacturing capabilities, multiple domestic brands have passed strict electrical performance tests and performed closely or on par with international brands in terms of contact resistance, insulation strength, and voltage resistance. Some domestically produced substitutes are suitable for medium to medium-high speed signal scenarios, which can effectively reduce procurement costs and shorten the supply cycle.
It is recommended to prioritize original factory or verified alternative products in non-ultrahigh frequency or highly customized applications (such as >5 GHz or ultra-high density microstructured cables), and clearly define technical standards and testing verification procedures to ensure the stable implementation of the solution.
Aries Electronics' connection cable components have significant advantages in terms of compatibility, signal stability, and industrial application adaptability, especially suitable for use in test fixtures, adapter board interconnections, and high-speed control/data applications. In the process of actual scheme design and procurement, precise selection and test verification based on application requirements is the key to ensuring terminal reliability. At the same time, the maturity of domestic substitute solutions also provides new choices for optimizing procurement costs and supply chain efficiency.
We are continuously delving into the research and development of domestic high-performance cable and connector alternative solutions, and the promotion of their market applications. If you are interested in the domestic alternative products for Aries Electronics brand cables, are evaluating for procurement, or hope to discuss customized application solutions, please contact: Manager Zhang.
18665383950, same number on WeChat). We look forward to creating efficient and interconnected industrial application solutions with you!
