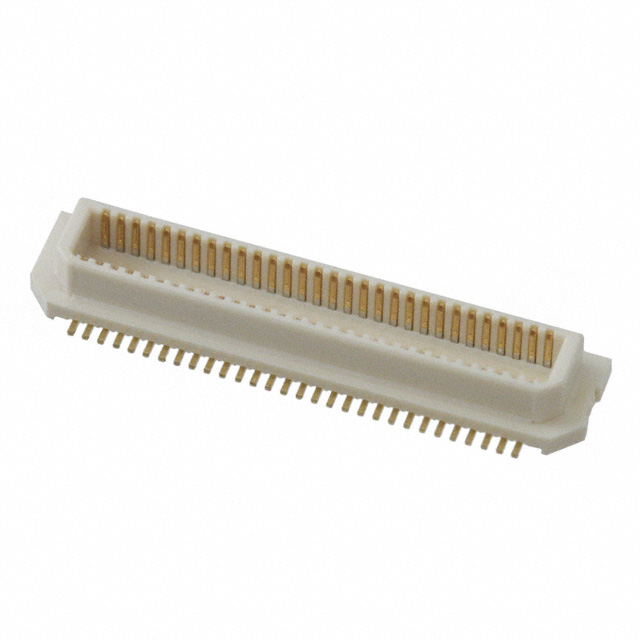

Panasonic connector - Provide a product overview of the Panasonic AXK6A2347YG connector
 | Manufacturer | Panasonic |
| Manufacturer Part Number | AXK6A2347YG | |
| Product Description | CONN HDR 120POS SMD GOLD, 120-position connector plug, shell contact surface mount type gold plated |
Panasonic connector - Provide product attributes of Panasonic AXK6A2347YG connector
| Type | Description |
| Category | Connector, interconnection device |
| Rectangular connector | |
| Array, edge type, sandwich type (plate-to-plate) | |
| Manufacturer | Panasonic Electric Works |
| Series | P5K |
| Connector type | Connector, jacketed contact |
| Needle count | 120 |
| Spacing | 0.020"（0.50mm） |
| row numbers | 2 |
| Installation type | Surface Mount Technology |
| Feature | - |
| Contact surface treatment | Gold plating |
| Surface treatment thickness of contact tips | - |
| Combined stacking height | 3mm |
| Board height | 0.094"（2.40mm） |
Panasonic connector - Provide a brief introduction to the Panasonic AXK6A2347YG connector product (series)
Panasonic AXK6A2347YG is a high-density 120-bit board-to-board connector belonging to the P5K series, designed specifically for applications requiring high-speed transmission and compact layouts. This product features an overmolded contact type connector structure, with excellent mechanical strength and electrical performance, suitable for system designs with high requirements for connection stability. The pitch is 0.50mm, with a double-row arrangement, effectively improving signal transmission density while saving PCB space. The connector supports a mating stack height of 3mm, with a board height of 2.40mm, to meet the internal layout requirements of various industrial and consumer electronic devices. The surface mount technology is used, facilitating automated SMT production, and the contact surface is gold-plated, effectively enhancing oxidation resistance and electrical reliability, making it an ideal solution for high-performance signal connections and widely applicable in fields such as embedded systems, industrial control, communication equipment, and more.
Panasonic connector - Provide Panasonic AXK6A2347YG connector documentation and media:
| Resource type | Link |
| Specification sheet | Please contact the contact person below the article page to request. |
Panasonic connector - Provides official Panasonic AXK6A2347YG connector and related specifications for replacement products.
We focus on the stock supply of (Panasonic) brand connectors and are committed to providing customers with high-quality and reliable connection solutions. Our products include original genuine products and high-performance alternatives, which have been strictly tested to ensure stability and efficiency. Welcome to contact us through the contact information below on the document page!
